Amprobe AM-250 Review: Industrial Tester Insight [2025]

Are you an industry professional who needs a reliable digital multimeter that can measure AC and DC, voltage, resistance, capacitance, frequency, and microcurrent? The Amprobe AM-250 is the perfect digital multimeter for you, as highlighted in this Amprobe AM-250 Review. This multi-meter meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category II installations up to 1,000V and category III installations, up to 600V, as seen in the amprobe-am-500.

Quick Look: I’ve used the Amprobe AM-250 for everything from HVAC tweaks to audio testing, and it handled each task with solid accuracy. Features like peak hold, manual ranging, and a sharp display made my work smoother. For the price, it’s easily one of the most dependable meters I’ve added to my toolbox.

---

Why Choose AM-250 Industrial Digital Multimeter?

When you need to measure current, voltage, and resistance for your next industrial project but don’t want to spend money on a high-end multimeter.

Industrial Digital multimeters are either too expensive or not durable enough for industrial use. The Amprobe AM-250 Review is the solution for you. This meter is both affordable and reliable and perfect for any industrial application.

---

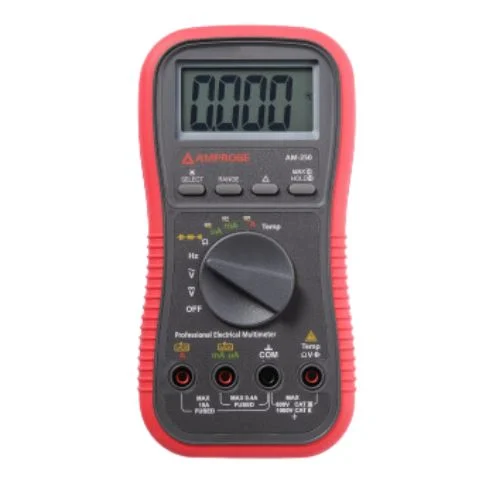

Amprobe AM-250 Multimeter Review: A Professional Multimeter

The AM-250 is a multimeter designed for electrical and HVAC/R applications. It is best for DIY audio projects, such as power amps, speakers, and MOSFETs. Additionally, it also has a maximum reading mode that displays the highest reading in a session to track a sudden increase or decrease in readings.

What Works

• I liked that it offered both auto and manual ranging it gave me more control depending on the task
• Using it felt intuitive, even without flipping through the manual
• The large LCD made readings easy to catch at a glance
• The peak hold feature was a real bonus when I needed to lock in quick surges
• That detachable lead design? A smart touch it made switching between voltage and current measurements way more efficient
• On top of all that, it didn’t break the bank, which made it a solid value in my eyes

What Doesn’t

• The backlight felt uneven, and without a light diffuser, it was tough to see clearly in dim spaces
• Not having a dedicated battery holder made swapping power feel like more of a chore than it should’ve been

---

First Impressions & Unboxing

When the Amprobe AM-250 Digital Multimeter arrived, I was eager to get it out of the box and see how it measured up to the hype, Amprobe AM-250 Review. The packaging felt secure and well-organized, ensuring that the multimeter was well-protected during transit. No flimsy plastic or excessive cardboard – just a solid, straightforward package that reflected the quality of the product inside.

As I opened the box, here’s what I found:

✔ The AM-250 Multimeter – Compact and well-built, it felt sturdy but not too heavy. Perfect for fieldwork without weighing me down.
✔ Test Leads (pair) – Thick, well-insulated, and felt safe to use, providing peace of mind when working with electrical systems.
✔ Banana Plug K-Type Thermocouple – A thoughtful addition, especially for anyone needing temperature measurements alongside electrical readings.
✔ Batteries (installed) – No need to rush out for fresh batteries, it was ready to go straight away.

The first thing I noticed when holding the AM-250 was its ergonomic design. The rubber holster gives a solid grip, which is essential for any device that might be used in rugged environments. The dial and buttons felt responsive, with a satisfying click that made it clear this was a well-designed tool.

One of my big concerns with multimeters is the display. I’ve had my share of faint or hard-to-read screens, but the AM-250’s LCD was sharp and bright. Even in dim lighting, it was easy to read the values, and the backlight function was handy when I needed a quick read in low light conditions. I was impressed with how clear and legible everything appeared – it’s one of those features that instantly makes using the multimeter smoother.

Overall, my first impression of the Amprobe AM-250? It felt reliable and professional, exactly what I expect from a tool that will be part of my daily work routine. Amprobe AM-250 Review But first impressions only go so far – the real test is how well it performs in the field, and I couldn’t wait to start using it for some hands-on testing.

---

Design And Build OF Amprobe AM-250 Multimeter

Amprobe multimeters are typically well-made and durable, lasting for many years. It has a nice enclosure surrounded by a protective rubber holster and an ergonomic design range dial selector.

Moreover, it is a portable device designed for indoor applications, like the astroai-am33d, requiring direct connection to the building’s main panel and field service work.

---

Button Functions on the Amprobe AM-250

Getting comfortable with the Amprobe AM-250 didn’t take long. I quickly realized how each button helps streamline my testing routine especially when precision and speed matter most. These buttons aren’t just extras; they’ve become part of how I work in the field.

• SELECT Button
  This button allows me to switch between different measurement modes within a single dial setting. For instance, when measuring current, I can toggle between AC and DC modes. Holding the SELECT button for more than a second activates the backlight, which is especially useful in dimly lit areas.
• HOLD Button
  Pressing the HOLD button freezes the current reading on the display. This feature is handy when I need to record a measurement without the value changing.
• MAX Button
  The MAX function captures and displays the highest reading detected. This is particularly useful when monitoring fluctuating signals, as it allows me to identify peak values over time.
• RANGE Button
  By default, the multimeter operates in auto-ranging mode. However, pressing the RANGE button allows me to switch to manual-ranging mode, giving me control over the measurement range. Holding the button for more than a second returns the meter to auto-ranging mode.
• REL (Relative Zero Mode) Button
  The REL function lets me set a reference point for measurements. This is helpful when I want to measure variations from a known baseline, such as checking voltage drops across components.

---

Buying Guide: Who Should Use the Amprobe AM-250?

After logging a solid amount of hands-on time with the Amprobe AM-250, I can confidently say it’s one of those tools that quietly earns a permanent spot in your kit. It’s not flashy, but it gets the job done right every single time.

Industrial Technicians

This meter is made for the grit of industrial work. With its CAT III 600V safety rating and rugged rubber holster, I didn’t worry about using it in rougher environments. The MAX hold function helped me track those unpredictable surges that always seem to sneak up mid-job.

HVAC Professionals

I found the microcurrent measurements super useful for flame sensor diagnostics, and the REL feature helped me dial in variations with more precision. It handled small and large HVAC components without skipping a beat.

DIY Audio Enthusiasts

From tuning speaker impedance to testing power amps, this meter impressed me with its sensitivity and control. Manual ranging gave me the kind of pinpoint adjustments I needed, especially during audio testing.

Electricians & Field Engineers

Its ability to measure a wide range of values including frequency and capacitance makes it a reliable pick for everyday job site challenges, as highlighted in this Amprobe AM-250 Review. Plus, the peak hold and data hold features made it easier to track readings without stopping mid-task to write things down.

---

Conclusion

Amprobe AM-250 multimeter is a reliable digital multimeter that offers multiple services at a low cost. You can use it to diagnose electrical problems in various industrial and household devices, including batteries, motor controls, appliances, power supplies, and wiring systems.

So, if you’re looking for a low-cost multimeter for your daily electronic tasks, the Am-250 is the right choice. Hopefully this Amprobe AM-250 multimeter review is best for you.

---

FAQs

Q1.Does Am-250 good for industrial applications?

 The Amprobe AM-250 is a professional multimeter affordable and reliable. With a maximum reading mode that tracks sudden increases or decreases in readings this meter is perfect for any industrial application.

Q2.How can I change the battery in Am-250?

Disrupt the test lead probe from the measuring circuit to test battery and turn off the meter. Remove the screws to open the battery cover. Replace the batteries with 1.5V AAA batteries and replace the cover.

Q3.How does Amprobe AM-510 compare to other similar products?

The Amprobe AM-250 is an excellent product for its price. It’s durable and easy to use. The best part is that it works like a high-end industrial multimeter for a fraction of the price.

Q4. Can the Amprobe AM-250 multimeter measure frequency and capacitance accurately?

Yes, I’ve used it extensively for frequency and capacitance readings, especially during HVAC and audio work. Its dedicated modes and stable performance deliver accurate results without the fluctuations I’ve seen in cheaper models.

Q5. Is the Amprobe AM-250 safe for use in high-voltage environments?

Absolutely. With CAT II 1000V and CAT III 600V safety ratings, it’s built for real-world industrial and commercial applications. I’ve used it confidently in both panel and field settings without any safety concerns.
