When it comes to solar panels, there is a lot of information to take in. But one of the most important things you need to know is how to test them. In this blog post, I am going to teach you how to test a solar panel with a multimeter. This will not only helps you in assessing the life of your solar panel but also in its maintenance.
Types of Solar panels:
There are two types of solar panels- monocrystalline and polycrystalline.
Monocrystalline solar panels: These are made out of single-crystal silicon. They are more efficient in conversion as compared to polycrystalline solar panels.
Polycrystalline solar panels: These are made out of multiple silicon crystals. They are less expensive as compared to the monocrystalline solar
Tools required for solar panel testing
Before starting the testing process, it is important to have all the necessary tools.
- Multimeter
- Plier
- Screw Driver
- Wire Stripper
- Solar Panel
How to test a solar panel with a multimeter
There are two ways of testing solar panels- an open circuit voltage test and a short circuit current test.

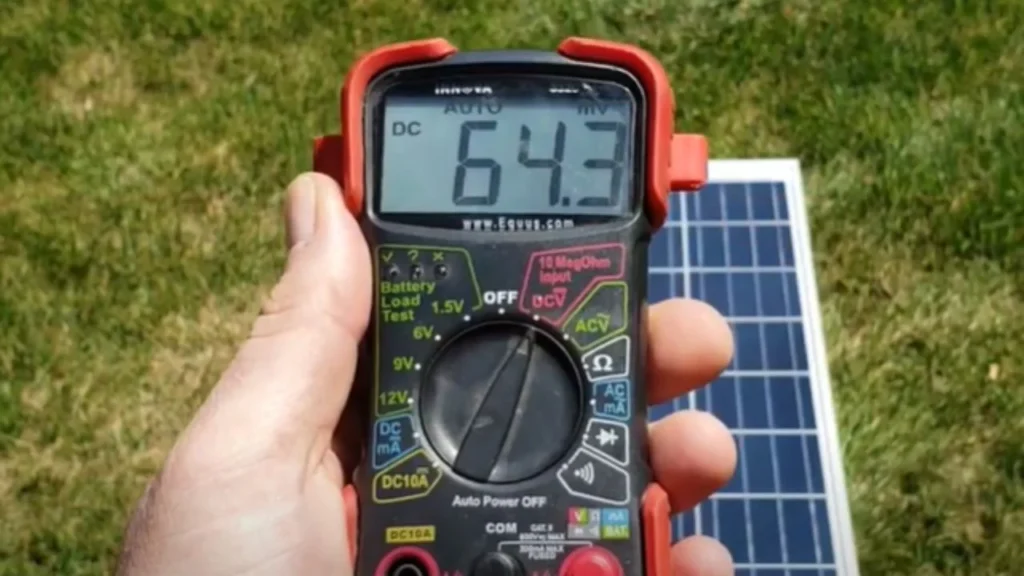

Open circuit voltage test:
- Set the multimeter to the “DC Voltage” mode and connect the leads to the terminals of the solar panel.
- Always make sure that you have connected the test leads in their respected slots. Red probe in "V" and Black probe in (Com).
- The reading you get on the multimeter is the open-circuit voltage of the solar panel.
- If the connecting cable or lead is longer than 10m then one or two voltages may drop due to wire resistance. Therefore it's better to test the solar panel by keeping it close to the multimeter.
- Make sure that there is no load on the solar panel. If you have choose any multimeter for home or DIY use then i have made a list of best multimeter for home use.
Short circuit current test:
- Set the multimeter to the “DC Current” mode and connect the leads in series with the solar panel.
- Again, make sure that you have connected the test leads in their respected slots. Red probe in "A" and Black probe in (Com).
- The reading you get on the multimeter is the short-circuit current of the solar panel.
- If you see a negative sign (-) before the current value, it means that the solar panel is not generating enough power.
- You can also use a clamp meter to check the current flow in the solar panel. If you don't know about short circuit tracing then I have made a separate guide on how to find short circuits with multimeter.
Benefits of solar panel testing
Solar panels are a great way to generate power. But, like any other electrical equipment, they need to be regularly tested and maintained. By testing your solar panels, you can ensure that they are working properly and are able to generate enough power. There are five major benefits of solar panels testing.
1) Helps in assessing the life of solar panels:
The number of years a solar panel will last depends on a variety of factors such as the type of solar panel, environment, and maintenance. However, by testing the solar panel regularly, you can get an estimate of its life.
2) Helps in detecting problems early:
By testing the solar panel regularly, you can detect any problem early on. This will help you in getting the problem fixed before it leads to major damage. It is also known as the preventive maintenance of solar panels.
3) Helps in maintaining solar panels:

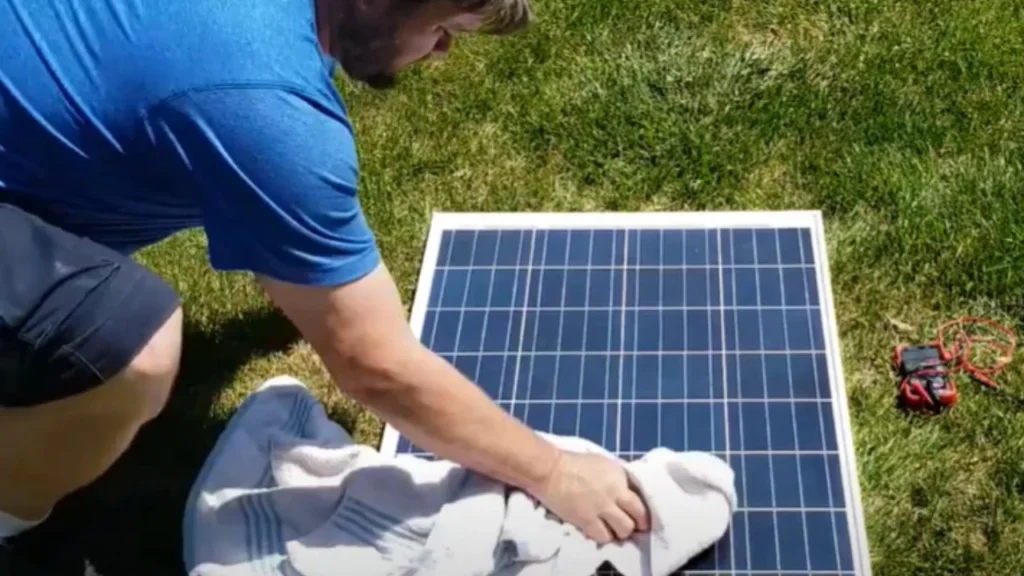

Solar panels need to be regularly cleaned and maintained. By testing the solar panel, you can check if it is generating enough power. If not, then you need to clean the solar panel and check for any damage.
4) Helps in increasing the efficiency of solar panels:
As we all know, solar panels are not 100% efficient. By testing the solar panel regularly, you can check if it is working at its optimum level. If not, then you need to take measures to increase its efficiency.
5) Helps in reducing the cost of solar panels:
It is a naked truth that solar panels are a costly investment. By testing the solar panel regularly, you can check if it is working properly. If not, then you need to replace the solar panel. This will help you in reducing the cost of solar panels. Most of the people have tight budgets, if you're one then visit my list of best budget multimeters.
Safety Guide:
When working with solar panels, it is important to take precautions. Here are some safety tips that you need to follow:
- Wear gloves when handling solar panels.
- When dealing with solar panels, you should always wear safety glasses.
- Do not look directly at the sun through the solar panel.
- Standing on the solar panel is not recommended.
- Do not place anything on the solar panel.
- Avoid exposing the solar panel to extreme temperatures.
- Do not expose the solar panel to cold water on a shiny day.
Conclusion:
Most solar panels have a life of around 20 to 25 years. However, by testing the solar panel regularly, you can increase its life. Solar panels need to be regularly cleaned and maintained. By testing the solar panel, you can check if it is generating enough power. I hope this guide will help you with how to test a solar panel with a multimeter. So, stay tuned for more tips and solar energy information.
