Are you in the market for a digital multimeter? It can be tricky to pick the right one! Before purchasing, you’ll want to ensure that it has all the features you need and will provide accurate readings. That’s why we’re here today to share Fluke 117 multimeter review – a reliable option with many terrific features.
Whether you’re a professional or just looking for something basic, this multimeter is user-friendly and cost-effective. Also, keep reading this Fluke 117 review to find out more about its amazing capabilities!
Table of contents

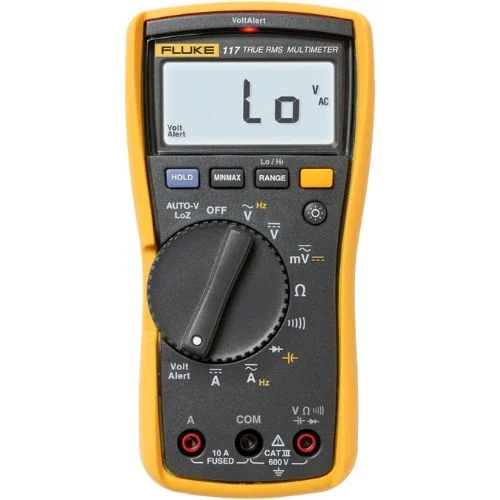

Fluke 117 Multimeter Review | Basic Info
If you’re looking for a multimeter, look at the Fluke 117. It boasts various features, such as measuring up to 1000V AC/DC, measuring resistance up to 40MΩ, and low input impedance to avoid ghost voltages.
Its small size and lightweight design ensure easy portability and storage without compromising its capabilities. The built-in thermometer functionality also adds another layer of convenience, making it a highly competent tool for any job. With an automatic concurrent display of volts and Hz, you’ll never have to worry about missing an important measurement!
Although, the Fluke 117 is reliable and sure to be your go-to multimeter for years. You may also need the Fluke 100 as well as the Fluke 300 series models.
Key Features
- VoltAlert technology
- AutoVolt automatic AC/DC voltage selection
- Low input impedance to prevent false readings
- Large white LED backlight
- True RMS for accurate measurements
- 400 hours of long-life battery
- CATIII rated to 600V
- Size: 6.6″ (168mm) x 3.3″ (84mm) x 1.8″ (46mm)
- Weight: 1.3 lbs (590g)
Things That’s Included
- Meter
- Rubber holster
- 9V battery (400hr)
- Probe leads
- Manual
Fluke 117 Multimeter Review | General Specifications
| Maximum Voltage | 600V |
| Safety | IEC 61010-1: Pollution Degree 2IEC 61010-2-033: CAT III 600V |
| Display Count | 6000 |
| Bar Graph | 33 segments, updates 32 per second |
| Temperature | -10°C to +50°C |
| Battery Life | 400 hours typical |
| Continuity | 600 Ω / 1 Ω |
| Ohms | 40.00 MΩ |
| Diode Test | 2.00 V / 0.001 V |
| Capacitance | 100 μF to 1000 μF |
| Lo-Z Capacitance | 1 nF to 500 μF |
| Frequency | 50.00 kHz / 0.01 Hz |
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) |

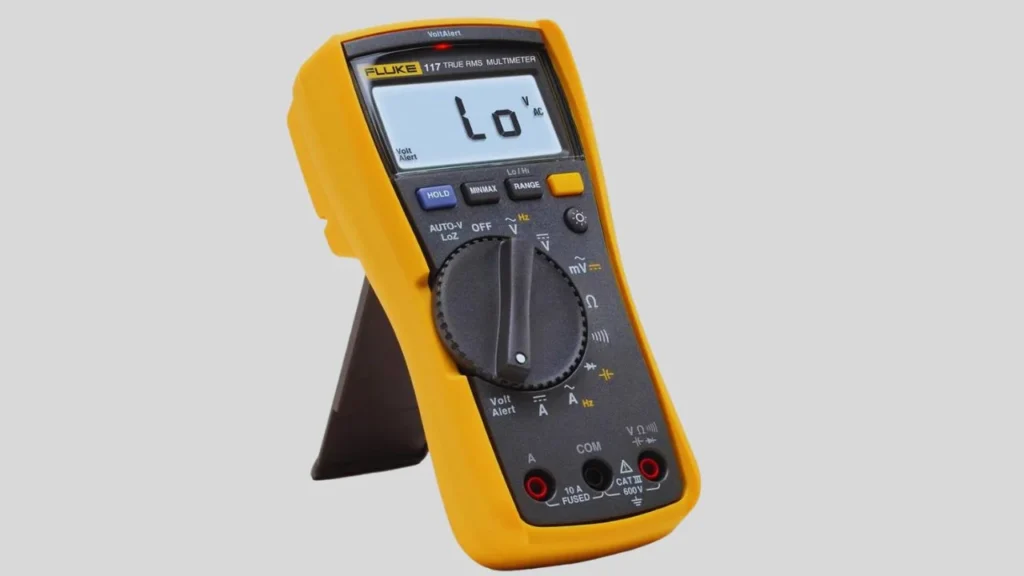

Fluke 117 Review | Features
Design
The Fluke 117 Multimeter’s sleek, ergonomic design sets it apart from other series. It is lightweight but constructed with high-quality materials for enhanced durability.
Subtle features like the contoured case and raised input dial selector add to its efficient design. Moreover, this allows one-handed dial operation and access to the single-screw battery compartment without removing the holster. These functions make this multimeter an ideal choice for convenient and accurate readings no matter where you are.
Display
The Fluke 117 multimeter display is quite a catch! It comes with a 6000-count display, which may be impressive, but it washes out at an angle with time. But not to worry, it still offers good visibility and a crystal clear look despite its size.
Plus, it has an LED backlight and updates quickly and accurately- four times every second for the display itself and x32 for the multi-segment bar graph. Amazing!
Function Plus Performance
The Fluke 117 multimeter sticks out in the 110 series thanks to its input dial – with 11 inputs that are easy to switch between, even with gloves on. You can cycle through AC/DC volts, amps, millivolts, resistance, continuity, capacitance, and frequency. However, it has an accurate diode check that gives a definite tone for positive continuity. This reliable multimeter is up to the job, regardless of your measurements.
The Fluke 117 multimeter has an intuitive setup, making it an ideal choice for amateur and professional technicians. Its voltage and amperage ranges are conveniently located across two sides of the dial, as are the Auto-V and Volt Alert selectors.
It also boasts MIN/MAX and Lo/Hi range buttons for added functionality. Despite its ease of use with just one hand, you’ll want to consider purchasing the ToolPak magnet hanger for a truly hands-free experience. All in all, this is another great offering from Fluke that will last you a lifetime.
Special Features
The Fluke 117 electrician’s multimeter comes with some impressive features. It has True RMS technology, so erratic signals still yield accurate readings, and the Min/Max feature records and averages any fluctuating signals to give a fairly accurate result.
The Low input impedance function also screens out any ‘ghost voltages’ on neighboring circuits. Plus, Auto-Volt will detect either an AC or DC range up to 600V and display the result accurately. This multimeter is packed with the right features for all your electrical testing needs.
The Fluke 117 multimeter is super handy. Its VoltAlert™ detector means you can discern voltage without needing a separate tool. Perfect if you’re in a hurry!
It features two sensitivity modes, too, Hi and Lo – perfect for those wires that are just out of reach. With capabilities like this, it’s no wonder this meter is one of the most popular on the market.
Protection
The Fluke 117’s mechanical protection is top-notch; its strong case and rubber boot allow it to withstand drops and bangs better than many other multimeters. An 11 amp HRC ceramic fuse keeps it safe from overload, along with in-built suppression devices and internal baffles.
While the deep lip on the interior of the case safeguards it against humidity and bad weather, with these features all working together to offer great protection, you can be sure your 117 will stand up to whatever comes your way.
Affordable Price
The Fluke 117 is a multimeter that won’t break the bank. It offers people quality products at an affordable price, making it perfect for residential and commercial purposes. You don’t have to worry about wasting money on something you don’t need or can’t use – this meter will truly get the job done. Whether you’re looking for spot readings or more complicated tasks, this Fluke multimeter is worth looking into!
Pros:
- Three-year warranty
- Compact and lightweight
- Large backlit screen
- Special features
- Bar graph
- High-quality build
- Accurate and reliable
Cons:
- Can’t measure low current values
- Carrying case not included
- The contrast of a display diminishes at various angles

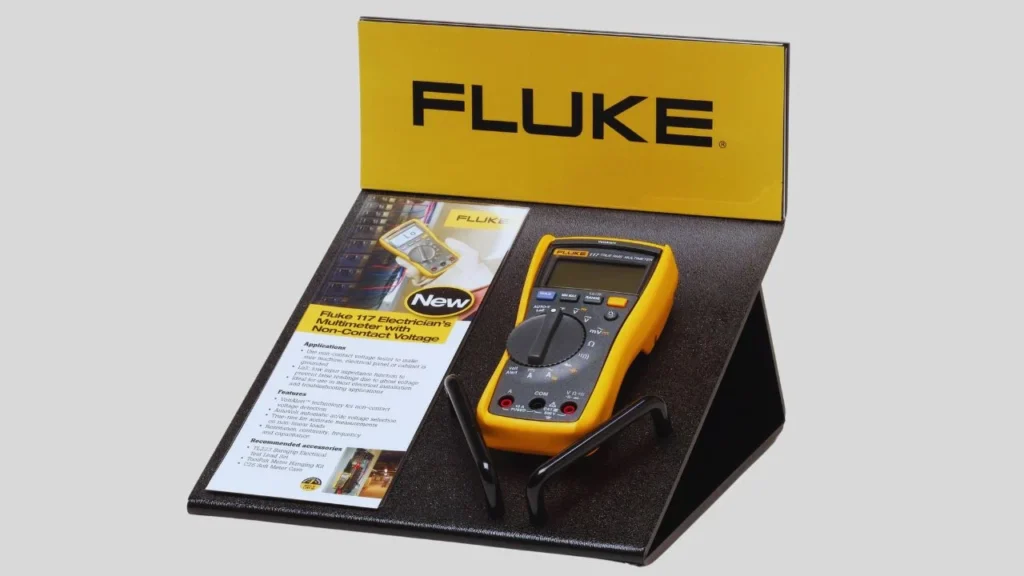

Things That Are Unimpressive In Fluke 117
When it comes to the Fluke 117, there are a few features that can be considered unimpressive. For one, the lack of milliamp and micro-amp range means you may have difficulty registering certain readings.
Additionally, the display resolution leaves something to be desired compared to other multimeters – it just doesn’t feel as polished or refined. And let’s remember its somewhat fiddly ‘hold’ function, which can make it difficult to take accurate readings in theory and practice. While the Fluke 117 has some merits, these shortcomings should be considered before purchasing.
Who Needs Fluke 117?
The Fluke 117 is perfectly suited for electricians, engineers, contractors, and other electrical and industrial professionals. It’s packed with features that make it easy to use while producing highly accurate and reliable results.
With true-rms voltage and current measurements, low input impedances to reduce ghost voltage, and a wide frequency range of up to 200 kHz, this tool can be convenient and dependable when diagnosing issues.
Its lightweight design makes it easily portable for use on the job site or in the lab. Whether you’re troubleshooting motor controls or analyzing power harmonics, the Fluke 117 is the perfect choice for anyone who works with electricity.
Users’ Opinion About Fluke 117 Digital Multimeter
The Fluke 117 Digital Multimeter is popular with electronic technicians and DIYers. It is highly accurate, holds up well to frequent use, offers a wide range of features, and has a user-friendly operation.
The user reviews show that the device is extremely well-liked. Many have praised its durability over time due to its impact-resistant exterior build. Customers have also noted that it provides detailed readings with precision and accuracy and find its features incredibly useful.
While some state the price point is higher than expected for the average consumer, the Fluke 117 Digital Multimeter is worth the investment for those needing it for their work or hobby.
Fluke 117 Multimeter Review | Final Verdict
The Fluke 117 is a great option for the everyday handyman, hobbyist, and professional technician. Not only will you have consistent measurements with great accuracy, but you’ll also have a dependable meter that will serve you well.
In addition to its technical capabilities, the design allows it to be used in every environment or situation, making sure that you get the most out of your device. However, the backlight is ideal for working in low-light environments. It may be a bit pricey for some, but it’s worth it in terms of longevity and reliability. So if reliable results and good measurement accuracy are what you’re after, then the Fluke 117 is an excellent choice!
Fluke 117 Multimeter Review FAQs
Is the Fluke 117 a good multimeter?
Fluke’s 110 series is a trusted choice for electricians and DIY tech aficionados. The 117 model is especially renowned as an easy-to-use, reliable multimeter, perfect for amateur projects or professional electrical work. Compact yet strong – this handy little tool has you covered!
Is Fluke 117 good for electronics?
Working on electronics? The Fluke 117 is your best bet. Compact and powerful, this tool has a CAT III 600V rating to give you that extra safety edge – now that’s peace of mind!
Does the Fluke 177 measure temperature?
Measure the exact frequency you need and ensure the capacitance is correct with simple, accurate readings. Test for resistance, continuity, and diode integrity – plus track temperature changes from min to the max! All this is monitored in real-time, so you can also review average recordings.
