The most common issue that many of us face is how many electrical outlets per breaker are needed. Some might have a 15amps breaker some might have a 20amps breaker.
“If you were asking how many electrical outlets per breaker? Well, the number of electrical outlets per breaker depends on the maximum load the breaker can handle. Standard residential breakers are typically rated at 15 or 20 amps in the United States. Assuming a conservative 1.5-amp rating per outlet, you could have approximately 10 to 13 outlets per 15-amp breaker and 13 to 16 outlets per 20-amp breaker.”
However, it’s essential to consult local electrical codes and consider the power consumption of the devices plugged into the outlets to ensure safe operation and prevent overloading.
How to Find the Number of Outlets on a Single Circuit Breaker?

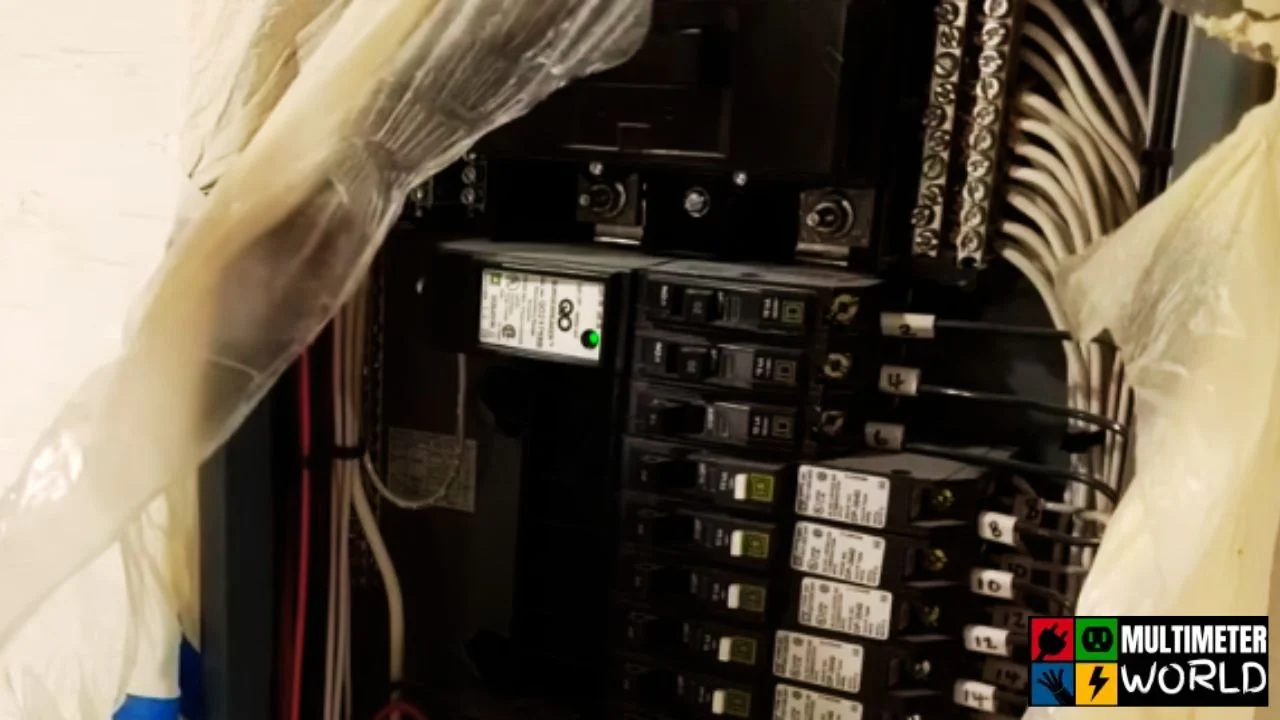

To determine the number of outlets on a single circuit breaker, follow these steps: First, locate the circuit breaker box in your property. Next, identify the breaker that controls the outlets you want to assess.
Turn off the breaker and observe which outlets lose power. Count all the outlets affected by that specific breaker. Remember that each breaker should typically handle a specific load, measured in amps. Avoid overloading the circuit by not exceeding its capacity.
How Many Outlets Can You Put on a Single Circuit Breaker?
The number of outlets you can put on a single circuit breaker depends on the breaker’s amperage rating and the power consumption of the devices connected to the outlets. You can allocate approximately 1.5 amps of electrical load to each outlet.
However, it’s essential to consider the total load and not exceed the breaker’s capacity to prevent overheating and potential fire hazards. Consulting an electrician for precise calculations is advisable for safety and compliance.
Read more about How to Paint Electrical Outlets?
Determining the Number of Outlets on a Circuit
You should know how many electrical outlets per breaker. Ensuring a safe and efficient electrical system in a building involves understanding how many outlets can be connected to a single circuit.
Overloading a circuit can lead to overheating, potential fires, and damage to electrical devices. These methods include a basic approach, considering the amp rating of outlets and factoring in the wattage rating of outlets. Additionally, we will explore essential safety considerations to prevent electrical hazards.
Important Note: Always make sure to design your electric systems with 80% Efficiency.
- Let’s say you have a 20Amps circuit breaker, so if you have 2 amps outlets then never go beyond 8 outlets (meanings 16 amps).
- However, if you have a 15Amp breaker then you can also install 1.5 Amps 8 outlets.
Method 1 – Basic Approach:
The basic approach to determining the number of outlets on a circuit involves a visual inspection and simple counting. Follow these steps to utilize this method:
Identify the Circuit Breaker:
Locate your property’s circuit breaker box or panel. It typically houses multiple circuit breakers, each controlling different sections of the electrical system.
Turn Off the Circuit:
Prioritize safety by switching off the circuit breaker that controls the outlets you want to assess. This action prevents accidental electric shocks during the inspection.
Count the Outlets:
With the circuit breaker off, physically count the number of outlets connected to the specific circuit. Ensure to include only the outlets directly controlled by the circuit breaker you turned off. Omit any outlets that operate independently.
This basic approach quickly estimates the number of outlets on a circuit. However, it does not account for each outlet’s electrical load, which is essential for determining the circuit’s capacity.
Method 2 – Considering the Amp Rating of Outlets:
Electrical circuits are rated in terms of amperage (amps), indicating the current the circuit can safely carry. Outlets also have specific amp ratings, representing the amount of electrical load they can handle. To utilize this method, follow these steps:
Determine the Amp Rating of the Circuit Breaker:
Locate the circuit breaker that controls the outlets in question. The amperage rating is typically labeled on the breaker switch. Common residential circuit breakers are rated at 15 or 20 amps.
Identify the Amp Rating of Outlets:
Most outlets in residential settings are either 1.5 amp or 2.0 amp. You can usually find the amp rating stamped on the outlet or refer to the manufacturer’s specifications.
Calculate the Maximum Number of Outlets:
Divide the circuit breaker’s amperage rating by the outlets’ amp rating. The result will give you the maximum number of outlets safely connected to the circuit. For example, if the circuit breaker is rated at 15 amps and the outlets are 1.5 amps each, the circuit can support up to 10 outlets (15 amps / 1.5 amps per outlet).
By considering the amp rating of outlets, you can make more informed decisions about the electrical load on a circuit. However, it’s important to exercise caution and avoid pushing the circuit to its maximum capacity, as it leaves little room for fluctuations or temporary spikes in power consumption.
Method 3 – Factoring in the Wattage Rating of Outlets:
While amp ratings provide critical information about current capacity, considering the wattage rating of outlets allows for a more nuanced approach. Watts represents the total power consumption of an electrical device or appliance. To use this method, follow these steps:
Determine the wattage:
Identify the circuit in question and find the wattage rating. This information can usually be found on the outlet or the manufacturer’s specifications.
Identify the Wattage Rating of Outlets:
Each outlet typically has a wattage rating, indicating the maximum power it can handle. You can find this information on the outlet or refer to the manufacturer’s specifications.
Calculate the Maximum Number of Outlets:
Divide the circuit’s total wattage rating by the outlets’ wattage rating. The result will give you the maximum number of outlets safely connected to the circuit. For example, if the circuit is rated at 1800 watts and the outlets are 150 watts each, the circuit can support up to 12 outlets (1800 watts / 150 watts per outlet).
Factoring in the wattage rating provides a more comprehensive assessment of the circuit’s capacity since it accounts for connected devices’ current and voltage requirements. This method allows for better distribution of electrical loads and helps prevent overloading. Now you know how many electrical outlets per breaker.
Testing Outlet with multimeters
You can also measure the voltage/amperes of any electrical outlet with the help of a multimeter. As you know voltages in the US are about 120VAC so with the help of a multimeter you can find amperes also. If you want don’t know how to test outlet voltages or amperes then you can our testing guides.
I have also dig down some best electrical outlet testers for you. So you don’t need any extra effort.
Safety Considerations:
Determining the number of outlets on a circuit is essential for safety and to prevent electrical hazards. Here are some crucial safety considerations:
Avoid Overloading:
Whether using the amp or wattage rating method, ensure that the total electrical load on the circuit remains below its capacity. Avoid plugging in too many high-wattage devices or appliances on a single circuit to prevent overheating and potential fire hazards.
Consider Diversity of Load:
In practice, not all outlets on a circuit will be fully utilized simultaneously. The diversity factor accounts for this, as it is unlikely that all outlets will draw their maximum current simultaneously. This factor can vary based on the type of space (e.g., residential vs. commercial) and the typical usage patterns.
Consult an Electrician:
If you are uncertain about the calculations or your electrical system requires complex assessments, it is advisable to consult a qualified electrician. They can conduct load calculations, verify the wiring, and ensure electrical codes and regulations compliance.
Use GFCI Outlets:
Ground Fault Circuit Interrupter (GFCI) outlets are essential in areas where water is present, such as kitchens, bathrooms, and outdoor locations. GFCI outlets provide an added layer of protection against electric shocks.
Regular Maintenance:
Inspect your electrical system, including outlets, wiring, and circuit breakers, for signs of wear or damage. Loose connections, frayed wires, or unusual heating should be addressed promptly.
How Many Outlets Are In Most Bedrooms?
In most bedrooms, there are typically two to four electrical outlets. The number of outlets can vary based on the size of the bedroom and the building code requirements in different regions.
Generally, two outlets are commonly found on each wall, one near the bed and another near a desk or dressing area. Larger bedrooms or those with specific electrical needs may have additional outlets to accommodate various electronic devices and appliances.
FAQs
How many outlets can be on a 20 amp NEC circuit?
The National Electrical Code (NEC) allows a maximum of 10 standard 1.5-amp outlets on a 20-amp circuit.
How do you calculate the number of outlets?
To calculate the number of outlets on a circuit, divide the circuit’s amp rating by the amp rating of each outlet. For example, a 20-amp circuit can support approximately 13 outlets (20 amps / 1.5 amps per outlet).
What size breaker do I need for an outlet?
For standard 15-amp outlets, use a 15-amp breaker. For 20-amp outlets or high-power devices, such as kitchen appliances, use a 20-amp breaker. The breaker size should match the outlet’s amp rating to ensure safety and proper function.
Final Verdict
Determining the number of electrical outlets per breaker is critical in electrical installations to ensure safety and optimal functionality. The general guideline is allocating outlets based on the breaker’s maximum load capacity, typically 15 or 20 amps for residential circuits.
Using a conservative rating of 1.5 amps per outlet, we estimate that around 10 to 13 outlets can be accommodated by a 15-amp breaker and approximately 13 to 16 outlets by a 20-amp breaker. However, adhering to local electrical codes and considering the actual power consumption of devices is crucial to avoid overloading the circuit and potential hazards.
Professional consultation and proper planning are essential for designing safe and efficient electrical systems. We hope now you know how many electrical outlets per breaker.
