Do you know How to Test a Thermal Fuse with a Multimeter is essential in maintenance and repair? It is used to test how well the fuse is functioning, which helps ensure that it is working correctly and provides the necessary protection for your electronic devices. Using a test electrical outlet with a multimeter helps determine its status. Using these steps, you will be able to properly gauge how well the thermal fuse is performing and ensure that all of your electronics are functioning correctly and safely.
| Quick Look: What got me curious was a dryer that wouldn’t heat up and that’s how I learned to test a thermal fuse with a multimeter. It’s one of those small components you never think about until it fails. I grabbed my multimeter, followed a few simple steps, and figured out the problem in minutes. |
Tools Table for Proper Thermal Fuse Testing
Required tools:
- Multimeters that function digitally or analogy
- The faulty appliance’s thermal fuse
- Wires or probes connected
- Electrical appliances
- Different sizes of screwdrivers
How To Test The Thermal Fuse With A Multimeter- Steps
Thermal fuse retrieval and location:
Locate the thermal fuse within the appliance you wish to test. It should be marked clearly with the words “thermal fuse” or “thermostat.” Once you’ve located the house fuses, could you remove it from the appliance?
A Quick Look
Test setting up:

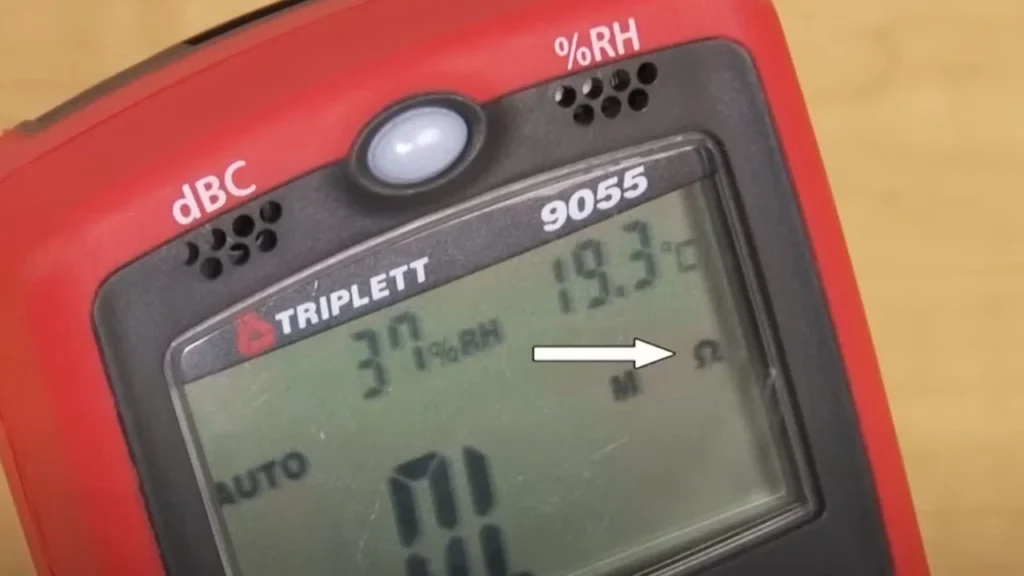

Once your thermal fuse is removed from the appliance, it is time to start testing similar to how it’s done in the check car fuse process. Take your multimeter and set it to the “Rx1” setting; this will ensure that you are testing for continuity.
NOCO Boost Plus GB40
⭐ 4.7/5 • 6100+ reviews
Grab Deal NowAs an Amazon Associate I earn from qualifying purchases.
Testing:

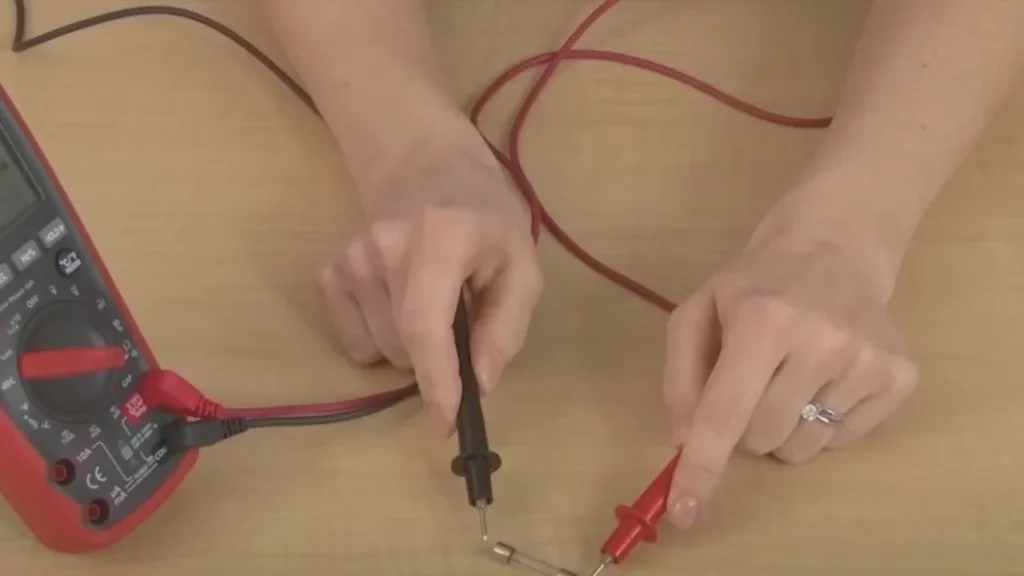

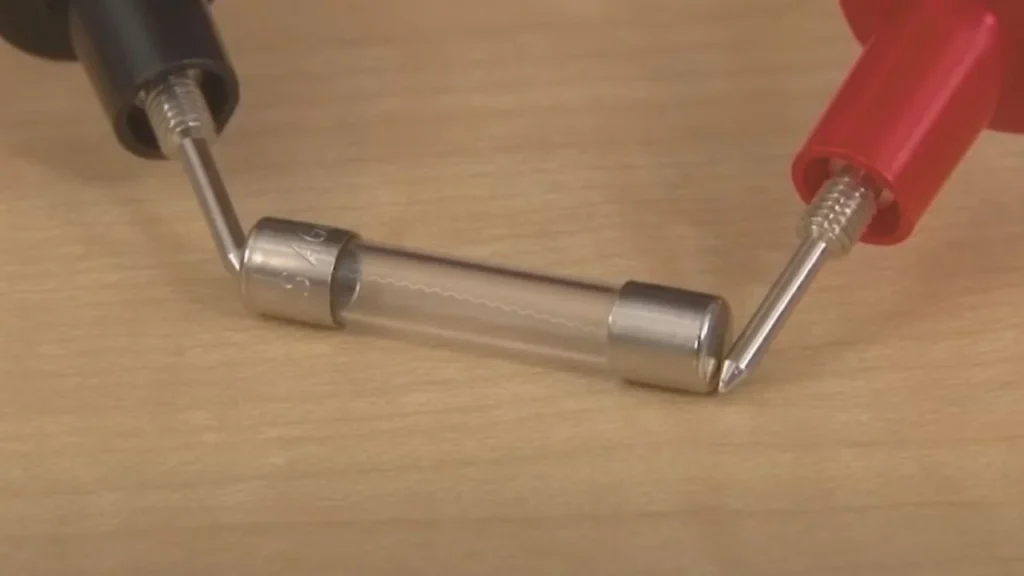

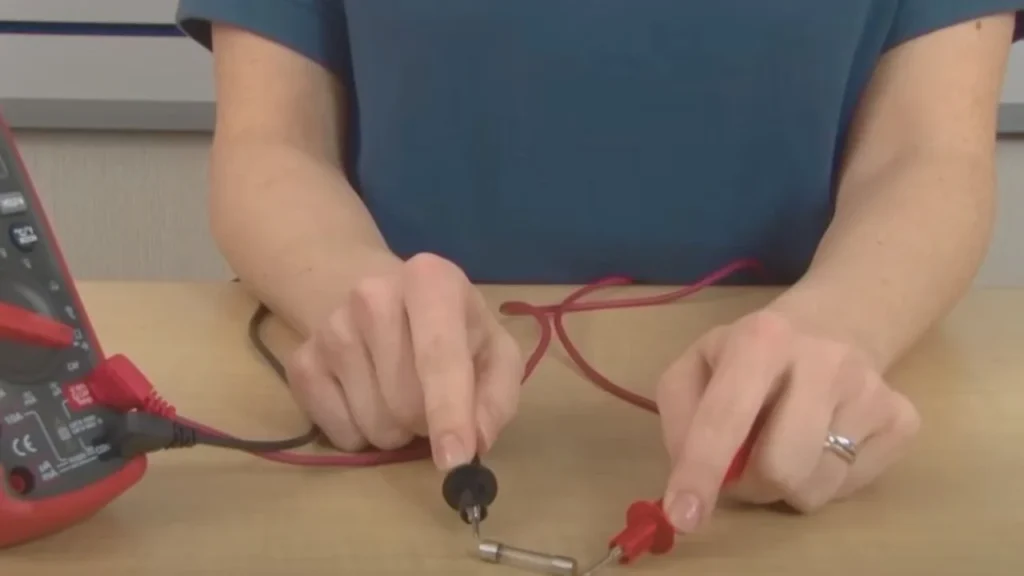

Connect the multimeter to the two wires of your thermal fuse using the probes just like you’d do to test a 220V breaker. If you get a reading of “1,” it means that the thermal fuse allows a current to flow, indicating that it is functioning correctly. However, getting a reading of “0” shows that the thermal fuse does not allow a current to flow, meaning it has blown.
Replacement of faulty thermal fuses:
Thermal fuses are safety devices that are used in a variety of appliances to prevent fires, and knowing how to test a thermal fuse with a multimeter can help determine if it needs replacement. If the thermal fuse is faulty, it needs to be replaced. The process for replacing the thermal fuse is relatively simple and can be done by most people with basic repair skills.You can also test an electrical outlet to ensure the wiring is working correctly during the repair.
1. Turn off the power to the appliance at the breaker box.
2. Remove the cover or panel on the appliance where the thermal fuse is located.
3. Locate the thermal fuse and remove it from its socket.
4. Install a new thermal fuse into its socket and reattach the cover or panel to the appliance.
5. Turn on the power to the appliance at the breaker box and test it to make sure it
Maintenance Tips for thermal fuse
1. Check your thermal fuse regularly for continuity, and do not use the appliance if it is faulty or blown.
2. Make sure to use the correct type of thermal fuse for your appliance.
3. If you are replacing a thermal fuse, match it with the original one as closely as possible.
4. Make sure to keep the thermal fuse in good condition by cleaning and storing it properly when not in use.
5. Never bypass the thermal fuse or attempt to repair it yourself.
6. If you need help testing your thermal fuse, consult a professional.
7. Always unplug the appliance from the power source before attempting to test or replace the thermal fuse.
8. Use the right tools when replacing or repairing the thermal fuse.
9. Ensure all connections are secure before turning on the power.
10. Always be aware of the risk of electric shock and take proper safety precautions when working with electrical components. I make a list of the best budget multimeters. You can check it out.
Conclusion:
Do you know how to test the thermal fuse with a multimeter? How to Test a Thermal Fuse with a Multimeter can seem daunting, but with the right tools and patience, it is relatively simple. These steps will help ensure the thermal fuse functions correctly, protect your electronic devices from damage, and provide peace of mind. If you are ever in doubt, it is best to contact a professional electrician or service technician for help. Always remember to practice safety when dealing with any electrical components, and never attempt to bypass the thermal fuse. Following these tips will help you maintain your appliance and save money in the long run.
FAQs
Q1. How can I identify the thermal fuse in my appliance?
The thermal fuse is typically located near the heating element in appliances like dryers, toasters, or ovens. If you’re unsure about how to test a thermal fuse with a multimeter, it’s often marked with “thermal fuse” or “thermostat.” Consult your appliance’s manual for the exact location to ensure you’re testing the right part.
Q2. What is the significance of testing a thermal fuse with a multimeter?
Testing a thermal fuse with a multimeter ensures that the fuse is functioning correctly and can protect your appliance from overheating. If the fuse is blown, it could prevent your appliance from operating safely, potentially causing damage or even fires.
Q3. What should I do if my thermal fuse is blown?
If the thermal fuse is blown, it must be replaced. Be sure to turn off the appliance’s power, remove the old fuse, and install a new one with the same specifications. Always ensure the appliance is unplugged before performing any repairs.
Q4. How can I maintain my thermal fuse to prevent failure?
Regularly check the thermal fuse for continuity using a multimeter to ensure it’s functioning correctly. Avoid bypassing the fuse, as it is a critical safety feature. If your appliance is prone to overheating, ensure proper ventilation and avoid excessive load to prevent premature fuse failure.
