The purge valve controls fuel vapour flow and maintains fuel efficiency. A faulty valve can cause increased emissions. But How to test purge valve with multimeter?
“Disconnect the electrical connector from the purge valve. Set your multimeter to the resistance or ohms setting. Place the multimeter’s probes on the purge valve’s terminals. Check if the multimeter displays a resistance value within the manufacturer’s specifications”.

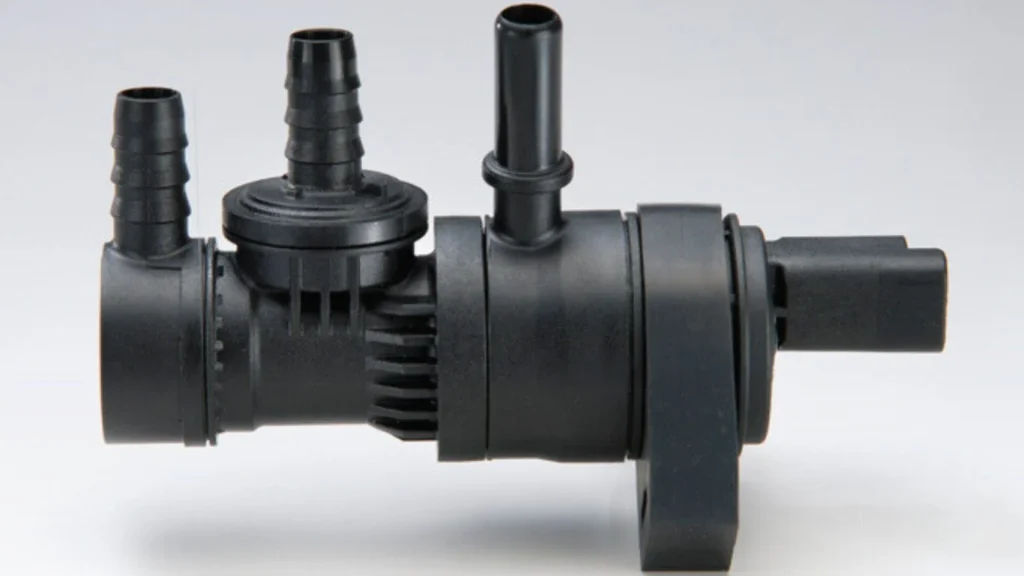

What does the purge valve do?
The purge valve’s primary role is to regulate fuel vapour’s movement. When your vehicle’s engine runs, the purge valve opens to allow the stored fuel vapour from the charcoal canister to be drawn into the engine intake manifold. This vapour is then combusted along with the air-fuel mixture in the engine cylinders.
Why is the purge valve necessary?
Maintaining a properly functioning purge valve is essential for several reasons. Firstly, it prevents the build-up of excessive fuel vapours in the charcoal canister, which can lead to performance issues and increased emissions. Secondly, it ensures that the fuel vapour is efficiently burned in the engine, maximizing fuel efficiency and reducing the environmental impact.

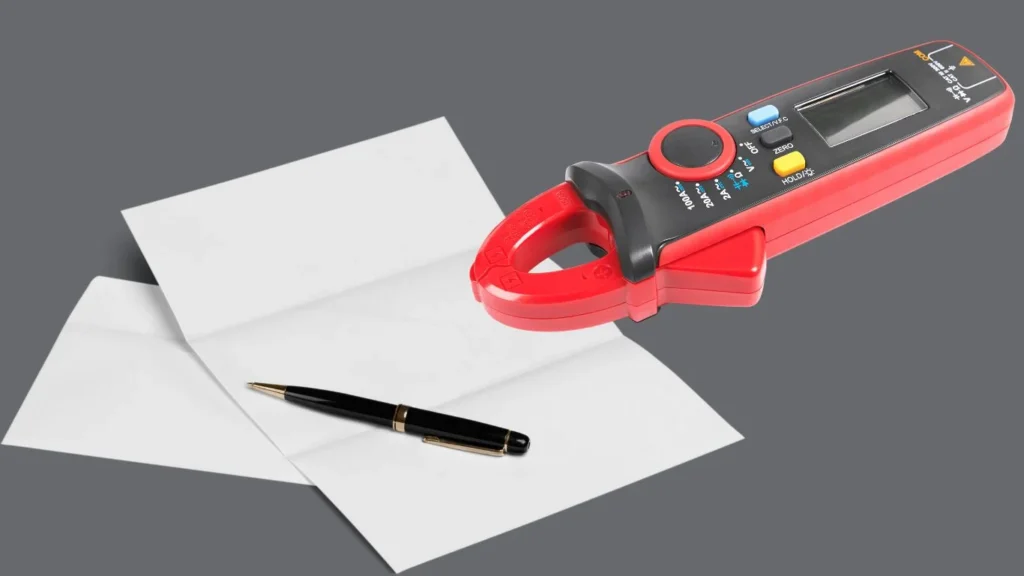

Tools and Equipment Needed
You will need a few essential tools and equipment to test the purge valve effectively. Don’t worry; they are readily available and relatively easy to use. Here’s what you’ll need:
- Multimeter
- Vehicle Owner’s Manual
- Pen and Paper
Preparing for the Test
Before testing the purge valve, it’s essential to make necessary preparations to ensure a smooth and safe process. Here are the steps to get you ready:
Safety First
Always prioritize safety when working on your vehicle. Start by disconnecting the battery’s negative terminal to prevent electrical mishaps during testing.
Additionally, wearing protective gloves is a good practice to safeguard your hands from hazards.
Locate the Purge Valve
Refer to your vehicle’s owner’s manual to find the exact location of the purge valve. Typically, it is located in the engine compartment, near the charcoal canister or intake manifold. Take your time to familiarize yourself with its position before proceeding further.
Disconnect the Wiring Harness
Disconnect the purge valve from the vehicle’s wiring harness to perform an accurate test. This will isolate the purge valve from the electrical system, allowing you to measure its resistance accurately. Carefully unplug the wiring harness connected to the purge valve, following any specific instructions provided in the owner’s manual.
How to test purge valve with multimeter?
Now that you’re prepared and the purge valve is disconnected from the wiring harness, it’s time to test its electrical resistance using a multimeter. Follow these step-by-step instructions to measure the purge valve’s resistance accurately:
Step 1: Set up the Multimeter
Switch your multimeter to the resistance measurement mode (often denoted by the Ω symbol). Select an appropriate resistance range based on the expected values for the purge valve. If unsure, start with the lowest degree and adjust as needed.
Read more about 5 Best Budget Auto Ranging Digital Multimeter
Step 2: Identify the Purge Valve Terminals
Examine the purge valve and identify its electrical terminals. Typically, a purge valve has two terminals, but it may have more depending on the specific design. If you need help with the terminal configuration, refer to your vehicle’s owner’s manual or online resources.
Step 3: Measure the Resistance
Place the multimeter probes across the terminals of the purge valve. It doesn’t matter which probe goes to which airport. The multimeter will measure the resistance between these two points. Make sure the probes have a secure connection with the terminals.
Step 4: Record the Resistance Value
Observe the resistance value displayed on the multimeter. It will indicate the electrical resistance across the purge valve.
Note down this value for future reference and comparison with the expected range.
Step 5: Interpret the Test Result
Compare the resistance value you obtained with the expected range specific to your vehicle’s purge valve. Generally, a functional purge valve will have resistance within a particular field (typically a few ohms). If the measured resistance falls within this range, the purge valve is likely functioning correctly.
However, if the resistance is too high (indicating an open circuit) or too low (indicating a short course), it may suggest a malfunctioning purge valve.
Interpreting the Test Results
After measuring the resistance across the purge valve terminals, it’s crucial to interpret the test results accurately. The test results will help you assess the condition of the purge valve and determine whether it is functioning correctly. Here are the different scenarios and their implications:
Normal Functioning Purge Valve
If the measured resistance falls within the expected range specific to your vehicle’s purge valve, the purge valve is likely functioning correctly. This is a positive result, indicating that the electrical components of the purge valve are in good condition.
Open Circuit (Infinite Resistance) Across the Terminals
It suggests an open circuit if the multimeter shows infinite resistance or no reading (OL) when measuring across the purge valve terminals. This means there is a break or discontinuity in the electrical path of the purge valve.
Read more about How to measure amps in a circuit?
An open circuit indicates a malfunctioning purge valve that requires replacement.
Short Circuit (Zero Resistance) Across the Terminals
On the other hand, if the multimeter displays zero or near-zero resistance when measuring across the purge valve terminals, it suggests a short circuit. A short course occurs when an unintended direct connection between the terminals bypasses the average resistance. A short circuit also indicates a malfunctioning purge valve that needs to be replaced.
How to Replace a Faulty Purge Valve?
If the purge valve is deemed faulty and requires replacement, follow these step-by-step instructions to ensure a successful replacement process:
Acquire a New Purge Valve
Obtain a new purge valve compatible with your vehicle’s make, model, and year. It is recommended to use genuine OEM parts or high-quality aftermarket options to ensure proper fit and functionality.
Disconnect the Old Purge Valve
Locate the old purge valve near the charcoal canister or intake manifold. Carefully disconnect the purge valve from the vehicle’s wiring harness, noting the position and orientation of the electrical connectors.
Remove the Old Purge Valve
Using appropriate tools, remove any mounting screws or clamps that secure the old purge valve in place. Take care not to damage surrounding components during the removal process.
Install the New Purge Valve
Position the new purge valve in the exact location where the old valve was removed. Ensure it is appropriately aligned and securely fasten it using the appropriate mounting screws or clamps.
Reconnect the Wiring Harness
Reconnect the vehicle’s wiring harness to the new purge valve, ensuring a secure and proper connection. Double-check that the electrical connectors are in the correct orientation.
Perform a Functional Test
Before finalizing the installation, it’s vital to perform a functional test. Reconnect the vehicle’s battery, start the engine, and monitor the purge valve’s operation. Ensure no leaks, abnormal sounds, or warning lights indicate a faulty installation.

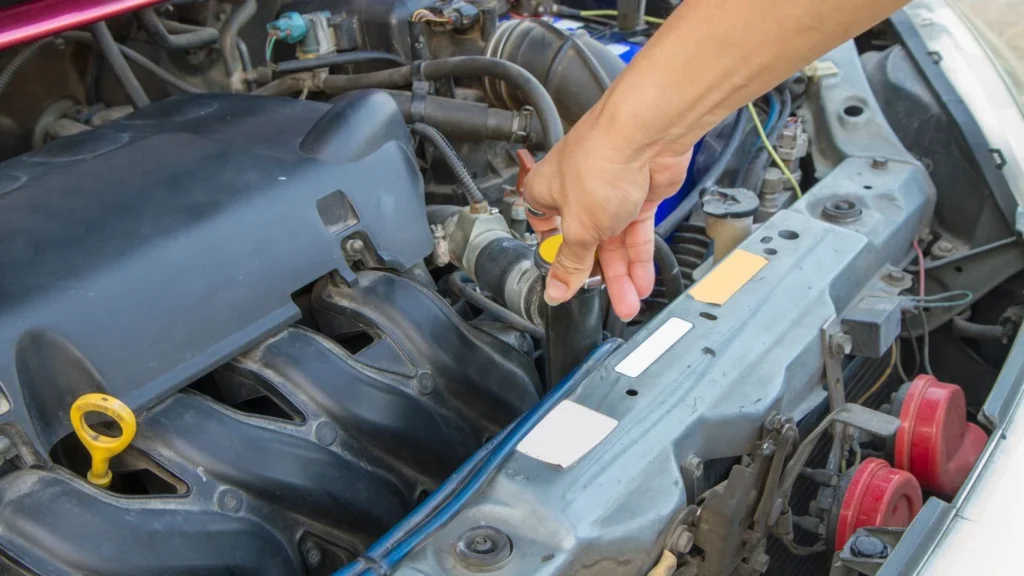

Post-Installation Testing
After replacing the purge valve, it is essential to perform post-installation testing to verify its functionality. Here are the steps to conduct post-installation testing:
Prepare for Testing
Ensure that the vehicle is in a safe and well-ventilated area. Keep the vehicle engine off and the transmission in park or neutral. Have your multimeter and any necessary tools ready for testing.
Set up the Multimeter
Switch your multimeter to the resistance measurement mode (Ω symbol). Select the appropriate resistance range based on the expected values for the new purge valve. Refer to the manufacturer’s specifications or the vehicle’s service manual for guidance.
Measure the Resistance
Disconnect the purge valve from the wiring harness with the engine off. Place the multimeter probes across the terminals of the new purge valve. Ensure a secure connection between the probes and the airports.
Record the Resistance Value
Observe the resistance value displayed on the multimeter. Take note of this value for future reference and comparison. It should fall within the expected range specific to the new purge valve.
Compare the Results
Compare the resistance value obtained during post-installation testing with the expected range provided by the manufacturer or the service manual. The new purge valve functions correctly if the measured resistance falls within this range.
Monitor Performance
Start the engine and pay close attention to the purge valve’s operation. Listen for any abnormal sounds or observe any signs of leaks. Monitor the vehicle’s performance and check for the absence of warning lights related to the evaporative emissions system.
FAQs
Is the purge valve normally open?
Certainly! The purge valve is not normally open. Its typical state is closed when the engine is not running, ensuring fuel vapors do not leak. This closed position helps maintain the integrity of the evaporative emissions system. However, when the engine is active, the purge valve opens to enable the flow of fuel vapors from the charcoal canister to the engine intake manifold.
This allows the steam to be efficiently burned and converted into harmless emissions, contributing to the overall environmental performance of the vehicle.
What type of multimeter should I use for testing the purge valve?
To test the purge valve, you will need a digital multimeter. A multimeter that measures resistance, voltage, and continuity is recommended. Ensure the multimeter has a suitable range for measuring resistance, typically in ohms (Ω). When it comes to learning how to test purge valve with multimeter, Knowing types of multimeter is essential because digital multimeter can read the approximately perfect resistance.
Read more about KAIWEETS ST600Y Smart Digital Multimeter
Additionally, having a multimeter with a diode testing function can be beneficial. This type of multimeter will enable you to accurately assess the condition of the purge valve and determine if it needs to be replaced.
Can a faulty purge valve cause other problems in my vehicle?
Absolutely! A faulty purge valve in your vehicle can lead to various problems. Firstly, it can disrupt the proper functioning of the emission control system, resulting in increased pollution and potential environmental concerns. Secondly, it may cause the “Check Engine” light to illuminate on your dashboard, indicating a malfunction.
Furthermore, a faulty purge valve can lead to fuel vapor leaks, affecting the air-fuel mixture and potentially impacting the engine’s performance and fuel efficiency. By addressing the issue promptly and replacing the faulty purge valve, you can ensure optimal vehicle operation, minimize emissions, and maintain a smooth and efficient driving experience.
Conclusion
This clears up your confusion about how to test purge valve with multimeter. Remember that lousy purge value also affect the car ECU, so it’s better to replace it if you have lousy purge values. Remember to keep safety in mind when working with electrical components.
