Before knowing the procedure of how to test spark plug wires with a multimeter, you must know about spark plug basics. A spark plug is responsible for starting combustion in your engine. It not only helps in starting but manages it to remain in this running condition. The spark plugs then throw this high current to fuel injectors via wires. These wires are the only connection between spark plugs and the engine, and tools like the Milwaukee GIDDS2-288935 are ideal for accurately checking their continuity.
| Quick Look: I test spark plug wires using a multimeter set to continuity steady beep means the wire’s good. If the beep cuts out, I clean the connectors with contact cleaner. When a multimeter isn’t around, I use a test light with an insulated screwdriver as a backup check. |
Spark Plug Wire Testing Steps with a Multimeter | Table

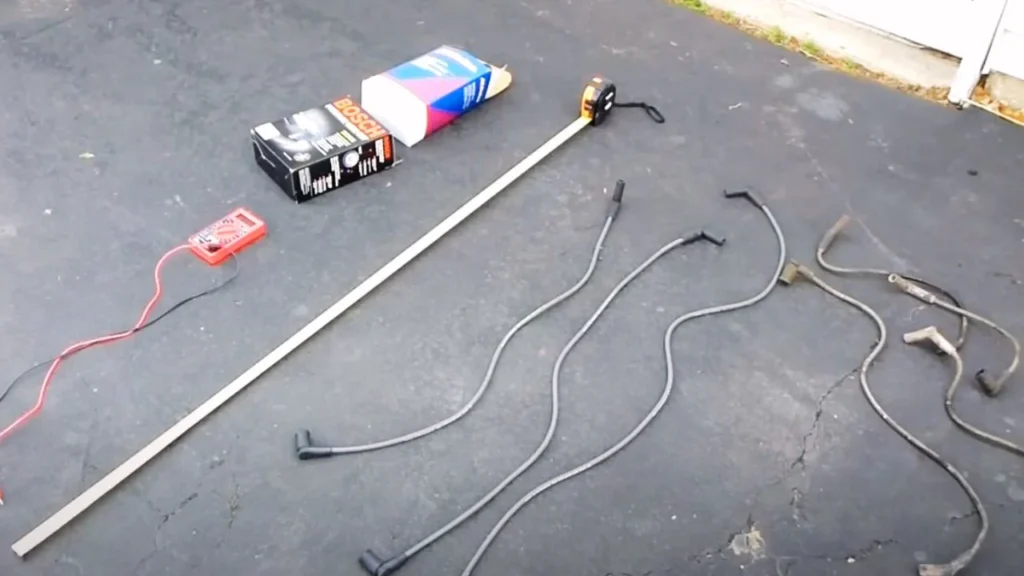

Consequences of not checking spark plug wires
If you’re in the city and your car engine fails, there are much higher chances of getting an automotive technician. But if you’re in a remote area, it will be much more difficult for you to trace the fault or find a replacement on your own. In such cases, knowing how to test spark plug wires with a multimeter can be a lifesaver. The situation can be worse if the weather conditions aren’t in your favor.
A Quick Look
And believe me, there are much higher chances that it will happen on rainy days or if you’re stuck in a snowfall. If you’re reading this blog before falling into such a messy situation, then consider yourself a bit lucky because here I will tell you how to test spark plug wires with multimeter and without it. Just be with me,
NOCO Boost Plus GB40
⭐ 4.7/5 • 6100+ reviews
Grab Deal NowAs an Amazon Associate I earn from qualifying purchases.
One of the following reasons you might be facing now,
- The engine will start missing
- Fuel average will be disturbed
- The acceleration can decrease.
- Faces problem while starting your car
- Engine warning light starts blinking
- Your car wiring might get burned
How to test spark plug wires with multimeter
This guide is for both beginners and electricians. First of all, you must know which tools should be in your toolkit for troubleshooting, including how to test spark plug wires with a multimeter. Following are the items.
Tools required to check spark plug wires
- 1x Auto-Ranging digital multimeter / digital clamp meter.
- 1x Plier
- 1x insulation tape
- 1x Contact cleaner (if it’s not possible that you can use distilled water)
- 1x large cleaning cloth
Steps
- Expose the area with light so you can see everything.

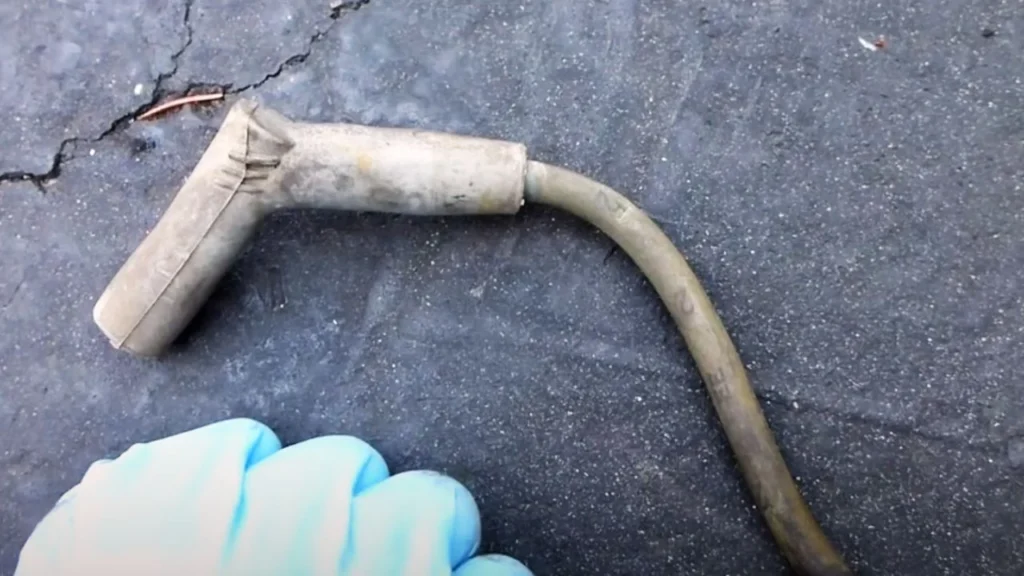

- Start physical inspection of spark plug wires and female spark plug holders.
- If you see any damage to insulation, then first insulate the wire with insulation tape.
- Switch your multimeter to Continuity.
- Touch one test lead at one end and second test lead at the other end. If there is a beep, then your spark plug wire is healthy.
- If the beep goes and back or starts missing, there might be some carbon on the clips.
- Use the contact cleaner on clips and wash it until all the carbon goes off.
- If you don’t have the contact cleaner rinse your cable ends with distilled water and dry them with pressurized air.
- Check it will start working.
- If you still feel any issue, then you can buy the ACDelco professional spark plug wire set for just a few bucks.
Best multimeter to test spark plug wires with multimeter
If you want to test your spark plug with a multimeter, you need to know how to test spark plug wires with a multimeter. It can be analog or digital, depending upon your preferences. But in my opinion, a digital multimeter is far better than for automotive use. Therefore, I have also made a list of the 8 best multimeters for automotive use.
Safety Guide
Safety is the priority. But most people take it for granted. If you are new and don’t know about precautions, then you might damage your equipment and yourself also. Knowing how to test spark plug wires with a multimeter is crucial for ensuring the safety and functionality of your vehicle’s ignition system.
Always make sure that your car system is offline.
First of all, disconnect your car battery terminals and then start checking.
Must check the fuse box first. If there is any flashpoint there, then replace the fuse first.
Always make sure to use safety Goggles and wear Insulated hand gloves before using a multimeter.
You must have to set the right ranges and then start your measurement. If the multimeter is auto-ranging, then there is nothing to worry about.
Check your multimeter is well calibrated and works properly.
How to test spark plug wires without multimeter
Checking spark plug wires without a multimeter is not a good option. But if you don’t have a multimeter, I will tell you some of the best life-saving hacks.It would be best if you had a screwdriver in your toolkit. Start your car engine and then touch the tester to live wire. But before touching the screwdriver, you must check the screwdriver is insulated well. After touching the wire, if the tester lightens up. That means the wire is functioning well.
Final Verdict
In automotive electrical testing, a little fault can cause major accidents. So, always try to maintain your automotive regularly. While talking about automotive electrical wiring, spark plugs and their connected wires plays an important role. Here I have discussed how to test spark plug wires with multimeter and without a multimeter. In my opinion, the Klein MM700 multimeter is the best electrical tester for automotive use. You can grab the best one which suits you.
FAQs
Q1: How do I test spark plug wires with a multimeter?
To test spark plug wires with a multimeter, set it to continuity mode and touch both ends of the wire with the test leads. A steady beep indicates a good wire, while no beep or an inconsistent one signals an issue. If the beep cuts out, clean the wire ends with contact cleaner and test again.
Q2: What happens if spark plug wires are faulty?
Faulty spark plug wires can cause engine misfires, poor fuel economy, reduced acceleration, and difficulty starting your car. In some cases, it can even burn the wiring or trigger warning lights on your dashboard. Ignoring this can leave you stranded in tough weather or remote areas.
Q3: Can I check spark plug wires without a multimeter?
Yes, you can use an insulated screwdriver and a test light as an alternative when testing spark plug wires. To test spark plug wires with a multimeter, start your engine, touch the test light to the wire, and if it lights up, the wire is working. Make sure to use insulated tools and wear safety gloves to avoid any shocks or accidents.
Q4: What’s the best multimeter for testing spark plug wires?
Fluke 15B+ is one of the best options for testing spark plug wires due to its accuracy and auto-ranging feature. It’s perfect for both beginners and professionals. You can also explore other digital multimeters designed specifically for automotive diagnostics.
