How to Test Toyota Ignition Coil with Multimeter? Guide Of 2023

Have you ever wondered how your car starts so smoothly? Well, that's thanks to a little hero called the ignition coil. Don't worry; I've got your back. This guide will show you how to check your Toyota's ignition coil using a simple multimeter tool. It sounds fancy, but it's quite easy! So, how to test Toyota ignition coil with multimeter?

The ignition coil takes the regular power from your car's battery and transforms it into a special spark that kicks your engine into action. In simpler terms, it's the spark plug's best friend!

How do you know if your ignition coil is acting up? Well, if your car is acting strangely – like misfiring, idling roughly, or losing power – the ignition coil might be the reason. It's like your car tells you it needs a little checkup.

How to Test Toyota Ignition Coil with Multimeter | Step-By-Step Guide

Your car's engine is a complex symphony of parts working together, and one crucial performer in this orchestra is the ignition coil. This small component plays a significant role by generating the spark needed to ignite your engine's fuel and air mixture.

The ignition coil might be the culprit if your car shows signs of trouble, such as misfires or rough idling. You should learn how to test toyota ignition coil with multimeter.

Materials You'll Need

  • A Multimeter (don't worry; it's just a cool tool that measures electricity)
  • A Wrench (in case you need to unscrew something)

Step 1: Locate the Ignition Coil

First things first, let's find our ignition coil. In most Toyotas, you'll discover it sitting on top of the engine, usually near the spark plugs. It's a small, cylindrical object with wires coming out, making it a vital part of your engine's ignition system.

Step 2: Disconnect the Ignition Coil Connector

Now, it's time to isolate the ignition coil for testing. Locate the electrical connector plugged into the top of the ignition coil. Gently unplug it. This disconnection ensures that our multimeter test is focused solely on the ignition coil, free from interference.

Step 3: Set Up the Multimeter

Here comes the multimeter, our trusty sidekick! Set it to measure ohms, which is a unit of electrical resistance. It's like allowing our multimeter to see how much "pushback" the electrical current is facing in the ignition coil.

How to Test Toyota Ignition Coil with Multimeter

Read more about Best Multimeter For Mechanics And Auto Technicians

Step 4: Connect the Multimeter

Take one probe from the multimeter and attach it to the primary terminal of the ignition coil. This is the terminal connected to the ignition coil connector. Think of it as the entry point for electricity into the coil.

The other probe should be connected to the secondary terminal, linked to the spark plug wire. This terminal sends the high-voltage spark to the spark plug, igniting the fuel mixture.

Step 5: Read the Resistance

As you connect the multimeter probes, watch the multimeter screen closely. It will display a number, which represents the resistance in ohms. A healthy ignition coil typically shows a resistance between 0.2 and 1.0 ohms on the primary side and between 7,000 and 15,000 ohms on the secondary side.

This reading tells us how efficiently the ignition coil is conducting electricity. Now you know - how to test Toyota ignition coil with multimeter?

Read more about Best Budget Auto Ranging Digital Multimeter


Signs of a Faulty Toyota Ignition Coil

Your Toyota's engine is like a busy kitchen, where each ingredient must be just right for the recipe to turn perfect. In this automotive kitchen, the ignition coil is the essential chef responsible for creating the spark that ignites the engine.

When this vital component isn't working as it should, your car might start acting a bit strange. Let's talk about the signs that tell you it's time to check your Toyota's ignition coil.

1. Engine Misfires

When the ignition coil falters, it's like the conductor losing control – you start hearing a stuttering performance.

Signs of a Faulty Toyota Ignition Coil

These stutters are engine misfires, moments when your car jerks or hesitates while you're driving. It indicates that the spark plugs aren't getting the right signals.

2. Hard Time Starting

Have you ever noticed your car taking a little longer to wake up in the morning? If starting your Toyota feels sluggish, the ignition coil might struggle to provide the spark your engine needs. This sluggishness can lead to rough starts, making your mornings less smooth than you'd like.

Picture your car as a thirsty traveler. When the ignition coil doesn't work efficiently, your car starts guzzling gas like there's no tomorrow. This decrease in fuel efficiency means you're covering fewer miles for every gallon of gas, which isn't great news for your wallet.

3. Dirty Smoke and Emissions

Your car's engine is like a chef; it needs the right mix to cook things properly. When the ignition coil isn't firing as it should, this mixture isn't perfect, leading to dirty exhaust emissions. If you notice your car blowing out more smoke than usual or failing emission tests, the ignition coil might be behind the problem.

If your engine is vibrating or making strange noises while idling, it's like your car is trying to tell you something. This jittery behavior is often due to an ignition coil not providing a steady spark to the engine.

4. Unexpected Engine Shutdowns

An engine stalling is one of the most serious issues caused by a failing ignition coil. It's like your car taking an unexpected nap while you're driving. Engine stalling can happen suddenly, and it's not just inconvenient; it's downright dangerous. If your Toyota starts shutting off unexpectedly, the ignition coil could be the culprit.

5. Check Engine Light

Modern cars have a clever way of talking to us through lights on the dashboard. If your check engine light suddenly blinks to life, it's like your car's way of sending you a text message. It indicates something isn't right under the hood. Ignition coil issues are one of the common reasons for this silent SOS signal.

Signs of a Faulty Toyota Ignition Coil

Engines are supposed to hum smoothly, but you might hear odd noises when the ignition coil isn't firing correctly. It's like your car is playing an out-of-tune song. Sputtering, popping, or backfiring sounds are indicators that something's off in the ignition system.

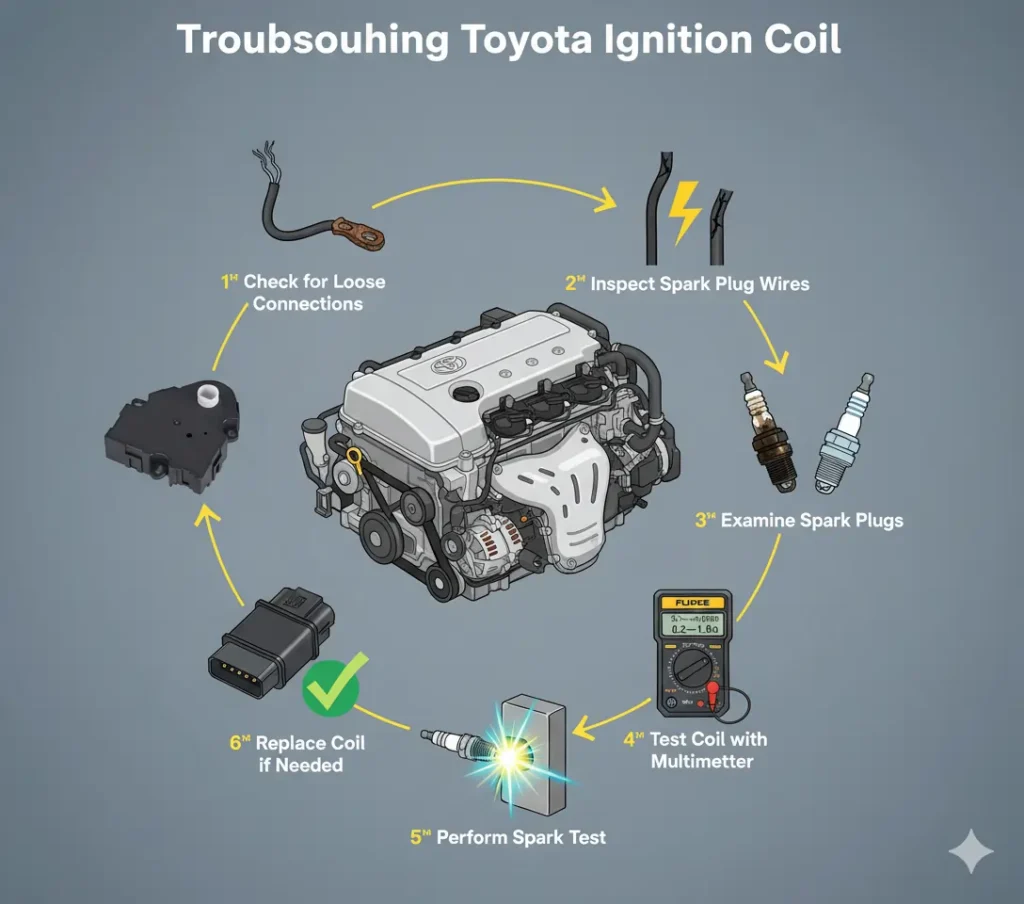

Troubleshooting Toyota Ignition Coil

If your multimeter readings fall outside the healthy ranges, don't panic. Let's troubleshoot:

When your car starts acting up, and you suspect the ignition coil might be the culprit, there's no need to worry. Troubleshooting ignition coil problems isn't rocket science; it's about understanding a few basics and taking simple steps to identify and potentially fix the issues. Let's dive into the world of car troubleshooting and explore the methods to ensure your ignition coil is in good shape.

1. Check for Loose Connections

Think of your car's connections like the puzzle pieces that make it work. Sometimes, these pieces can get loose or rusty, disrupting the flow of electricity. Begin your troubleshooting journey by examining the wires and connections related to the ignition coil.

If you find loose wires or corroded connections, gently secure or clean the corrosion. It's a small step that can make a big difference in your car's performance.

2. Inspect Spark Plug Wires

Over time, these wires can wear out, affecting the messages they deliver. Look closely for any cracks or exposed wires along the spark plug wires. If you spot damage, it's time for replacements. New, healthy wires ensure smooth communication between the ignition coil and the spark plugs.

3. Examine Spark Plugs

Spark plugs are like the heartbeats of your engine – they keep it running. If they're not in good shape, your engine might struggle. Remove the spark plugs and give them a thorough look.

Are they covered in deposits or worn out? If so, it's best to replace them. Fresh spark plugs contribute to efficient combustion, less stress on the ignition coil, and a healthier engine overall.

4. Test the Ignition Coil with a Multimeter

A multimeter is like a superhero tool for car troubleshooting. Set it to measure resistance (ohms) and test the ignition coil's primary and secondary circuits. The primary circuit (between positive and negative terminals) should show low resistance (0.2 and 1.0 ohms).

The secondary circuit (between the positive terminal and spark plug wire) should display higher resistance (between 7,000 and 15,000 ohms). These readings help you understand if the ignition coil is doing its job right.

5. Perform a Spark Test

Sometimes, seeing things in action can clear up any doubts. Conduct a spark test by removing a spark plug, reconnecting it to the spark plug wire, and grounding it against the engine block.

Now, crank the engine and watch the spark plug tip. A strong, consistent spark means your ignition coil is in good shape. If the spark is weak or flickering, it's a sign that the ignition coil might need attention.

6. Consider Ignition Coil Replacement

If, after all these checks, your ignition coil is still causing trouble, it might be time for a new one. Consult your car manual or a mechanic to find the right replacement ignition coil. A compatible replacement ensures your ignition system functions smoothly. Don't worry; it's like freshening your car's heart.


Final Wrap-Up

Testing your Toyota's ignition coil might sound tricky, but with a multimeter, it's a piece of cake. When your car acts up, you can confidently check if the ignition coil is the issue. And remember, if you're unsure about any step, it's okay to ask someone for help.

Keeping your car's parts in good shape ensures many smooth rides ahead. We hope now you know “how to test Toyota ignition coil with multimeter?” Happy testing!
