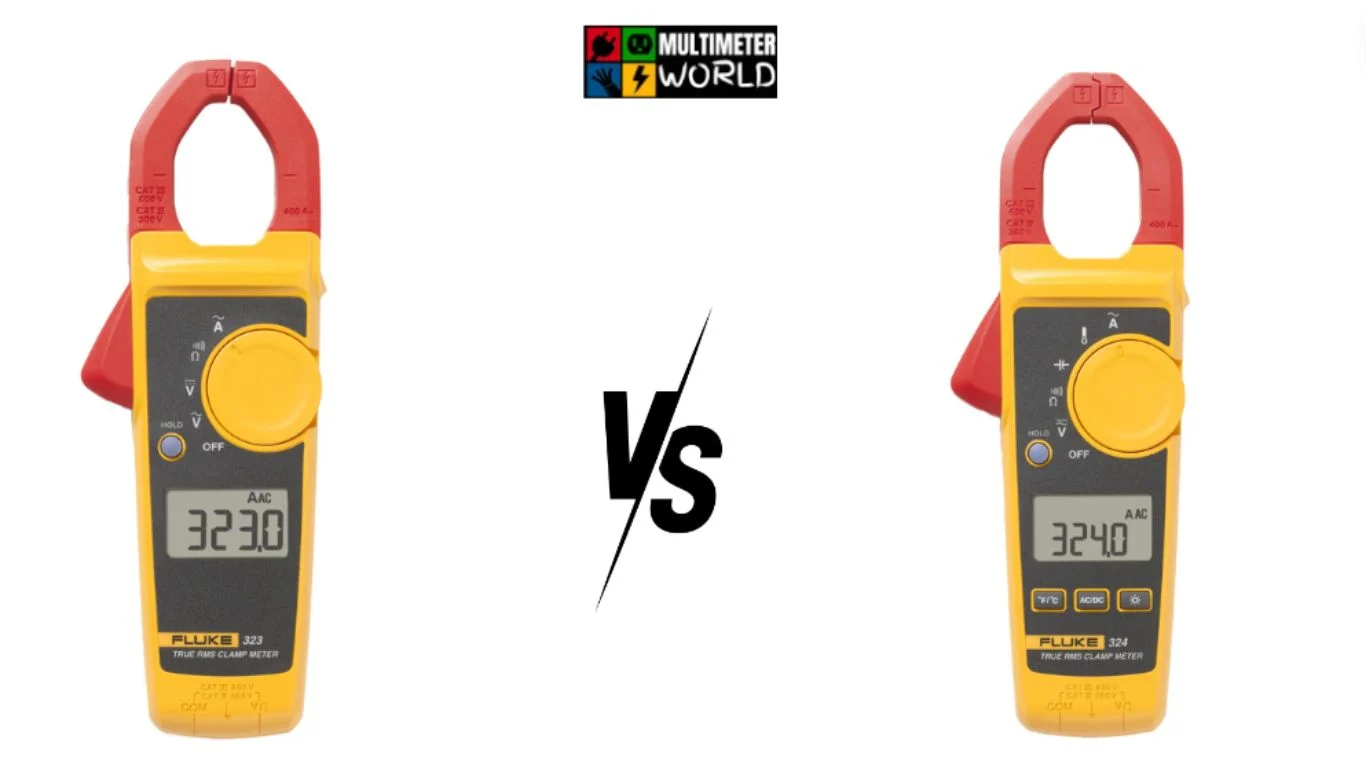

FLUKE 323 vs 324 Clamp meter Reviews & Comparison

Clamp meters are more like ammeters, but with some additional functions of digital multimeters. You can do almost every measurement with a clamp meter including AC DC voltage measurements. Here I focused and reviewed two most precise clamp multimeters of Fluke. Although both fluke 323 and 324 look similar, they are a bit different in terms of functionality. However, before jumping on the fluke 323 Vs 324 clamp meter comparison, let's take a closer look at their features.

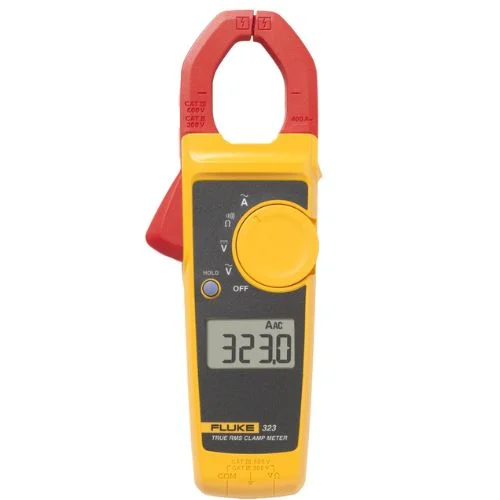

FLUKE 323 Clamp meter Review

Fluke 323 is a multi-functional True RMS  clamp meter with a very user-friendly interface. With current measurements, you can do other electrical variable measurements like AC/DC voltages, continuity and diode tests. It has a 30MM jaw opening size, so you can measure the current of the 120MM cable easily (phase by phase). The reason behind its great success is its pocket friendly size with a weight of only 200grams. So if you're an HVAC technician then you can easily Carry for an extended period of time.

Key Features:

  • It comes with a large display of 2000 counts resolution.
  • First of all it's a True RMS clamp meter so you will get an accurate reading.
  • It is capable of measuring current up to 400 Amperes.
  • The AC/DC voltage measurement range is 600V.
  • You can also measure resistance of any circuit up to 4kΩ.
  • Fluke 323 is made up of ABS plastic so you don't have to be a lot conscious while using it in extreme conditions.
  • Plus the silicon case gives it extra grip, insulation and drop safety.
  • If you don't know how to use it then you can read the user guide that came along with it.
  • Last but not the least data hold option is also available in this handy tool.
  • CAT III 600 V safety rating allows you to work safely at all locations.
  • It weighs only 200grams with a  dimension of (HxWxD) 207mm x 75mm x 34mm.
  • Fluke offers a two year warranty claim Incase of malfunctioning of this sturdy tool.

Fluke 323 Pros & Cons

Pros
  • Ergonomic design.
  • Auto off after 15 minutes of inactivity.
  • Cheaper as compared to other fluke clamp meters.
  • The silicon case increases its life.
  • The banana jack's fits perfectly in the test lead slots.

Cons
  • Backlight option is not available on the display.
  • No carrying enclosure comes with it.

Package Includes:

  • Fluke 323 Clamp meter
  • 2x CAT-III standard test leads
  • User Manual
  • 2x AAA batteries
  • Test lead tip caps

FLUKE 324 Clamp meter Review

If you're expecting every function of a multimeter in your clamp meter then Fluke 324 is the only solution. As we all know, fluke is known for its high accuracy. The reason behind these accurate readings is its True RMS mode. You can measure voltage current resistance capacitance and even temperature with fluke 324 clamp meter.

The compact jaw size allows you to work on automotive and HVAC systems perfectly. If you need more advanced fluke meters then I have review fluke 902 and 325 for you. Let's have a look at fluke 324 major features.

Key Features:

  • Fluke 324 is an auto-ranging clamp meter, which makes it easy to measure values.
  • It has a True RMS function for accurate measurement of nonlinear loads.
  • For industrial and commercial applications, it has CAT III safety rating (600V).
  • The display also has a backlight for enhanced visibility.
  • With its 30mm clamp type jaw, you can measure AC current up to 400 A.
  • This clamp meter can also measure up to 600 Volts of AC/DC voltage.
  • You can use it to measure resistance of any winding up to 4kΩ. This resistance range is enough to measure all electrical circuits.
  • Continuity test is also available in it with an beep alarm option.
  • Fluke 324 is one of the few clamp meters capable of measuring temperature. Therefore, you can measure temperatures from -10C to 400C with it.
  • It can also measure capacitance up to 1000μF.
  • Data hold function offers a perfect working experience in tight areas.
  • A 2 year warranty also comes with this multimeter.

Fluke 324 Pros & Cons

Pros
  • You can measure temperature with it.
  • High current measuring ranges
  • Perfect for non-linear load measurements.
  • Auto off after 15 minutes of inactivity.
Cons
  • Only degrees Celsius are displayed, not Fahrenheit.

Package Includes:

  • Fluke 324 Clamp meter
  • A pair of cat-III standard test leads
  • A zipper carrying case
  • Temperature Probe
  • 2x AAA Batteries
  • User manual

Fluke 323 vs 324 clamp meter comparison guide

Both the above reviewed clamp meters are best in terms of quality and accuracy. But still they have a lot of major differences. Let’s have a look at some of its major similarities and differences. In addition, both meters measure voltage differently. If you want to check DC voltage then you can also visit my list of 7 best DC clamp meters.

If I have to compare all the features of fluke 323 and 324 then there are many similarities, let's have a look.

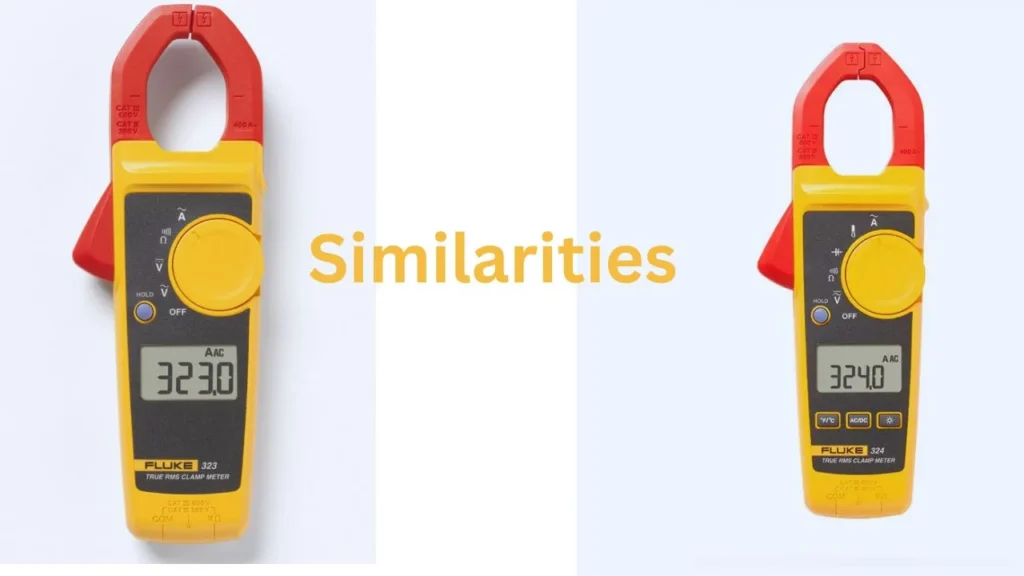

Similarities in Fluke 323 and 324

  • Both fluke 323 and 324 have true RMS functions, which let them measure non-linear loads.
  • Fluke 324 comes with a digital display, as does fluke 323.
  • You can measure resistance with both fluke 324 and 323.
  • Their package contains the same cat-III standard test leads.
  • Both clamp meters have the same cat rating which is cat-iii.
  • Fluke 323 and 324 have the same jaw size. (30mm)
  • Both fluke 323 and 324 can measure only AC current.
  • You can measure current up to 400A in fluke clamp meters.
  • AC voltage readings of both clamp meters are the same, up to 600V.
  • In both fluke 323 and 324, the option to hold data is also enabled.
  • Continuity detection is available in both clamp meters.

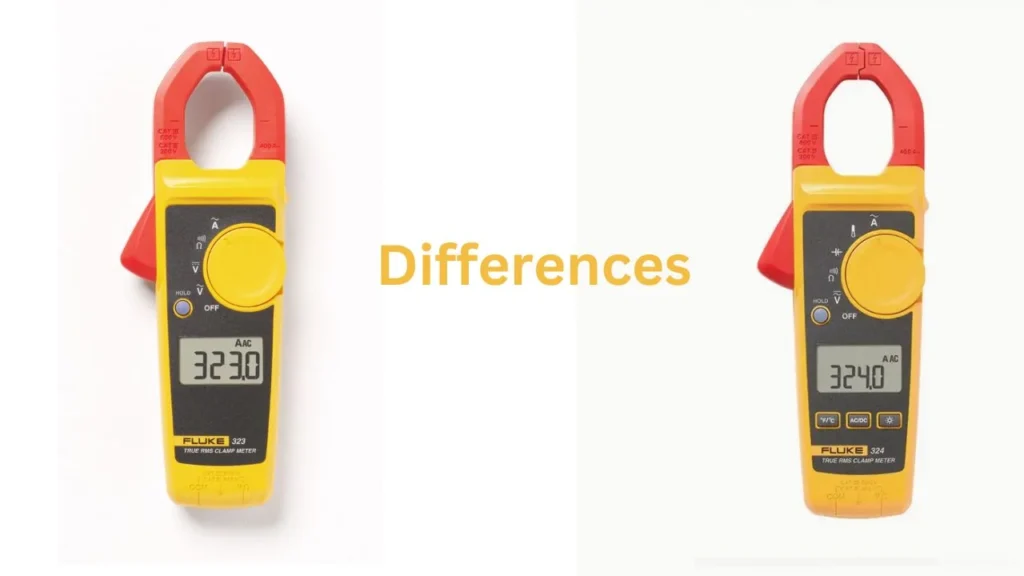

Differences in Fluke 323 and 324

  • Unlike Fluke 323 which lacks auto-ranging functions, Fluke 324 has automatic ac/dc voltage detection functions.
  • Both fluke 323 and 324 can measure only AC current.
  • The min max function is also available in both true RMS clamp multimeters.
  • Fluke 324 is capable of measuring capacitance.
  • Although both clamp meters have the same display but backlight option is only available in fluke 324.
  • When it comes to weight, Fluke 323 ( 200 grams) is a bit lighter than Fluke 324 (300 grams).
  • Fluke 323 can measure temperature in both Celsius and Fahrenheit scale, but fluke 324 lacks this feature.

Conclusion

If you’re looking for a true rms clamp meter then both fluke meters are good enough. Because both true rms clamp meters can measure ac current, which is compulsory for commercial and residential electricians. The major advantage of fluke 324 over 323 is that it has a built-in thermometer device. Moreover, you can get temperature readings in both Celsius and Fahrenheit.

The major electrical measurements like DC voltage, true RMS AC voltage, and current readings can be measured with fluke 324 true RMS meter. If your budget is a bit lesser but you need reliable performance with accurate reading then Klein Cl800 and cl900 also offer the same features.

FAQs- Frequently Asked Questions

Can Fluke 323 measure DC current?

No, fluke 323 can not measure DC current. If you want to measure DC current, DC AC Voltages measurements and capacitance feature then there are many reliable true RMS meters available. I have also made a list of the best clamp meters for electricians.

Is a clamp meter better than a multimeter?

Clamp meters and multimeters both have their own applications. If you want to measure contact temperatures then you need a thermographic camera. But to measure temperatures you can choose any of them. I have made a detailed comparison of multimeters Vs Clamp meters.

How does a continuity checker work in multimeters?

In Clamp meters and multimeters the working principle is almost the same. Both have a ln audible continuity sensor which works with a k-type thermocouple probe. You just have to set the dial to Celsius or Fahrenheit (whichever is available) and plug the thermocouple probe carefully. The electrical difference between thermocouple ends will then be converted into temperature readings in the bigger LCD/analog display.
