Working on electronics projects can be a fun and rewarding experience. However, it can also be dangerous if you don’t take the proper safety precautions.
One of the essential safety measures to take when working with capacitors is properly discharging them before handling them. If you’re unsure how to proceed, you can check how to test an AC capacitor with a digital multimeter. This capacitor discharging guide will walk you through the steps of how to discharge a capacitor with a screwdriver.
A Quick Look
| Quick Look: I discharge a capacitor with a screwdriver by first identifying it and finding a safe ground. Using an insulated flathead screwdriver, I touch one lead of the capacitor and ground the other. This releases the stored charge. Always wear gloves and ensure the ground is safe before starting. |
Table: Capacitor Discharge Procedure Using a Screwdriver
What Does Discharging a Capacitor Mean?
Discharging a capacitor means releasing the electrical charge stored over time. This charge can be dangerous if not handled properly, so it’s essential to know how to do it safely. The simplest way to discharge a capacitor is by using a resistor.
NOCO Boost Plus GB40
⭐ 4.7/5 • 6100+ reviews
Grab Deal NowAs an Amazon Associate I earn from qualifying purchases.
You connect one end of the resistor to the positive terminal (the longer lead) of the capacitor and one end of the resistor to the ground or negative terminal (the shorter lead). Just like with electrical wiring proper handling ensures safety. This will cause the capacitor’s electrical current to slowly dissipate into its environment until there is no charge left in it.
Why Would You Need To Discharge A Capacitor?
There are several reasons why you would need to discharge a capacitor. The main reason is safety. Capacitors retain their charge for long periods, even after being disconnected from power sources. If you’re working with any electronic device, you should always make sure that any capacitors inside are discharged before beginning work on them.
It’s also essential when handling capacitors used in high-voltage circuits. Since they may still have enough residual voltage to shock you if touched without first being appropriately discharged.
Another reason you may need to discharge a capacitor is when testing or troubleshooting an electronic device or circuit board with capacitors installed.
When testing or troubleshooting electronics, you need all components involved for accurate readings and results including capacitors so discharging them ensures that all parts are functioning correctly and at their full potential before conducting further tests or repairs.

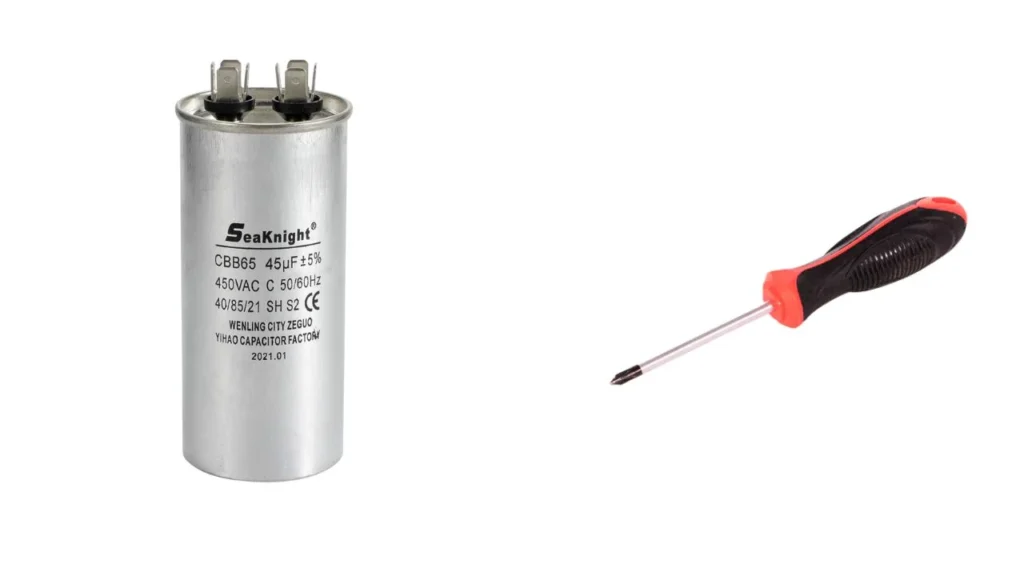

Can I Use A Screwdriver To Discharge A Capacitor?
When working on electronics, you need to discharge a capacitor. Instead of reaching for the tools specifically designed for this purpose, it may surprise many to learn that using a screwdriver can be an effective way to charge a capacitor. It is necessary to take care when doing so, as there is always the risk of electric shock and damage to the capacitor.
Moreover, to discharge a capacitor with a screwdriver, you’ll want to ensure you’ve insulated your hands and screwdriver with rubber gloves and other materials. Additionally, you should ensure that the screwdriver’s tip is flat and has not been exposed to excessive heat to reduce potential risks. The same caution applies when working with a motor start capacitor. Using these steps as guidelines, you can use a standard screwdriver to discharge an electronic component effectively!

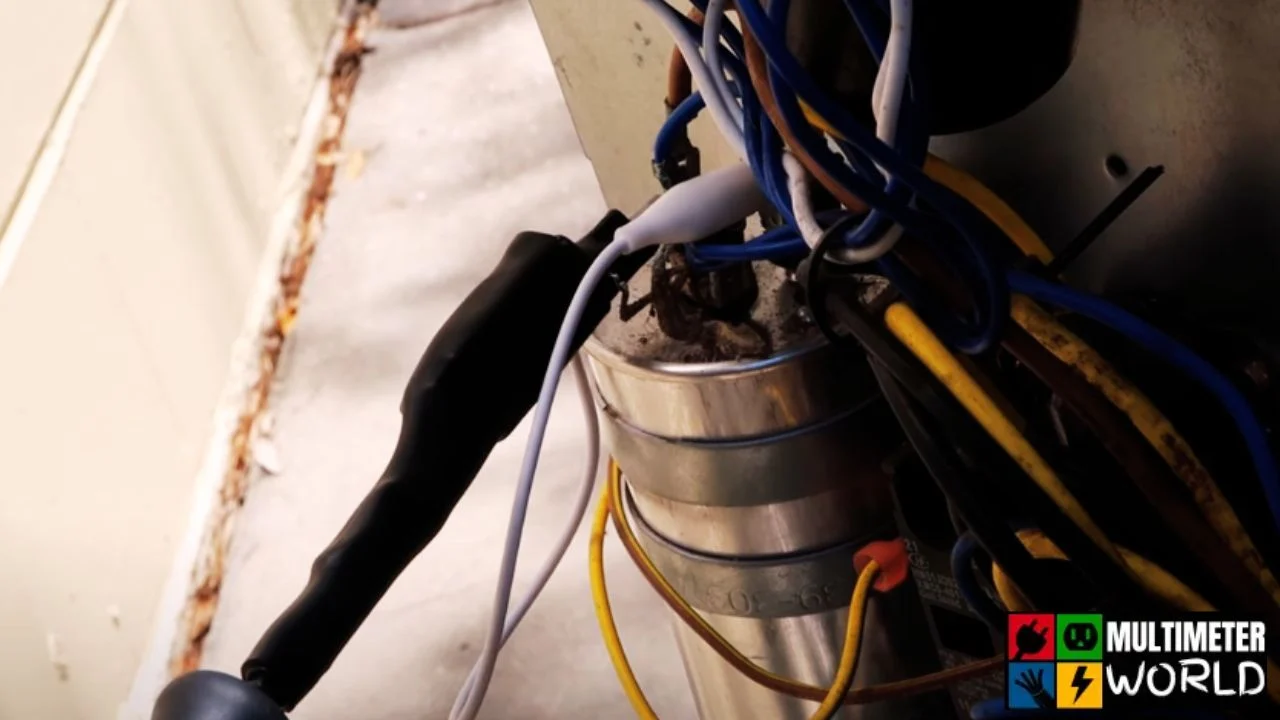

How To Discharge A Capacitor With A Screwdriver | Pro Steps
Step 1: Identify The Capacitor You Need To Discharge
First, identify which capacitor needs to be discharged. You should know which capacitor you are working with (electrolytic, tantalum, etc.), as each type requires different discharge methods.
Step 2: Find A Suitable Ground For The Screwdriver
Next, find something that serves as an appropriate ground for your screwdriver; this will typically involve finding an unpainted metal surface or a grounded outlet nearby. Make sure no power is running through it by using a multimeter or non-contact voltage tester to check that the ground is safe before continuing.
Step 3: Use The Screwdriver To Discharge The Capacitor
Once you have identified the capacitor and found a suitable ground for your screwdriver, use the flat head of the screwdriver to hold against one lead of the capacitor while touching the other end of the screwdriver to your ground point. Just like using a multimeter and voltage tester for electrical checks, this will discharge any electricity stored in the capacitor so that it is safe to handle without risk of shock or injury.
Tips & Warnings While Discharging A Capacitor With A Screwdriver
Discharging a capacitor with a screwdriver is something you don’t want to do lightly. When discharging a capacitor, always ensure that it is unplugged and that your hands are dry when handling any power source or wiring.
The last thing you want is to get an electric shock while handling this project. Make sure your screwdriver fits tightly into the capacitor’s contacts before proceeding. And use the right kind of screwdriver—an insulated one that can prevent electrocution. Tools like the Amprobe AM-500 can also help you stay safe and accurate during troubleshooting.
Your best bet for ensuring safety in this process is to wear protective eyewear and gloves. By taking these few precautions, you’ll be well on your way to a successful project.
Bottom Line:
So, how to discharge a capacitor with a screwdriver? Well, discharging capacitors with a screwdriver is an easy process once you know how. Ensure you understand which type of capacitor needs discharging and follow all safety protocols, like ensuring there is no power running through. Whether you’re testing basic circuits or working with tools like the AstroAI M4KOR, safety should always come first. Whatever surface you use as your ground point before beginning. These simple steps will ensure that whichever project you work on goes smoothly and safely!
FAQs
Q1: Why is it important to discharge a capacitor before working on electronics?
Capacitors can hold a dangerous charge even after power is removed, posing a risk of electric shock. Discharging them ensures your safety before handling any circuit components.
Q2: Can I safely discharge a capacitor using a screwdriver?
Yes, but it must be done carefully with proper insulation on both the screwdriver and your hands. Always wear gloves and use an insulated, flat-head screwdriver to minimize risk.
Q3: What precautions should I take before discharging a capacitor?
Make sure the device is unplugged, your hands are dry, and you’re using proper protective gear like gloves and safety glasses. Also, confirm your ground point is safe with a voltage tester.
Q4: When should I consider discharging a capacitor during repairs or testing?
Any time you’re troubleshooting, testing, or handling a circuit that contains capacitors, it’s necessary to discharge them. This helps avoid electric shock and ensures accurate test results.
