Electrical systems require safety and speedy detection of problems. Whether you are a seasoned electrician or a DIY enthusiast, it is essential to test amperage (amps) accurately. In this situation, a clamp multimeter becomes useful.
With a clamp multimeter, you can measure the current flowing through a conductor without direct contact, making it a vital tool for electrical maintenance, troubleshooting, and safety. Before knowing how to test amps with a clamp multimeter, you need to know about clamp meters and their working.
A Quick Look

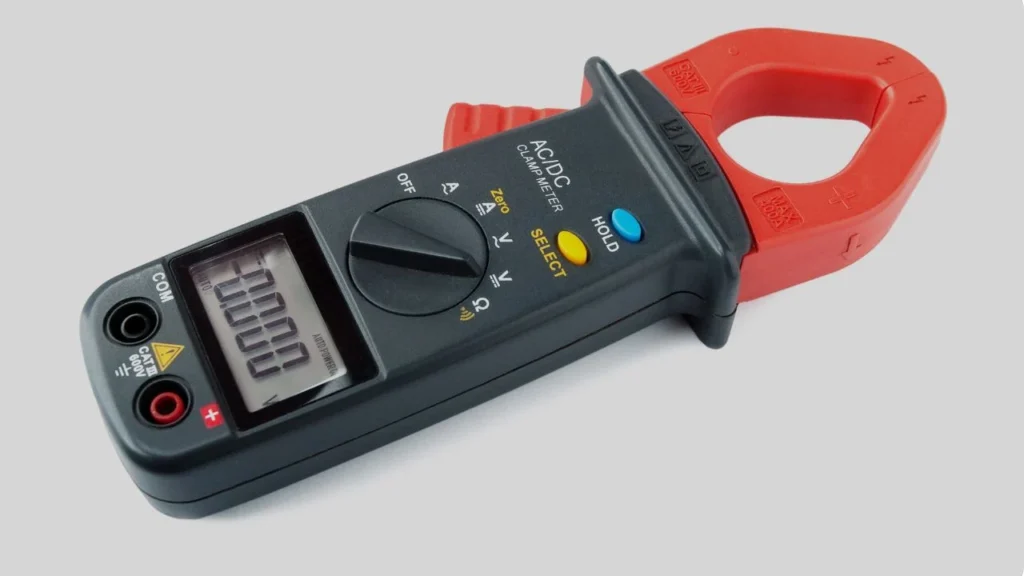

What is a clamp meter, and how does it work?
Clamp meters are handheld devices used to measure electrical current without disconnecting wires. This instrument uses a hinged “clamp” to encircle a conductor and measure the magnetic field generated by the flow of electrical current.
NOCO Boost Plus GB40
⭐ 4.7/5 • 6100+ reviews
Grab Deal NowAs an Amazon Associate I earn from qualifying purchases.
This magnetic field is then converted into a current reading, which is displayed on the meter’s digital display. The non-invasive nature of this method makes it a valuable tool for electricians and technicians when testing current in electrical circuits.
Components of a Clamp Meter
Electrical current can be measured with a clamp multimeter, sometimes called a clamp meter or amp meter. The first step to using it effectively is to understand its components.
1. Display
A clamp multimeter is an essential tool for any electrician, featuring a digital display that provides clear measurement results. With this device, you can easily read current values, voltage, resistance, and other electrical parameters. For optimal performance, especially in varying lighting conditions, it’s crucial that the display is not only clear but also large enough for quick and accurate readings. If you’re interested in comparing models, check out our guide on Evaluating Different Clamp Meters.
2. Function Selection Dial
You can select which type of measurement you want to make using the function selection dial on the clamp meter. Voltage (AC and DC), current (AC and DC), resistance, and other functions are often included. The dial must be rotated to the appropriate setting to ensure accurate readings.
3. Clamp Jaw
Known as the current clamp, the clamp jaw encircles a conductor, such as a wire or cable. The clamp meter can calculate the current by measuring the magnetic field generated by the current flowing through the conductor. A spring-loaded jaw makes it easy to open and close around a conductor.
4. Test Leads
Test leads connect to the input jacks of a clamp meter. There are two pairs of leads: one red (positive) and one black (negative). Various measurements can be made with them, such as voltage, resistance, and continuity. A test lead ensures a safe and secure connection between the clamp and the tested circuit or component.
How To Test Amps With A Clamp Multimeter?
It is easy to test amps with a clamp meter. Here I will discuss how to measure AC and DC amps with a clamp meter.
Measuring AC AMPS With A Clamp meter | Step-by-Step Guide
To diagnose electrical circuits and devices, it is essential to measure AC amps with a clamp multimeter. Following are the steps you need to follow:
Step#1. Prepare Your Clamp Meter
To begin, set your clamp meter to measure AC current. Select AC current from the function selection dial. For accurate measurements, the clamp jaw should also be completely closed and zeroed.
Step#2. Identify the Current-Carrying Conductor
Determine the conductor or wire through which you want to measure AC current. No other wires or cables must interfere with the measurement, so the clamp jaw should be positioned around this conductor. For a reliable option, consider an Economical Multimeter for DIYers that suits your needs.
Step#3. Open the Clamp Jaw
Place the clamp jaw around the current-carrying conductor by gently opening it. The conductor should be completely encircled by it. A clamp measures the magnetic field generated by a current passing through a conductor.
Step#4. Take the Reading
Observe the digital display after securing the clamp jaw by pressing the “Hold” button. The display will display the current in amperes (A). For an accurate measurement, make sure the reading is stable.
Step#5. Interpret the Reading
This value represents the AC amperes flowing through the conductor. Note this value for your records or diagnostic purposes.
Step#6. Disconnect and Close the Clamp Jaw
After you have obtained your reading, gently remove the clamp jaw from the conductor. Be sure to close the jaw completely before taking the next measurement.
Measuring DC Amps | Step-by-Step Guide
With a clamp multimeter, you can measure DC amps for a variety of applications. To perform the measurement accurately, follow these steps:
Step#1. Set Your Clamp Meter to DC Current Mode
Turn your clamp meter’s function selection dial to DC current mode to begin. In order to obtain accurate results, the meter must be configured for DC measurements.
Step#2. Identify the Current-Carrying Conductor
Locate the conductor or wire through which you wish to measure DC current. If there are other wires or cables interfering with the measurement, ensure that the clamp jaw is placed around the conductor.
Step#3. Open the Clamp Jaw
The clamp jaw should be gently opened and encircled around the current-carrying conductor. It is important that the clamp meter surrounds the conductor completely so that it can measure the magnetic field generated by the current flowing through it.
Step#4. Take the Reading
Press the “Hold” button if available or examine the digital display after securing the clamp jaw around the conductor. A DC current measurement in amperes (A) is displayed on the display. For an accurate measurement, make sure the reading is stable. For further insights into using clamp meters effectively, check out our guide on essential multimeters for car diagnostics.
Step#5. Interpret the Reading
In amperes, the displayed value represents the DC current flowing through the conductor. Use this value for diagnostics or for your records.
Step#6. Disconnect and Close the Clamp Jaw
After you have obtained the reading, gently remove the clamp jaw from the conductor. To prepare for the next measurement, secure the clamp jaw.
Measuring Inrush Current | Step-by-Step Guide
Inrush current must be measured with a clamp multimeter when dealing with devices that experience sudden spikes in current during startup. To perform this measurement accurately, follow these steps:
Step#1. Prepare Your Clamp Meter
For accurate readings, make sure your clamp meter is set to measure AC current. AC devices typically experience inrush current, so it’s important to select the correct function.
Step#2. Position the Clamp Meter
Inrush current should be measured near the device or equipment where the clamp meter will be placed. Close the clamp jaw securely so the measurement can be taken.
Step#3. Monitor the Display
When you turn on the device or equipment, you should keep your eyes on the digital display. The clamp meter will record and display the peak inrush current value during startup. Capturing inrush current is crucial because it can be significantly higher than the device’s rated operating current. For detailed insights on this process, refer to our guide on Short Circuit Detection Techniques..
Step#4. Record the Inrush Current Value
The meter displays the maximum inrush current. During startup, this measurement is valuable for understanding the device’s load and power needs.After knowing how to test amps with a clamp multimeter, if you want to measure household circuit then my next guide will help you.
Testing amps in household circuits with a clamp multimeter | Step-by-Step Guide
The ability to test amps with a clamp meter can be applied to a variety of situations. To test amps in household circuits, follow these steps:
Step#1. Safety Precautions
Wear appropriate personal protective equipment (PPE) like insulated gloves and safety glasses before testing amps in a household circuit. If you intend to test a circuit, disconnect the power source or the circuit breaker. For more on safety measures, check out our guide on Personal Protective Equipment for Electrical Testing.
Step#2. Set Up Your Clamp Meter
The clamp meter should be set to measure AC current in the household circuit. Before using the clamp jaw, make sure it is zeroed.
Step#3. Identify the Target Conductor
Find the conductor in the household circuit where you want to measure the amps. Verify that it is a single, isolated conductor and there are no other wires inside the clamp jaw.
Step#4. Open the Clamp Jaw
The clamp jaw should be gently opened and encircled around the selected conductor. Ensure that it fully encompasses the conductor, maintaining a secure connection.
Step#5. Take the Amp Reading
Observe the clamp meter’s digital display after powering on the circuit. The current flowing through the conductor will be displayed. Ensure that the reading is stable and accurate by keeping an eye on it.
Step#6. Disconnect and Close the Clamp Jaw
Remove the clamp jaw gently from the conductor after obtaining your reading, ensuring a safe and secure disconnection. For the next measurement, close the jaws of the clamp.

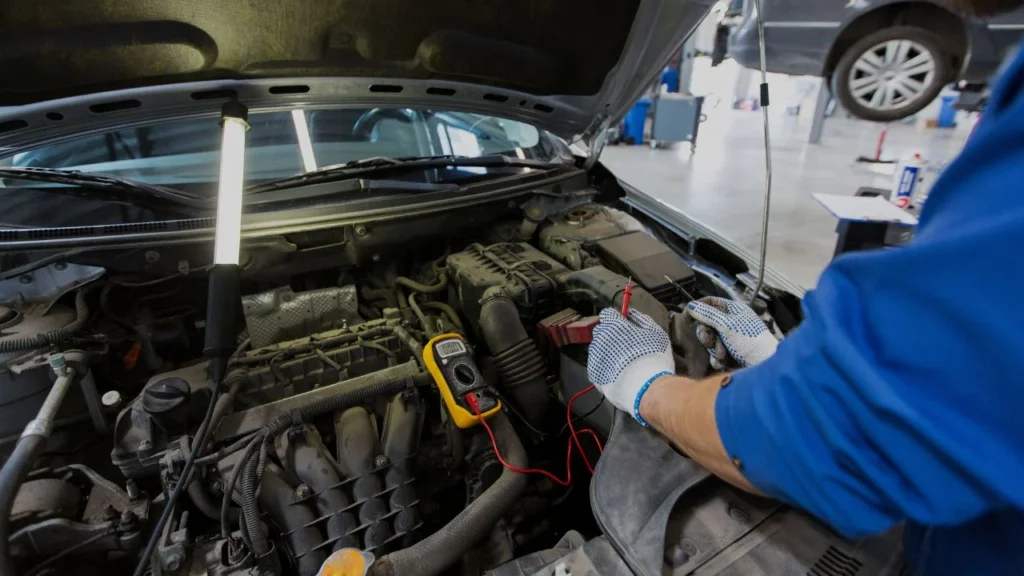

How to test amps in automotive applications with a clamp multimeter? Complete Guide
Using a clamp meter to measure amps in automotive applications is a useful skill for diagnosing electrical problems. To help you, here is a step-by-step guide:
Step#1. Safety Precautions
Ensure your safety first. Wear protective equipment, such as safety glasses and gloves. During the measurement, disconnect the vehicle’s battery to prevent electric shocks.
Step#2. Set Up Your Clamp Meter
Since most automotive applications use direct current, configure your clamp meter to measure DC current. Before using the clamp jaw, make sure it is zeroed.
Step#3. Identify the Target Conductor
Find the conductor or wire you want to measure in the vehicle’s electrical system. It should be an isolated, single conductor without interference from other wires.
Step#4. Open the Clamp Jaw
Place the clamp jaw around the chosen conductor, encircling it completely and securely.
Step#5. Take the Amp Reading
Start the engine by reconnecting the battery. Check the digital display on your clamp meter. The DC current flowing through the conductor will be displayed.
Step#6. Disconnect and Close the Clamp Jaw
Remove the clamp jaw gently from the conductor after obtaining your reading, ensuring a safe and secure disconnection. For the next measurement, close the clamp jaw.
Conclusion
Electrical items such as circuits and other household things can be tested with a clamp meter. A clamp meter is the best tool for measuring amps in automotive electrical components. After reading this article, I hope you don’t have any other questions about how to test amps with a clamp multimeter.
