How To Test Headlight Wiring With a Multimeter? Technician Guide

A functional headlight is an essential component of safe nighttime driving. Furthermore, they make our vehicles more visible to other drivers, enhancing overall road safety. The headlight system's performance depends heavily on its wiring's integrity.

A wiring issue can cause dim or flickering lights, or worse, a complete failure of your headlights, putting you and others at risk. Knowing how to test headlight wiring with a multimeter is crucial to ensuring your headlight functions correctly.

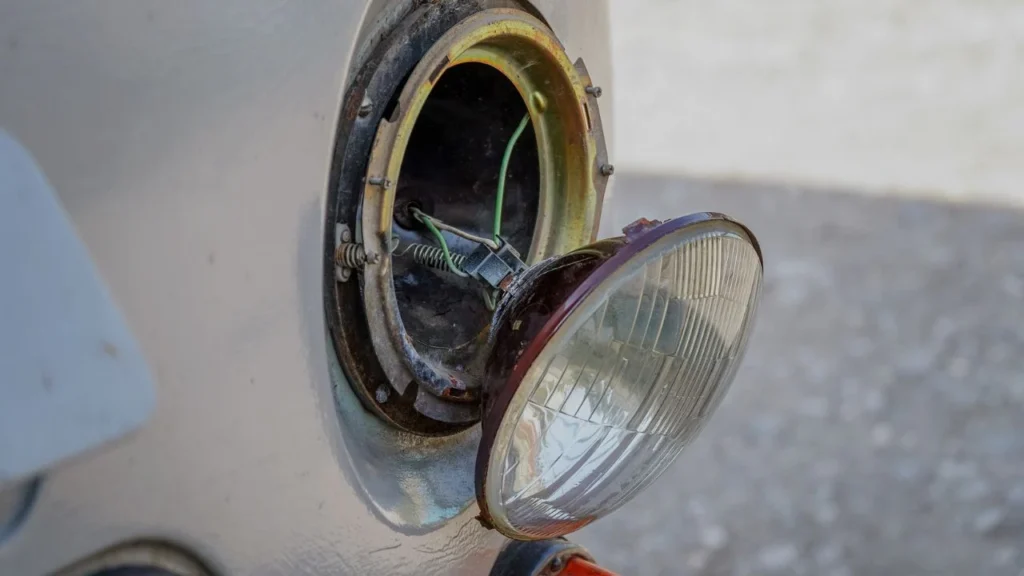

Why is my headlight wiring not working?

There are some reasons why your headlight wiring isn't working. Check out these reasons:

1. Check the Bulbs

Check the bulbs first if your headlight wiring isn't working. It is possible for bulbs to burn out or become loose over time. You can do this by accessing your headlight housing, removing the bulb, and inspecting it for visible damage. It is necessary to replace the bulb if it is darkened or if the filament is broken.

2. Inspect the Wiring Connections

Inadequate wiring connections can disrupt your headlights. Make sure all wires are securely connected. Check for loose, corroded, or damaged connectors. To reestablish proper electrical flow, fix or replace any damaged connections.

3. Check the Fuses

Fuse circuits protect headlight circuits from electrical overloads. Locate and examine the headlight fuse in your vehicle's manual. You can restore power to your headlights by replacing the blown fuse with one of the same rating.

4. Examine the Switch

A faulty headlight switch can also cause the problem. You may notice problems with other lighting functions, such as high beams and turn signals. If the switch is confirmed to be the problem, replace it.

5. Investigate the Relay

Electrical current is often controlled by relays in headlights. Check the relay related to your headlights if your wiring isn't working.

6. Battery and Alternator Health

how to check battery and alternator health

The electrical system, including the headlights, can be affected by weak or failing batteries. Check your battery and make sure your alternator is charging it correctly. Headlights can be affected by insufficient power.

7. Grounding Problems

Check your headlights' grounding points. Electrical circuits can be interrupted by inadequate grounding. All grounding points should be cleaned and secured to ensure proper contact.

Preparations Before Testing headlights wiring

Prepare your headlight wiring for testing with a multimeter before you begin. Your headlight system can be accurately diagnosed by following these steps in order to work safely and efficiently.

1-Safety Precautions

The safety of automotive electrical systems is paramount. To avoid electrical shocks or short circuits, always disconnect your vehicle's battery first. Work in a well-ventilated area and avoid smoking or using open flames, as you may be handling flammable substances. Always work on a level and stable surface; having someone nearby can be a crucial safety precaution.

2-Identifying the Headlight Wiring Components

Get to know the components of your car's headlight system. It includes the headlight bulbs, wiring harnesses, connectors, switches, and any associated relays or fuses. Knowing their location and function, you can navigate the testing process more efficiently.

3-Locating the Headlight Wiring Harness

Your headlight wiring harness is a bundle of wires that connect to your headlights. Usually, it is located near the headlight assembly or behind the headlight cover. Before testing, locate the wiring harness and inspect it for visible damage, such as frayed or burned wires. An initial visual inspection can provide insight into the condition of your headlight wiring.

4-Disconnecting the Battery

Disconnect your vehicle's battery by removing the negative (black) terminal first, followed by the positive (red).

how to disconnect the car battery

You ensure your safety during the test by cutting power to your vehicle's electrical system. To prevent accidental reconnection, secure the disconnected battery cables.


How to test headlight wiring with a multimeter?

Testing headlight wiring with a multimeter requires continuity, voltage, and resistance tests. All of these tests complete the testing of your headlight wiring. First, let's test continuity:

1-Continuity Testing

Testing the continuity of your headlight wiring is essential for assessing its integrity. The tool helps identify open circuits, which occur when there is a break in the wiring, preventing current from flowing. Follow these steps to perform continuity testing:

Testing for Open Circuits

Set Your Multimeter: Set your multimeter's dial to the continuity or "beep" setting, typically indicated by a diode or soundwave symbol. When continuity is detected, the multimeter emits a sound.

Step#1- Ground Your Multimeter: Connect your multimeter's black (negative) lead to a known ground point on your vehicle, such as the chassis or the battery's negative terminal. You can use this as a reference.

Step#2- Connect the Red Lead: Connect your multimeter's red (positive) lead to one end of the headlight wiring you want to test. It indicates continuity if you hear a continuous beep or see a value near zero ohms on the multimeter.

Step#3- Check the Entire Length: Keep the red lead in contact with the wire as you move it along the wiring. There should be consistency in the continuity. At any point where the beep or low ohm reading stops, the wire has broken or is open.

Step#4- Repeat for All Wires: All wires in the headlight system, including those leading to the high-beam and low-beam headlights, should be cleaned this way.

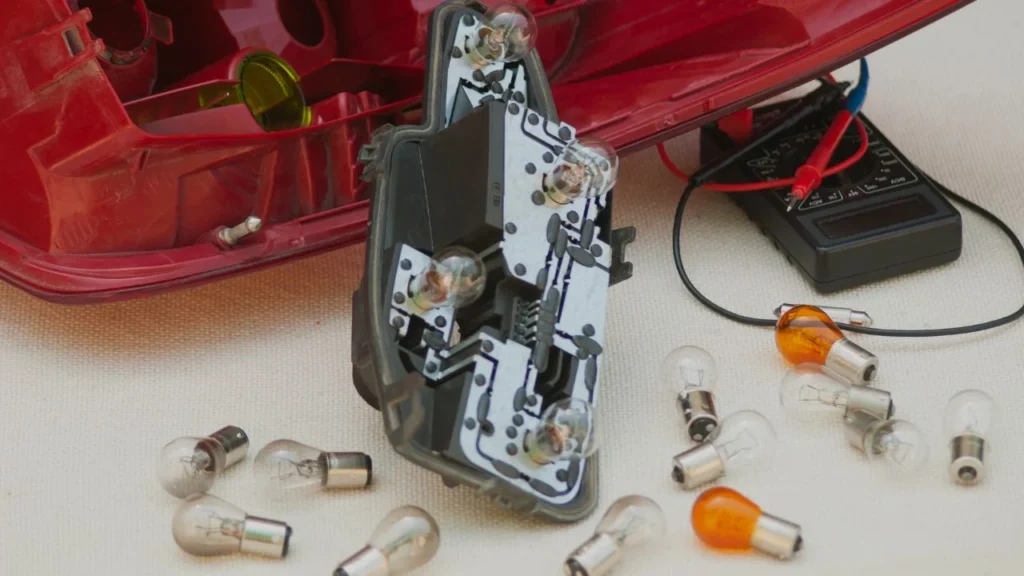

2-Testing of headlight wiring voltage

Verifying that your headlight wiring receives the proper electrical supply requires voltage testing. This step aims to ensure that your headlights have the voltage they need to work correctly. To test voltage, follow these steps:

Checking for Voltage Supply

Set Your Multimeter: Set your multimeter to DC voltage. For most vehicles, you should set it around 20 volts.

How to test headlight wiring with a multimeter

Step#1- Ground the Black Lead: Connect the black (negative) lead of your multimeter to a known ground point on your vehicle, such as the chassis or battery's negative terminal. Your voltage measurements will be based on this reference point.

Step#2- Connect the Red Lead: Test the headlight wiring by touching the red (positive) lead of your multimeter. You should connect it to the wire that supplies power to the headlights.

Step#3- Read the Voltage: The voltage reading will be displayed on the screen of your multimeter. If you are testing a headlight circuit, make sure the voltage matches the specifications in your vehicle's service manual. In general, you should see around 12V for standard headlights and 24V for high-intensity or high-beam lights. There could be a problem with the wiring or electrical supply if the voltage is significantly lower or nonexistent.

Step#4- Repeat for All Wires: In order to ensure proper voltage supply to all parts of the headlight circuit, repeat this process for each wire.

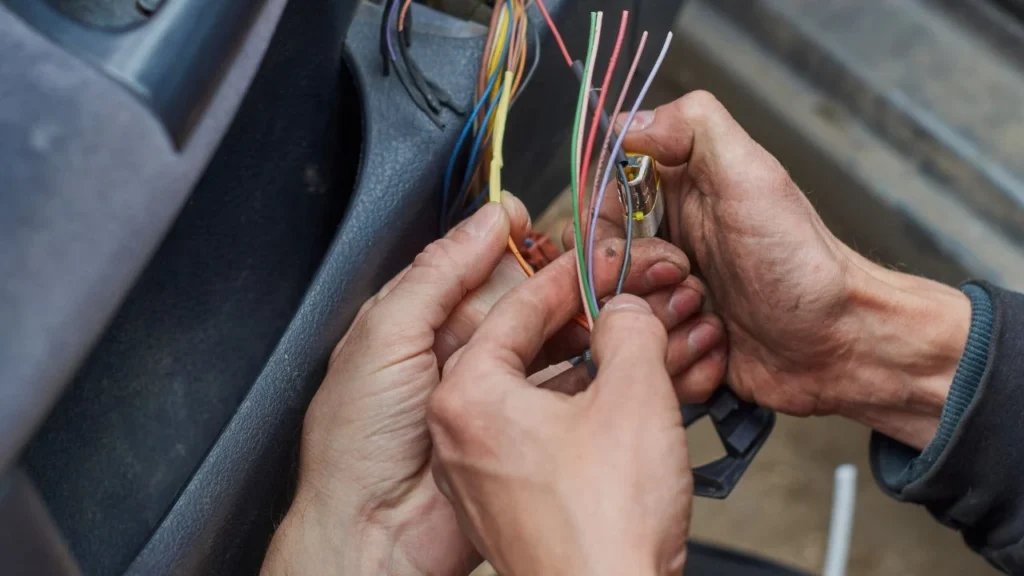

3-Testing of headlight wiring resistance

Identifying high resistance issues in your headlight wiring can impede the flow of electricity and affect the performance of your headlights. How to perform resistance testing: Here's a step-by-step guide:

Diagnosing High Resistance Issues

Make sure your multimeter is set to the resistance setting, which is typically represented by the Greek letter omega (Ω). Choose an appropriate range, such as 200Ω, a common starting point for automotive applications.

Step#1- Disconnect Power: Disconnect the power source to the headlight system. Disconnecting the battery is a good safety practice.

Step#2- Black Lead to Ground: Your multimeter's black (negative) lead should be connected to a known ground point on your vehicle, such as the chassis or the negative battery terminal.

Step#3- Red Lead to Wiring: The red (positive) lead of your multimeter should be attached to the headlight wiring you wish to test. In this way, the circuit will be completed.

Step#4- Read the Resistance: Multimeters display resistance values in ohms. Check your vehicle's service manual for specifications. A high resistance within the wiring can be detected if the resistance is significantly higher than expected or fluctuates. A high resistance can be caused by corroded connections, damaged wires, or poor connections.

Step#5- Repeat for All Wires: Repetition of this process will ensure that your entire headlight system is free of high resistance issues. After reading the last section on how to test headlight wiring with a multimeter, I hope you are ready to test your headlight wiring.


Conclusion

Safety should be your top priority before testing. Once you have performed all the tests, including continuity, voltage, and resistance tests, I recommend you contact a technician if you find any damage in the headlight wiring. An automotive technician with experience is the best option in this situation. I hope you have learned how to test headlight wiring with a multimeter if you have paid attention.
