How to Test Car AC Evaporator? Complete Guide of 2023

If you're like me, you depend on your car's air conditioning to keep you cool during those scorching summer days. Well, guess what? We'll start with what this mysterious thing even is, why you should bother testing it, how to test car ac evaporator, what tools you need, and a step-by-step walkthrough.

To make sure your AC keeps working like a charm, you need to pay some attention to its parts, and one of the key players here is the AC evaporator. In this easy-to-follow guide, we're going to walk you through the whole process of checking your car's AC evaporator.

Why Should You Care About Testing Your Car AC Evaporator?

You might be thinking, "Why should I even bother checking it?" Well, here's the deal: Testing your AC evaporator is all about keeping your cool and your wallet happy. A wonky AC evaporator can lead to weak cooling, which is a recipe for an uncomfortable ride. Plus, if it starts leaking, it's not just bad for your comfort; it's bad for your wallet because repairs can get pricey.

Signs That Your Car AC Evaporator Might Need a Check-Up

So, how do you know when it's time to give your AC evaporator some attention? Here are some telltale signs that it might need a little TLC:

  1. Weak or Warm Airflow: If you're getting lukewarm air instead of that refreshing chill, your AC evaporator might be acting up.
  2. Strange Smells: A funky smell when you crank up the AC? It could be a sign of mold or mildew hanging out in your evaporator.
  3. Mysterious Puddles: If you spot puddles of water or refrigerant under your parked car, it's a red flag that something's amiss with your AC system, including the evaporator.
  4. Lackluster Cooling: If your AC just isn't performing like it used to, it's time to investigate.
  5. Weird Noises: Hissing or gurgling sounds while your AC is running? That's not music to your ears; it's a potential evaporator problem.

Tools and Materials You'll Need

Before we dive into the testing process, let's gather our gear. You'll need a few things to get started:

1. AC Gauge Set

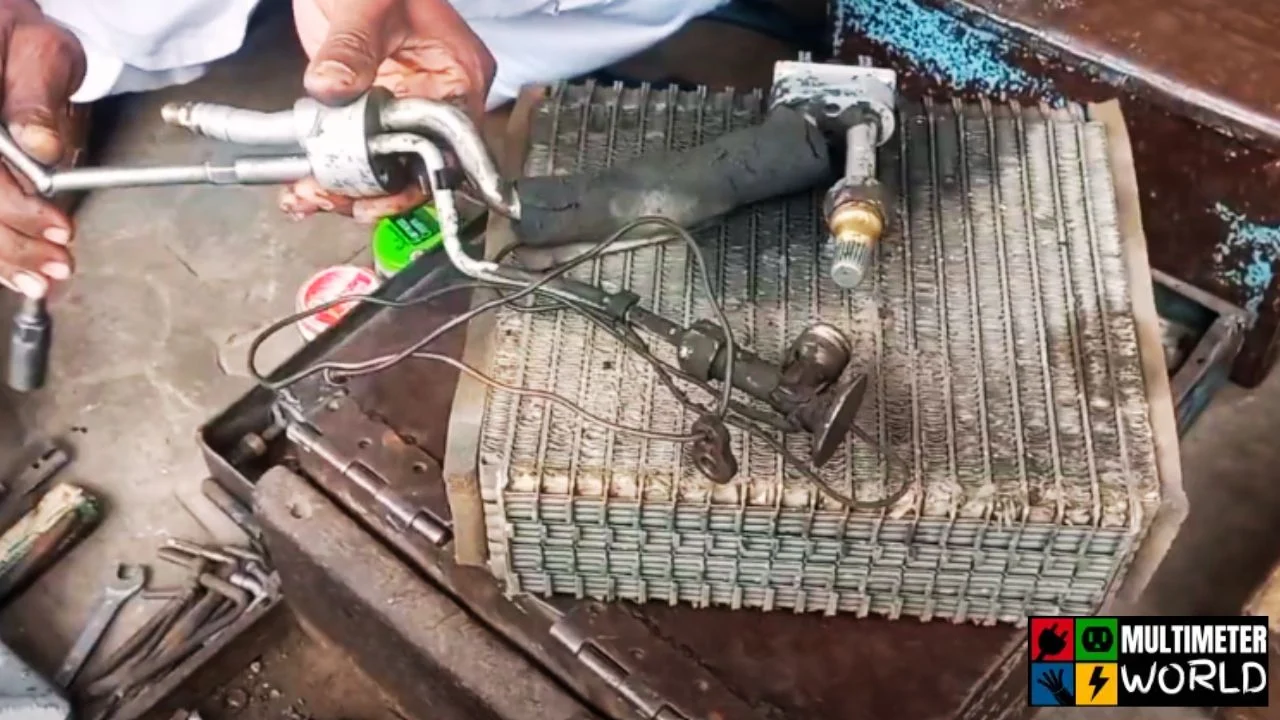

How to Test Car AC Evaporator

First up, you'll need an AC gauge set. This handy tool helps you measure your AC system's pressure and performance, giving you the inside scoop on its health.

2. Refrigerant with Leak Detection Dye

Next, grab some refrigerant that comes with a special trick - leak detection dye. This dye makes it a breeze to spot leaks in your AC system, including the evaporator.

3. Safety Gear

Safety always comes first. Don't forget to wear safety glasses to shield your eyes and gloves to keep your hands clean and protected during the process.

How to Test Car AC Evaporator: Step-by-Step Guide

You should learn how to test car ac evaporator. Alright, now that we're all geared up, let's break down the testing process step by step:

Step 1. Get Your AC Gauge Set Ready

Start by locating the service ports for your AC system. There are usually two of them, and you'll be working with the low-pressure side. The low-pressure port typically has an "L" or "Low" label.

  1. Hook up the blue hose from your gauge set to the low-pressure port.
  2. Connect the red hose to the high-pressure port, which should be marked with an "H" or "High."

Step 2. Add Refrigerant with Leak Detection Dye

With your gauge set in place, it's time to introduce that refrigerant with the magic dye into the mix:

  1. Fire up your car and crank the AC to the coldest setting.
  2. Attach the refrigerant can to the yellow hose of your gauge set.
  3. Gently open the valve on the can to let the refrigerant flow into the system. Make sure to follow the manufacturer's instructions.
  4. Keep an eye on the gauge readings as you let the refrigerant flow.

Step 3. Run Your AC

How to Test Car AC Evaporator

Now, let your car run with the AC blasting on full chill mode for about 15 minutes. This gives the refrigerant a chance to circulate and potentially reveal any leaks.

Step 4. Check the Condensation Tube

After 15 minutes of Arctic-like coolness, take a peek under your car at the condensation tube. This tube's job is to drain away excess moisture from your AC system.

Look closely for any traces of dye or wet spots on the tube. If you spot any dye, you've just uncovered a leak in your car's AC evaporator.

Troubleshooting: What to Do If You Find a Leak

So, what happens if you uncover a leak in your AC evaporator? Don't worry; we've got your back:

The first step in troubleshooting a leaking AC evaporator is to assess the severity of the issue. Not all leaks are created equal, and understanding the extent of the problem is crucial in determining your next course of action.

Step 1. Size of the Leak

The size of the leak plays a significant role in deciding how to proceed. Small leaks may be manageable with DIY repairs, while larger ones may require more extensive attention.

Action: Inspect the area around the leak and estimate the size. If it's a tiny pinhole leak, it may be repairable. However, if it's a substantial breach, replacement might be necessary.

Step 2. Location of the Leak

The location of the leak within the AC evaporator system is another key factor. Some areas may be more accessible for repairs than others.

Action: Identify where the leak is coming from. If it's in a hard-to-reach or intricate part of the evaporator, professional assistance may be the best option.

Step 3. Refrigerant Type

The type of refrigerant used in your AC system can also impact the repair process. Newer vehicles typically use R-134a, while older ones may use R-12, which is no longer widely available.

Action: Check your car's manual or consult a mechanic to determine the refrigerant type. If you need to recharge the system, ensure you're using the correct refrigerant. Now you know - how to test car ac evaporator?

Should You DIY or Seek Professional Help?

Once you've assessed the severity of the leak, it's time to decide whether to tackle the repair yourself or enlist the services of a professional. Let's explore both options:

1. DIY Repair

Should You DIY or Seek Professional Help


  • Cost-Effective: DIY repairs are often more budget-friendly as you're only purchasing materials and not paying for labor.
  • Satisfaction: Successfully fixing your car can be a rewarding experience.
  • Convenience: You can work on the repair at your own pace, provided you have the necessary tools and skills.


  • Complexity: Repairing an AC evaporator can be a complex task, especially if it involves removing the dashboard or accessing hard-to-reach areas.
  • Risk of Error: Mistakes during the repair process can lead to further damage or leaks.
  • Lack of Specialized Tools: Some repairs may require specialized tools and equipment that you may not have access to.

Action: If you have experience with automotive repairs and feel confident in your abilities, small, accessible leaks may be manageable. However, for more complex issues or if you're unsure about the repair, it's safer to consult a professional.

2. Professional Repair


  • Expertise: Certified mechanics and AC specialists have the knowledge and experience to diagnose and repair AC system issues accurately.
  • Warranty: Many professional repairs come with warranties, providing peace of mind.
  • Time-Saving: Professionals can complete repairs efficiently, minimizing downtime for your vehicle.


  • Cost: Professional repairs often come at a higher cost due to labor charges and parts.
  • Scheduling: You may need to schedule an appointment and wait for the repair to be completed.
  • Limited Control: You may have limited control over the repair process and the parts used.

Action: If the leak is substantial, located in a challenging area, or you lack the necessary skills and tools, it's advisable to seek professional help. They can ensure the repair is done correctly and efficiently.

Preparing for a DIY Repair of AC Evaporator

If you've decided to take on the DIY route for repairing your car's AC evaporator leak, here are the steps to prepare for the task:

Step 1. Gather Materials and Tools

Ensure you have all the required materials and tools for the repair, including:

  • Refrigerant with leak detection dye
  • UV light or UV flashlight
  • Safety glasses and gloves
  • Appropriate repair materials (epoxy, solder, patch kits)
  • AC system service manual for your vehicle

Step 2. Safety First

Before starting any repair, prioritize safety:

  • Work in a well-ventilated area to avoid inhaling refrigerant fumes.
  • Use safety glasses and gloves to protect your eyes and hands.
  • Follow safety guidelines in your AC system service manual.

Step 3. Locate the Leak

Use the UV light or flashlight and the leak detection dye to pinpoint the exact location of the leak within the AC evaporator.

Step 4. Repair the Leak

Depending on the size and location of the leak, use the appropriate repair method:

  • Small Pinhole Leaks: Epoxy or solder may be effective for sealing small leaks.
  • Larger Leaks: Consider using a patch kit designed for AC systems.

Step 5. Reassemble and Recharge

After repairing the leak, reassemble any disassembled components, such as the dashboard, and recharge the AC system with the correct refrigerant following the manufacturer's guidelines.

Final Words

Testing your car's AC evaporator is like giving your AC system a health checkup. Regular TLC and catching issues early can keep you cool and comfy on your journeys and save you some serious cash down the road.

So, if you suspect that your AC evaporator or any other part of your AC system isn't quite up to par, don't hesitate to seek help. Your future cool rides will thank you for it! We hope now you know “how to test car ac evaporator?”
