What Is MFD On A Multimeter and How to Use it?

By Michael

what is mfd on a multimeter

As an electrical engineer, I love explaining how things like circuits and electronics work. I write on my blog to share simple explanations, reviews, and useful tips about the latest technology.

A multimeter is the perfect tool for diagnosing electric and automotive problems. A new person doesn't know about multimeter functions and symbols, like what is MFD on a multimeter. After I bought a new multimeter, I was unsure of its function, so I searched on Google and read complete details about it. If you are unsure about the multimeter symbols and What they mean, don't worry, I will tell you.

What Is A Multimeter?

Multimeters are essential tools for measuring voltage, resistance, and current in electrical circuits. A display screen, probes, and a dial are used to select measurement functions. It provides numerical readings based on the voltage, current flow, or resistance present in a circuit by connecting the probes to specific points.

What Is A Multimeter

From household electronics to industrial machinery, this versatile tool helps diagnose electrical issues, test components, and ensure circuit operation.


Types Of Multimeter

  • Analog multimeter
  • Digital multimeter

Analog Multimeter

Types Of Multimeter

The analogue multimeter has been a staple of electrical testing for decades. A needle or pointer moves across a scale to display readings. Typically, analog multimeters measure voltage, current, and resistance.

Scale Readings: In order to take readings on these devices, you must manually select the appropriate scale from the rotating dial for each measurement function.

Needle Movement: Analog displays feature a needle that moves in response to changes in the measured parameter, allowing users to read the value directly.

Limited Precision: Due to the angle at which the needle is viewed against the scale, analog multimeters offer limited precision and are susceptible to parallax errors.

Digital Multimeter:

Types Of Multimeter

DMMs, or digital multimeters, are the modern standard for electrical measurements. Digital displays present readings as numerical values.

Numeric Readouts: With digital multimeters, you get accurate numerical readings without the guesswork of analog displays.

Auto-ranging: DMMs with auto-ranging capabilities automatically select the appropriate measurement range, improving user convenience.

Measurement Modes: Digital multimeters are versatile tools for electrical diagnosis because, in addition to voltage, current, and resistance, they often also measure capacitance, frequency, and temperature.

Data Hold and Recording: DMMs generally provide features like data hold and recording, which allows users to freeze readings or log data for later analysis.

Digital multimeters are typically more precise and accurate, which reduces the chance of measurement errors.


What Is MFD On A Multimeter? Complete Guide

A MFD is a unit of capacitance used to measure a capacitor's capacity on a multimeter. MFD is typically used when testing capacitors with a multimeter. An electric charge can be stored in a capacitor based on its capacitance. It is possible to check if a capacitor is within its specified capacitance range using multimeters equipped with capacitance measurement capabilities.

What Is MFD On A Multimeter

If you want to measure capacitance in microfarads, switch your multimeter to the MFD range. It is used by technicians to determine whether a capacitor is functioning properly or if it needs to be replaced. Using it to assess the health of capacitors in electronic circuits is a valuable tool for multimeter users when diagnosing electrical problems.

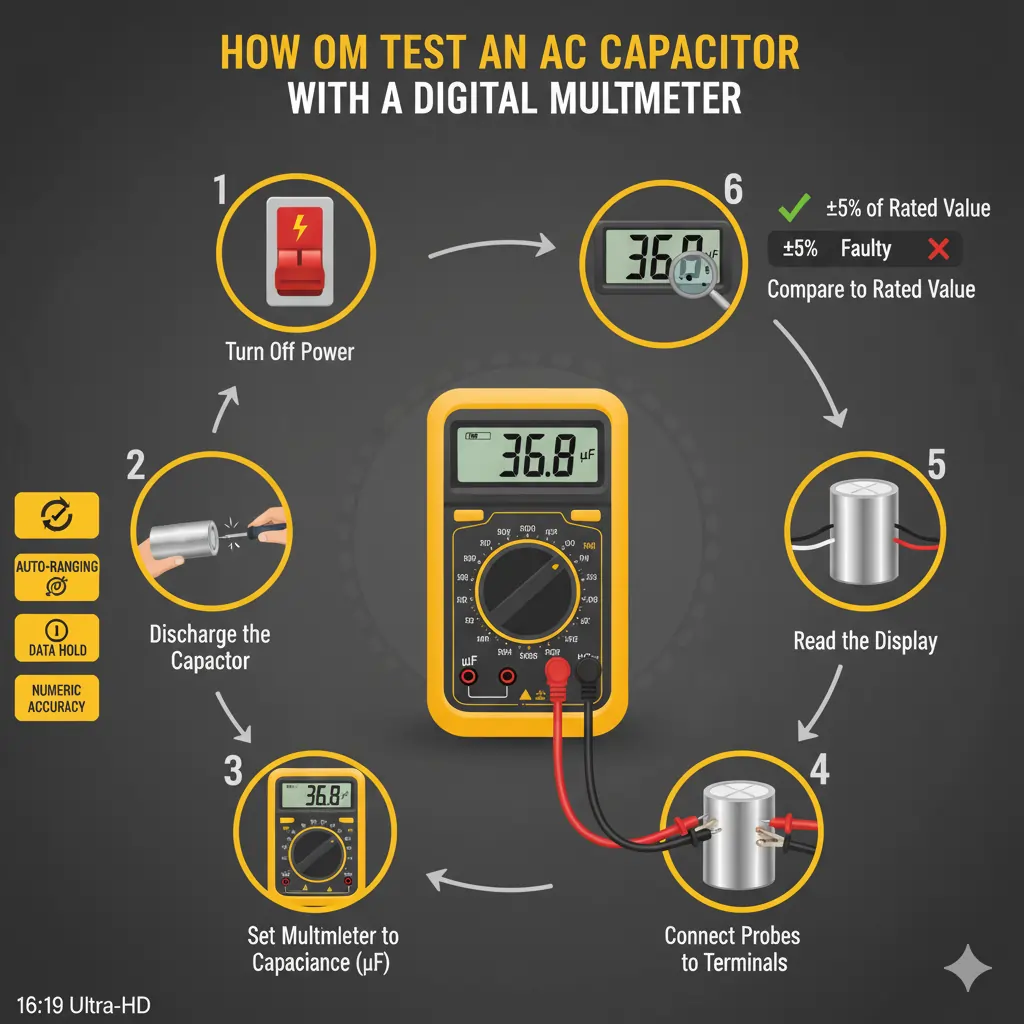

How To Measure Capacitance With A Multimeter? Only 5 Step

In electronics and electrical troubleshooting, measuring capacitance with a multimeter is essential. The capacitance of a component is measured in farads (F) or more commonly in microfarads (μF) or picofarads (pF). Follow these steps to accurately measure capacitance with a multimeter.

Step#1 Select the Appropriate Range

Make sure your multimeter is set to the appropriate range before measuring capacitance. Different multimeters measure capacitance in different ranges, usually indicated by μF or pF.

Start with a range that is higher than your expected capacitance value and work your way down if necessary. The multimeter will be protected from damage and results will be more accurate as a result.

Step#2 Turn Off Power

How To Measure Capacitance With A Multimeter

When measuring a circuit or component, always turn off the power. Avoid any residual voltage by discharging the capacitor. In this way, injuries can be prevented and measurements can be made accurately.

Step#3 Connect the Test Leads

How To Measure Capacitance With A Multimeter

Test leads should be connected to the appropriate terminals on the multimeter. There is usually a black lead to the common (COM) terminal and a red lead to the capacitance (often labeled as μF or similar) terminal. To get reliable readings, ensure a secure connection.

Step#4 Measure Capacitance

What Is MFD On A Multimeter

Test leads should be touched to capacitor terminals. Connect the wires securely. A capacitance value will be displayed on the multimeter display in microfarads (f) or picofarads (pF). Take note of the measurement.

Step#5 Analyze the Reading

Check whether the capacitance measurement is within the expected range after obtaining the capacitance measurement. Significantly different readings could indicate a faulty capacitor or a connection problem. If necessary, retest your connections. I hope you have know what is MFD on a multimeter and how to use this function for checking capacitance.

Tips and Tricks for Accurate MFD Readings

In tasks involving capacitors and electronics, it is vital to obtain accurate MFD (Microfarad) readings when using a multimeter. To ensure precise measurements, here are some tips and tricks:

Keeping your Multimeter Calibrated

Tips and Tricks for Accurate MFD Readings

It is crucial to calibrate your multimeter's MFD function regularly in order to maintain its accuracy. Calibration involves adjusting the device to a known reference, ensuring that it provides accurate readings.

Most multimeters come with a calibration feature or can be calibrated by professionals. MFD measurements are more reliable when they are calibrated frequently to eliminate errors.

Avoiding Common Measurement Errors

Measuring MFD should be done carefully to avoid common measurement errors. It is common to forget to discharge a capacitor before testing, which can result in inaccurate readings and electrical shock

Before making measurements, make sure capacitors have been safely discharged. Keep your multimeter's probes clean and in good condition, as dirty or damaged probes can affect the accuracy of your readings.

Safely Handling Capacitors

When working with capacitors and MFD measurements, safety should be a top priority. It is possible to store electrical energy in capacitors even if they are disconnected from a power source. You should wear safety glasses and gloves when handling capacitors to ensure your safety.

It is always a good idea to discharge capacitors before touching them and to double check that they are discharged. If you are uncertain about safety precautions, seek guidance from professionals or resources on capacitor safety.


Conclusion

We usually see multimeters on electricians' hands. Electricians know all the functions of a multimeter, and that's why they use reliable multimeters. But for those who aren't electricians, knowing the functions of a multimeter is essential, such as what is MFD on a multimeter .

Some advanced multimeters have MFD functionality, but not all multimeters. When measuring capacitance, digital multimeters are the most popular choice because they provide accurate readings.
