8 Best DC Clamp Meter for Solar

When working with solar installations, the right best DC clamp meter for solar is crucial for accurate measurements and troubleshooting. Among the essential tools for solar professionals, DC clamp meters play a vital role. These specialized meters are designed specifically to measure direct current (DC) in solar systems, making them invaluable for solar panel installation, maintenance, and repair.

What is a Clamp meter?

A DC clamp meter is a handheld device that uses a current transformer to measure the current flowing through a conductor without physical contact. It features a hinged "clamp" that can be opened and clamped around a wire, allowing the user to measure the current without interrupting the circuit. This makes it a convenient and safe option for solar professionals, eliminating the need to break or disconnect wires.

Buyer's Guide to Best DC Clamp Meter for Solar

When working with solar systems, having the right tools is essential. One such tool that is indispensable for solar professionals and enthusiasts alike is a DC clamp meter. A DC clamp meter allows you to measure the current flowing through a direct current (DC) circuit without breaking the circuit.

It is a crucial device for monitoring and troubleshooting solar installations. In this buyer's guide, we will explore the key features to consider when purchasing the best DC clamp meter for solar applications.

Accuracy:

Accuracy is of paramount importance when choosing a DC clamp meter for solar applications. Look for a meter that offers high accuracy, preferably with a low percentage error.

Read more about: How to test Solar panels?

Current Range:

Solar systems can generate currents from small residential setups to large commercial installations. Choosing a DC clamp meter that can measure the full range of currents you might encounter is crucial. Consider the meter's minimum and maximum current ratings and ensure they cover your needs. Additionally, verify whether the meter provides multiple current ranges or auto-ranging capabilities for added versatility.

Voltage Range:

A DC clamp meter should also offer a voltage measurement function alongside current measurement. Solar systems involve working with DC voltages, and having the ability to measure voltage accurately is crucial for diagnostics and troubleshooting. Check the voltage range of the meter to ensure it covers the typical DC voltage values found in solar applications.

True RMS:

While many DC clamp meters provide root mean square (RMS) measurements, choosing a meter that offers true RMS measurement capability is important. True RMS meters provide accurate readings even for irregular waveforms, which can occur in solar systems due to the presence of inverters and other electronic devices. This ensures your measurements are reliable and precise, even in non-linear circuit conditions.

Safety Features:

Working with electrical systems, including solar installations, involves inherent risks. Look for a meter with appropriate safety certifications, such as CAT III or CAT IV ratings, indicating its ability to withstand transient voltage spikes and provide user protection. Features like non-contact voltage detection and built-in fuses offer added safety during measurements.

Display and User Interface:

The display of a DC clamp meter should be clear, easy to read, and provide all the necessary information at a glance. Backlit displays are particularly useful in low-light conditions. Consider the size and readability of the display to ensure comfortable usage. Additionally, an intuitive user interface with easily accessible functions and buttons enhances the overall user experience.

Build Quality and Durability:

A DC clamp meter should be built to withstand the rigors of fieldwork. Look for meters made with robust materials that can withstand accidental drops or impacts. A durable housing and reinforced jaw ensure longevity.

Price and Warranty:

Lastly, consider the price of the DC clamp meter in relation to its features and capabilities. Set a budget and look for a meter with the best performance and affordability. Additionally, check the warranty provided by the manufacturer to ensure that you are protected against any defects or malfunctions.

Read more about: Best Multimeter for Solar work

Best DC Clamp Meter for Solar- Top 8 Picks

1. Fluke 393 FC Solar Clamp Meter

Introducing the Fluke 393 FC Solar Clamp Meter, the ultimate tool for technicians working in high voltage DC environments such as solar arrays, wind power systems, electric railways, data centers, and battery banks for uninterruptible power supplies. With its cutting-edge features and robust design, this clamp meter is a must-have for professionals in the field.

Features

• Thin jaw design for unhindered access to cables in crowded combiner boxes.
• Accurate and efficient measurements in tight spaces
• Test leads rated to CAT III 1500 V DC for enhanced safety on the job
• IP54 rating for resistance against dust and water
• Ideal for various environmental conditions
• Durable and dependable construction

Why Choose Fluke 393 FC Clampeter?

The Fluke 393 FC can measure up to 1500 V DC and 1000 V AC, providing accurate readings for direct and alternating currents. Whether you're dealing with DC or AC, this versatile meter can handle currents up to 999.9 A, making it suitable for various applications. The included iFlex flexible current probe extends the AC measurement capability to an impressive 2500 amps to easily tackle even the most demanding tasks.

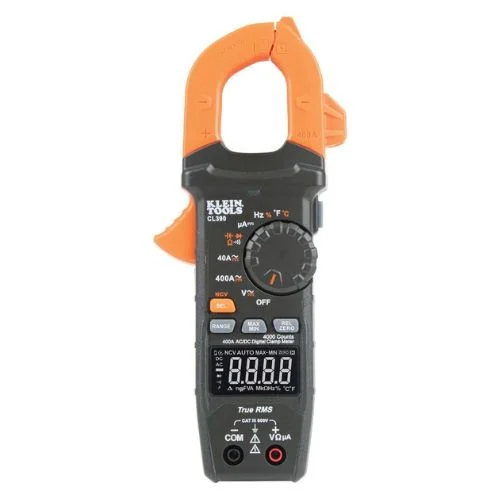

2. Klein Tools CL390 Digital Clamp Meter

Introducing the Klein Tools CL390 best DC clamp meter for solar, a feature-rich and versatile tool designed to meet the diverse needs of professionals in various industries. This automatically ranging true root mean squared (TRMS) digital clamp meter offers a wide range of measurements, including AC/DC and non-contact voltage detection via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, diodes via test leads, and temperature with the included thermocouple probe.

Features

• Equipped with advanced TRMS measurement technology for accurate and reliable results
• Versatile tool with comprehensive measurement capabilities for a wide range of applications
• Measures AC/DC and non-contact voltage via the clamp
• Precise temperature measurements with the included thermocouple probe
• Max/Min, Rel/Zero, and Data Hold capabilities for capturing and retaining critical readings
• Auto-power off function conserves battery life after 10 minutes of inactivity

Why Choose Klein CL390?

Featuring a high visibility reverse contrast LCD, the CL390 ensures optimal viewability in dark and bright ambient lighting conditions. This makes it easy to read measurements accurately, regardless of the work environment.

For added convenience and hands-free operation, the meter includes a test lead holder on the side of the clamp and is compatible with an optional magnetic hanger (Cat. Nos. 69445 or 69417). These accessories allow users to secure the meter.

3. Fieldpiece SC440 True RMS Clamp Meter

This mid-size clamp meter combines all the essential parameters in one device, making it a versatile and convenient choice for professionals in the industry. Experience higher accuracy VAC and AAC readings on Variable Frequency Drives (VFD) with the True RMS sensing technology of the SC440.

Features

• Renowned for durability and reliability, making it one of the most reliable clamp meters in the industry
• True RMS sensing technology provides accurate VAC and AAC readings on VFDs
• Inrush Current feature enables measurement of starting amp draw of compressors
• Constructed with high-impact plastic for durability in tough conditions
• Readable display in hot or cold environments
• Ensures reliability and accuracy for confident solar testing

Why Choose Fieldpiece SC440 clamp meter for solar?

It is equipped with ranges for temperature, capacitance, microamps DC for flame diode tests, and everyday electrical measurements specifically designed for solar applications.

Safety is a top priority, and the SC440 ensures peace of mind with its array of safety features. These include a high-voltage LED and beeper, a continuity warning, and a push button non-contact voltage (NCV) feature. The detachable leads and alligator probe tips allow for safe and easy one-handed testing, enhancing efficiency and convenience.

4. Fluke 325 Clamp Multimeter AC-DC TRMS

Its compact and slim design makes it easy to carry and use, while its large display ensures efficient troubleshooting. This digital clamp meter offers a wide range of measurement capabilities. The True RMS sensing meter provides accurate readings for linear and non-linear loads, regardless of the waveform, ensuring precise measurements in various electrical conditions.

Features

• Measures both AC and DC and voltage.
• Includes temperature measurement function.
• Capable of measuring frequency and capacitance.
• Enhances productivity and efficiency.
• Designed with user comfort in mind.
• Enables electricians to work efficiently.
• Eliminates the need for multiple devices.

Why Choose Fluke 325 Clamp meter?

The jaw opening of the Fluke 325 allows for convenient current measurement in conductors up to 30mm in diameter without the need to touch or interrupt the circuit. The audible continuity sensor confirms whether the circuit conducts electricity, enabling quick and reliable troubleshooting.

Read more about: CAT-III VS CAT-IV Rating

Safety is a top priority, and the Fluke 325 meets the IEC safety standard 61010-1. It is rated for CAT IV installations up to 300 volts and CAT III installations up to 600 volts, ensuring the meter's reliability and protection in demanding electrical environments.

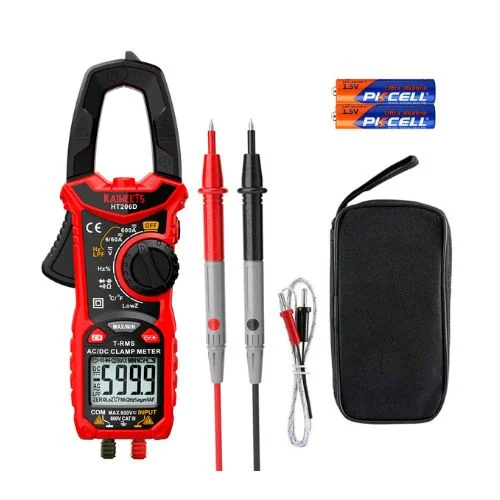

5. KAIWEETS HT206D Digital Clamp Meter

Equipped with True RMS technology, this best DC clamp meter for solar ensures precise readings even on non-linear loads, making it suitable for a wide range of applications. It can measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, and Capacitance, and even perform Diode, Continuity, and Temperature tests.

Read more about: How to test temperature sensor?

Features

• Low battery indication ensures you are aware of the battery status.
• Meets IEC 61010-1 safety standard for reliable and secure operation.
• CAT III 600V rating ensures safe usage in various electrical environments.
• Double insulation provides durability and reliability.
• 36-month service for added peace of mind.
• Access to 24/7 customer support for any assistance or inquiries.

Why Choose Kaiweets HT206D?

The LowZ and LPF features enhance the accuracy of your measurements. The low input impedance prevents false readings caused by ghost voltage, while the Low Pass Filter (LPF) ensures accurate measurement of variable frequency drive signals when assessing motors and transformers. Remember, when measuring current, clamping the meter around one of the wires and not the entire power cord is crucial.

The NCV Detection Function adds an extra layer of safety by allowing you to check the electrical status without direct contact. The meter effectively detects voltage without touching any wires by measuring the EM field intensity. Simply place your thumb on the NCV button, conveniently located on the right side, and push to activate this feature.

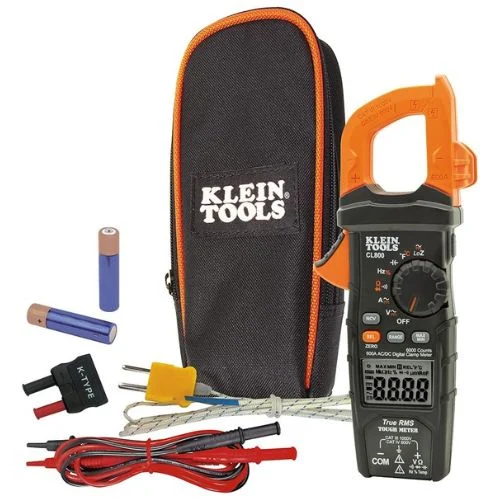

6. Klein Tools CL800 Digital Clamp Meter

Introducing the Klein Tools CL800 Digital Clamp Meter, a versatile and reliable tool for electricians seeking increased accuracy and convenience. With its automatically ranging true root mean squared (TRMS) technology, this digital clamp meter ensures precise measurements for various electrical parameters.

Features

• Suitable for demanding electrical environments
• Low battery indicator and easily accessible battery compartment
• Carefully designed and engineered by electricians, for electricians
• User-friendly interface for ease of use
• Robust construction for long-lasting performance
• Operating temperature range of 32°F to 104°F (0°C to 40°C)
• Convenient tool for professionals in the field of electrical work

Why Choose Klein Tools CL800?

Equipped with test leads, the CL800 allows you to measure AC/DC voltage, resistance, continuity, frequency, and capacitance effortlessly. Additionally, it performs diode tests to ensure the integrity of your circuits. The inclusion of a thermocouple probe enables temperature measurement, providing you with a comprehensive set of tools in a single device.

One of the standout features of the CL800 is its Low Impedance (LoZ) mode. This innovative function aids in identifying and eliminating ghost or stray voltages, ensuring accurate readings, and promoting safety during electrical work.

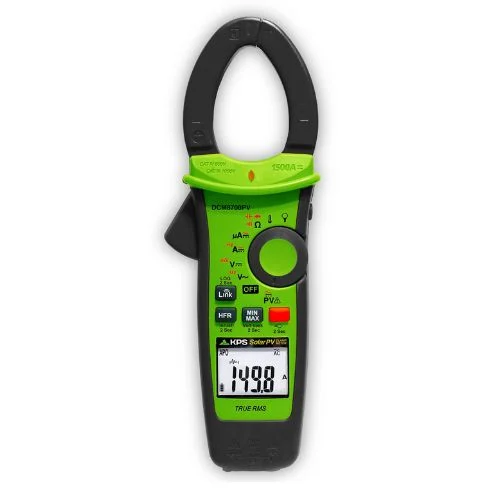

7. KPS TRMS PV Clamp Meter

Introducing the KPS TRMS PV Clamp Meter, a versatile and advanced tool for industrial applications, HVAC systems, and high voltage installations such as solar panels and wind energy projects. With its exceptional features and Bluetooth connectivity through the user-friendly "KPS Link" app, this clamp meter offers unparalleled convenience and accuracy.

Features

• Special test leads included for measuring photovoltaic panels up to 2000VDC
• Auto-ranging functionality selects the appropriate range for measured parameters automatically
• CAT IV safety rating ensures durability and reliability in demanding environments
• 6,000-count backlit display for readability in various lighting conditions
• Built-in light and clamp opening for convenience in dark or tight spaces
• The reading retention feature allows freezing the display to record critical readings

Why Choose KPS TRMS Clamp meter?

It is equipped with TRMS (True Root Mean Square) technology, this clamp meter ensures precise voltage and current measurements, making it suitable for a wide range of applications. It can measure voltage up to 1500 VAC/2000VDC, current AC/DC up to 1500A, current DC down to 4000µA, and inrush current with a response time of 100ms.

In addition to its impressive current and voltage capabilities, the KPS TRMS PV Clamp Meter provides other essential measurements. It offers resistance measurements up to 600kΩ, capacitance measurements up to 1000mF, frequency measurements up to 10kHz, and temperature measurements ranging from -40ºC to 400ºC.

8. AstroAI Digital Clamp Meter Multimeter

The AstroAI Digital Clamp Meter accurately measures AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Duty Cycle, Resistance, Diode, and Continuity and performs Live Wire Tests. This comprehensive functionality ensures you can confidently tackle a wide range of electrical tasks.

The green indicator light and slow, audible beep indicate the presence of a weak AC signal, while the red indicator light and brief beep signify a strong AC signal.

Features

• Accurate measurements for AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Duty Cycle, Resistance, Diode, Continuity, and Live Wire Tests
• Non-contact voltage testing with sound and light alarms
• Data Hold, Max/Min, and Auto power off after 15 minutes of inactivity
• Low battery indicator and continuity buzzer for added convenience
• LCD Backlit Screen and a built-in flashlight for easy use in dark working areas
• A valuable addition to any electrical toolkit

Why choose AstroAI clamp meter?

This non-contact voltage testing feature allows you to quickly identify potential electrical hazards. The meter is designed to be multifunctional and easy to read. It supports Data Hold, Max/Min, and Auto power off after 15 minutes of inactivity. The low battery indicator and continuity buzzer provide additional convenience.

It has LCD Backlit Screen and built-in flashlight ensure easy operation even in dark working areas. The ZERO function helps eliminate data errors caused by the Earth's magnetic field, enabling more accurate measurements.

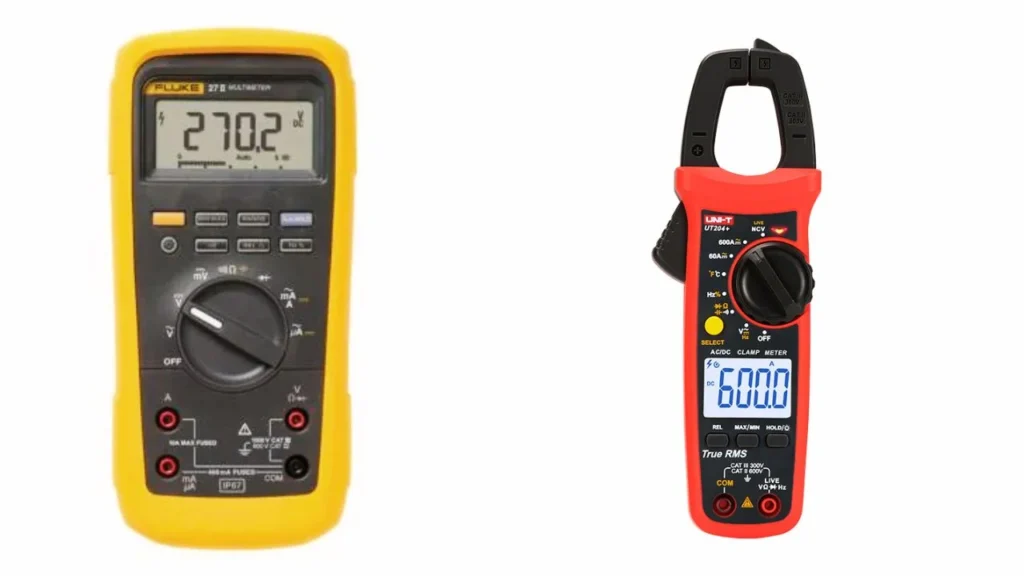

Why do professionals prefer DC clamp meters over multimeters?

For several compelling reasons, professionals in the solar industry prefer using DC clamp meters over multimeters. Firstly, DC clamp meters are designed to measure DC accurately, providing more precise readings than multimeters. This accuracy is crucial in the solar industry, where precise current measurements are required for efficient system performance and troubleshooting.

Safety

Safety is another paramount concern in the solar industry, and DC clamp meters excel. Since they do not require direct contact with live wires, professionals can safely measure current without the risk of electrical shocks or short circuits. This feature offers peace of mind and ensures the safety of professionals and the solar system.

Convenience

The convenience of DC clamp meters is another factor that makes them preferable in the solar industry. The clamp feature allows for quick and non-invasive current measurements, eliminating the need for complex wire connections and saving valuable time during installations or troubleshooting. Solar professionals can clamp the meter around the wire and obtain accurate readings without disrupting the circuit.

Troubleshooting Capabilities

Regarding troubleshooting capabilities, DC clamp meters are invaluable to solar professionals. They can help identify faulty components or detect abnormal current flows in solar systems, enabling efficient troubleshooting and maintenance. By pinpointing issues accurately, professionals can swiftly address problems, minimizing system downtime and maximizing overall performance.

Portability

Portability is another advantage offered by DC clamp meters. They are compact and lightweight, allowing solar professionals to easily carry them to different job sites. This portability ensures that professionals have the necessary tools readily available wherever they go, enhancing their productivity and efficiency.

Many DC clamp meters also have advanced features such as data logging. This functionality allows professionals to record and analyze current measurements over time, enabling better system monitoring and analysis. Professionals can identify patterns or anomalies by tracking and interpreting data trends, leading to proactive maintenance and optimized system performance.

Durability

Durability is a crucial factor for any tool used in the field, and DC clamp meters are built to withstand rugged environments. Their robust construction ensures longevity and reliability even in challenging conditions, making them a trusted companion for solar professionals in demanding work environments.

Safety Guide

It offers convenience and accuracy when troubleshooting electrical systems or performing maintenance tasks. However, prioritizing safety when using any electrical measurement device, including a DC clamp meter, is important. This safety guide provides essential guidelines to ensure your well-being and minimize the risk of accidents or electrical hazards.

Avoid Live Circuits:

Never attempt to measure current on live circuits unless you are qualified and have the necessary training to do so safely. Always turn off the power and verify that the circuit is de-energized before connecting the DC clamp meter. Remember to follow proper lockout/tagout procedures if working on electrical equipment.

Avoid Overload:

Ensure that the DC clamp meter's measurement range is appropriate for the current you are measuring. Exceeding the meter's specified range can result in inaccurate readings or damage to the device. If uncertain about the expected current range, start with the highest range and work your way down.

Proper Connection:

When connecting the DC clamp meter to the circuit, ensure that the meter's jaws or probes make secure and proper contact with the measured conductor. Verify that the conductor is clean and free from any dirt, corrosion, or insulation debris that may affect the measurement accuracy.

Keep Hands Clear:

During measurement, keep your hands and fingers clear of the DC clamp meter's jaws and any exposed conductive parts or live terminals. Accidental contact can lead to electric shock or injury. Use caution and maintain a safe distance from the measured circuit.

Maintain Grounding:

If the measured circuit is grounded, maintain proper grounding while using the DC clamp meter. Disrupting the grounding system may introduce additional safety hazards or affect the accuracy of the measurements.

Battery Replacement:

If your DC clamp meter uses batteries, follow the manufacturer's instructions for battery replacement. Use only the recommended battery type and ensure proper polarity. Dispose of old batteries following local regulations.

Storage and Transportation:

When not in use, store the DC clamp meter in a dry, dust-free environment, away from extreme temperatures, moisture, direct sunlight, and corrosive substances. Use the provided carrying case or protective pouch to prevent physical damage during transportation.

Regular Calibration and Maintenance:

To maintain accuracy and reliability, schedule periodic calibration and maintenance of your DC clamp meter as the manufacturer recommends. Follow the specified calibration procedures or consult a qualified professional for assistance.

Most Common DC Clamp Meter Problems:

Incorrect reading:

One of the most common issues is inaccurate readings. This can occur due to incorrect calibration, poor contact between the clamp and the conductor, or interference from external magnetic fields.

Battery issues:

DC clamp meters rely on batteries for power. Problems can arise if the batteries are low or depleted, leading to inaccurate readings or the device not powering on.

Calibration problems:

Over time, DC clamp meters can lose calibration, resulting in inaccurate measurements. Regular calibration checks and adjustments are necessary to ensure accurate readings.

Low-resolution display:

Some DC clamp meters may have a low-resolution display, making it difficult to read the measured values accurately. This can lead to errors in the interpretation and recording of data.

Poor build quality:

Cheaply made or low-quality DC clamp meters may suffer from poor build quality, leading to problems like loose connections, malfunctioning buttons, or fragile components.

Limited range:

DC clamp meters typically have a limited measurement range. If you exceed the specified range, the meter may provide inaccurate readings or even fail to measure.

Interference from nearby conductors:

When measuring DC, interference from nearby conductors carrying alternating current (AC) can affect the accuracy of the clamp meter readings. Shielding or proper positioning of the meter can mitigate this issue.

Environmental factors:

Extreme temperatures, humidity, or other environmental conditions can impact the performance of DC clamp meters. Some meters may not be designed for certain environments, leading to errors or damage.

Damaged or worn-out clamps:

The clamps on a DC clamp meter can get damaged or worn out over time. This can result in poor contact with the conductor, leading to inaccurate measurements or no readings.

Lack of user knowledge or training:

Problems with DC clamp meters often arise due to user error or lack of understanding. Operating the meter without proper knowledge of its functions, features, or limitations can lead to incorrect readings or misuse.

Conclusion (Best DC Clamp Meter for Solar)

In conclusion, a best DC clamp meter for solar is a valuable tool for monitoring and measuring electrical currents in solar systems. It offers a convenient and non-invasive method for measuring DC flow without interrupting the circuit. The clamp meter can accurately measure low and high currents, making it suitable for various solar applications.

Using a DC clamp meter, solar installers and maintenance professionals can easily identify any issues or imbalances in the solar system. This allows for prompt troubleshooting and ensures the system operates at peak efficiency. Measuring current flow helps detect problems such as loose connections, damaged components, or excessive current draw.

When selecting a DC clamp meter for solar applications, it is important to consider factors such as accuracy, range, resolution, safety features, and ease of use. Choosing a reliable, high-quality meter will ensure accurate measurements and provide a long-lasting tool for solar professionals.

Frequently Asked Questions:

Do clamp meters work with DC?

Yes, clamp meters do work with DC (direct current). Clamp meters are versatile electrical measuring instruments that measure various electrical parameters, including current, voltage, and resistance.

Electricians and technicians commonly use them to measure AC (alternating current) in electrical systems. However, many clamp meters also can measure DC. Their jaw-like clamp can be clamped around a conductor, allowing for non-contact current measurements.

Is a clamp meter AC or DC?

A clamp meter can measure AC (alternating current) and DC (direct current) currents. It is a versatile instrument commonly used by electricians and technicians to measure electrical parameters in various applications.

The clamp meter has a jaw-like clamp that can be clamped around a conductor, allowing for non-contact current measurements. This feature enables it to measure AC currents by detecting the alternating magnetic field generated by the current flowing through the conductor.

How do you measure DC with a clamp meter?

When measuring DC with a clamp meter, there are several key steps. First, ensure the clamp meter is set to the appropriate mode for DC measurement. Next, open the clamp meter's jaws and position them around the conductor through which the DC current is flowing. Close the jaws securely to establish a reliable connection. The clamp meter's display will show the measured DC current value.
