How to Check Wire Continuity with Multimeter?

By shafiq usama

How to Check Wire Continuity with Multimeter

As an electrical engineer, I love explaining how things like circuits and electronics work. I write on my blog to share simple explanations, reviews, and useful tips about the latest technology.

How to check wire continuity with multimeter? This is the most common question for a beginner. "To check wire continuity, set the multimeter to continuity mode, touch probes to wire ends, and observe the reading. If there's continuity, the wire is intact".

Wire continuity is a crucial aspect of electrical and electronic systems. Ensuring that wires are intact and free from breaks or interruptions is essential for proper functioning and safety. One effective tool for checking wire continuity is a multimeter. We will discuss the basic process of how to check wire continuity with multimeter.

Before diving into checking wire continuity, it is important to grasp the concept of continuity itself. Continuity refers to the unbroken flow of electric current through a wire. When a wire is continuous, there are no interruptions or breaks within its length.

Gathering the Required Tools

To begin checking wire continuity, you will need the following tools:

Multimeter:

Select a multimeter that has a continuity testing mode. This mode emits an audible sound when there is continuity in the circuit.

Read More about: Best Multimeter for Electrical Engineers
Test leads:

These cables with probes connect the multimeter to the wire being tested.

How to Check Wire Continuity with Multimeter- Step by Step Guide

Turn off the power:

Always ensure you turn off the power to the circuit or device you are testing before starting any electrical work. Safety should always be your top priority.

Select continuity mode:

Set your multimeter to the continuity testing mode. A diode symbol or an audio signal symbol usually represents this mode.

Testing Wire Continuity

Ensure the wire you test is disconnected from any power source or device.

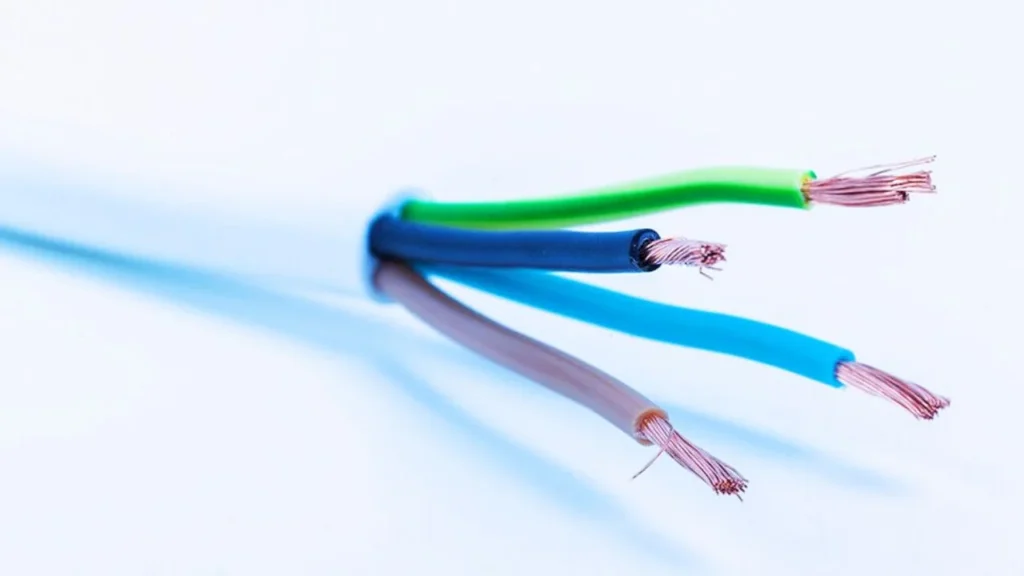

Expose the wire ends:

If the wire has insulation covering its ends, strip off a small section from each end to expose the bare metal.

Connect the multimeter:

Take the multimeter test leads and connect one lead to each exposed wire end. In most cases, the red lead is connected to the positive (+) terminal, while the black type lead is connected to the negative (-) terminal.

Activate the continuity test:

With the test leads properly connected, touch the probe tips together. The multimeter should emit a continuous beep, indicating a closed circuit or continuity.

Test the wire:

Now, touch the probe tips to each exposed end of the wire you are testing. If the wire is continuous without any breaks, the multimeter will emit a continuous beep. If the wire breaks or interruptions occur, the multimeter will remain silent, indicating no continuity.

Troubleshooting Wire Continuity Issues

Locating the break:

If the multimeter does not detect continuity in a wire, the next step is to locate the break. Inspect the wire visually and look for any signs of damage, such as cuts, fraying, or burnt sections. Gently flex the wire along its length to identify any weak spots that may indicate a break.

Repair or replace:

If you find a break, you can attempt to repair the wire by stripping the damaged section and reconnecting it. However, replacing the entire wire is often more effective and safer to ensure proper continuity.

Tips for Successful Wire Continuity Testing

How to check wire continuity with multimeter? Here are the tips:

Clean probe tips:

Keep the probe tips of your multimeter clean and free from debris. Dirty or corroded probe tips can affect the accuracy of your continuity testing.

Double-check connections:

Ensure the test leads are securely connected to the wire ends and the multimeter. Loose connections can lead to inaccurate readings.

Test multiple points:

To ensure thorough testing, touch the probe tips to multiple points along the wire's length, especially if the wire is long or complex.

Test both directions:

When testing a wire, remember to test continuity in both directions. Sometimes, a break might only be detectable when the current flows in a specific direction.

Read more about: 10 Best budget multimeters of all time

How is the continuity of a wire measured?

The continuity of a wire is a critical aspect of electrical systems, as it determines whether an uninterrupted path exists for the flow of electric current.

Measuring continuity allows for identifying open circuits, faulty connections, or broken wires, enabling troubleshooting and maintenance activities. Various methods are employed to measure continuity, each with advantages and applications.

Using a multimeter

One of the most typical techniques to measure continuity is using a multimeter. A multimeter is a versatile electronic device that combines multiple measurement functions into a single instrument.

The multimeter is set to the continuity mode to measure continuity, often indicated by a diode symbol or an audible beep icon.

When the multimeter test leads are connected to the ends of a wire or a circuit, a low-resistance path is established. If continuity exists, the multimeter emits an audible beep or displays a visual indicator indicating the wire is continuous. If there is a break or a high resistance in the wire, the multimeter will not emit a beep, indicating a lack of continuity.

Using a continuity tester

Another method to measure continuity is the use of a continuity tester. A continuity tester is a simple device designed specifically for this purpose. It consists of a battery, a light bulb or an LED, and a pair of test leads.

When the test leads are connected to both ends of a wire or a circuit, the battery completes the circuit, and if continuity exists, the light bulb or LED lights up. This provides a visual indication of continuity.

Using a Circuit tracer

Circuit tracers are another valuable tool for measuring continuity, particularly in complex electrical systems. These devices can identify and trace the path of wires within walls, floors, or other concealed locations.

Circuit tracers work by inducing a signal into the wire or circuit and detecting the corresponding signal at various points along its path. If the signal is detected consistently throughout the wire, continuity is confirmed.

Read More about: How to test switch or circuit breaker

How much continuity should a wire have?

Continuity is an important aspect of electrical systems, particularly regarding wires and connections. A conductor, such as a wire, is considered continuous when an electric current flows unbrokenly through it.

As a result, there are no breaks in the current path, allowing electricity to flow freely and accomplish its intended purpose. Wires act as conductors in electrical circuits and carry electrical current from one terminal point to another.

The wire must exhibit a high level of continuity to transmit electricity effectively.

As a result, any physical or electrical obstructions that may impede current flow should be removed from the wire. Any interruption in the continuity of a wire can lead to issues such as voltage drops, circuit malfunctions, or even complete failure of the system.

The importance of continuity becomes evident when considering the various applications of electrical systems. For instance, in residential wiring, continuity is crucial to ensure that power is delivered efficiently to all electrical devices and appliances.

Some important aspects regarding Continuity

Loose connection

A break or loose connection in a wire could result in losing power to a particular outlet or an entire house section. Similarly, maintaining continuity is vital for properly functioning machinery, equipment, and systems in industrial settings or power distribution networks.

how-to-check-wire-continuity-with-multimeter-1

To achieve and maintain continuity in wires, several factors must be considered.

Firstly, the wire should be high quality and designed to carry the intended current without degradation or excessive resistance.

Choosing the appropriate wire gauge for a given application is essential to prevent overheating and voltage drops. Inadequate wire size can result in increased resistance and reduced performance.

Proper installation techniques

Proper installation techniques also contribute to continuity. Wires must be correctly stripped, ensuring sufficient contact between the conductor and the terminal or connector.

If the wire is inadequately stripped, loose strands or insulation may interfere with the electrical connection, leading to poor continuity or potential safety hazards. Furthermore, using appropriate connectors and terminal blocks, along with secure fastening mechanisms, helps maintain a reliable and continuous electrical path.

Regular inspection and maintenance

Regular inspection and maintenance are crucial for ensuring continuity in wires. Over time, wires may be subject to wear and tear, environmental factors, or mechanical stress, which can weaken the connection points or compromise the insulation.

Regularly checking for damage symptoms, such as frayed wires, loose connections, or corrosion, can help identify and address potential continuity issues before they escalate into larger problems. Additionally, periodic testing using tools like multimeters or continuity testers can provide a quick and effective means of verifying the integrity of the wiring.

However, even in these cases, it is crucial to ensure continuity is reestablished when the switch is not open or the fuse is intact.

Difference between continuity and resistance readings

While continuity and resistance readings are interconnected, there are distinct differences between the two concepts:

Continuity Readings

Continuity refers to the unbroken flow of electrical current in a circuit. It determines whether a circuit is complete or has a break or open connection. Continuity readings identify faulty connections, damaged wires, or other interruptions in a circuit's path. This is crucial for ensuring the correct functioning of electrical systems and preventing accidents.

Purpose:

The primary purpose of continuity readings is to confirm the presence of a continuous path for electric current. It helps determine if a circuit is complete, ensuring that electrical signals can flow uninterrupted from one point to another.

Measurement Technique:

To measure continuity, a multimeter or continuity tester is employed. These devices send a small amount of current through the circuit and detect whether it can flow freely or encounters any resistance. A closed circuit, with no breaks or interruptions, will show a low resistance reading, indicating continuity. Conversely, an open circuit will display a high resistance reading, indicating a lack of continuity.

Resistance Readings

Resistance refers to the opposition offered by a material or component to the flow of electrical current. It quantifies the extent to which a material restricts the flow of electricity.

Purpose:

Resistance readings measure the level of opposition to current flow within a circuit or component. This information helps assess the performance and efficiency of electrical devices, identify faulty components, and calculate power dissipation.

Measurement Technique:

Resistance is measured using a multimeter or an ohmmeter. These instruments apply a known voltage across the component or circuit and measure the resulting current. By employing Ohm's law (V = IR), the resistance value can be calculated as the ratio of voltage to current. A higher resistance reading indicates greater opposition to current flow, while a lower resistance reading implies better conductivity.

FAQs

What is the symbol for continuity?

The symbol for continuity is a straight line with a small gap, often represented by two overlapping lines with a small break in between. Here is an ASCII representation of the continuity symbol:

OL and Ω

It signifies that the current can flow freely from one point to another without interruption or resistance.

Can I check continuity with voltage?

Yes, you can check continuity with voltage. When testing for continuity, you verify if there is a complete path for the current flow between two points. Voltage can be used to check continuity because it represents the main potential difference between two points in a circuit.

What is the Ohm for continuity?

The unit of measurement for continuity is not the Ohm (Ω). Ohm is the unit for electrical resistance. Continuity is a measure of whether a circuit or path has an uninterrupted flow of current, indicating a low or no resistance between two points.

When testing for continuity, you typically use an ohmmeter or a multimeter in the continuity mode. The meter will indicate continuity with a beep or a visual indication rather than providing a specific resistance value in ohms. The purpose is to confirm the assurance of a complete electrical path, not to measure the exact resistance value.

Conclusion

Checking wire continuity is an essential task for maintaining electrical and electronic systems. By using a multimeter and following the step-by-step process outlined in this article, you can quickly identify any breaks or interruptions in the wire. Regularly checking wire continuity ensures proper functioning and enhances safety in various applications, ranging from household wiring to complex electronic circuits. We hope you know how to check wire continuity with multimeter.
