How To Test A Fuel Rail Pressure Sensor With A Multimeter?

Do you know how to test a fuel rail pressure sensor with a multimeter? In this article, we will discuss the steps that require for Fuel rail pressure sensor checking. Testing the Fuel rail pressure sensor is a crucial part of an engine’s operation. This sensor measures how much fuel is delivered to the machine and how quickly it is delivered. The engine may run poorly or fail if the sensor is not functioning correctly.

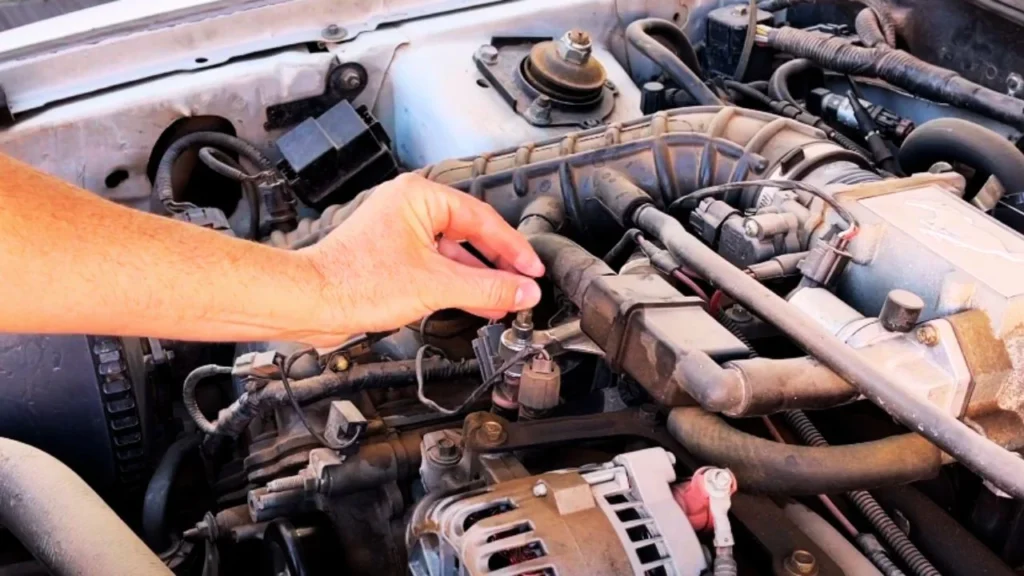

How does the Fuel Rail Pressure Sensor work?

Modern fuel injection systems require a Fuel Rail Pressure Sensor. It measures the pressure of fuel in the fuel rail, which is the pipe that delivers fuel to an engine’s fuel injectors. Sensors utilize diaphragms or strain gauges that deform when pressure changes. As a result of this deformation, an electrical signal is generated, which is then transmitted to the engine control unit (ECU) for processing.

To precisely control the amount of fuel delivered to the engine, the ECU uses data from the Fuel Rail Pressure Sensor. Fuel injection timing and duration are adjusted by the ECU when the pressure sensor detects a change in fuel pressure. As a result, the engine receives the optimal amount of fuel for efficient combustion, reducing emissions and improving fuel efficiency.

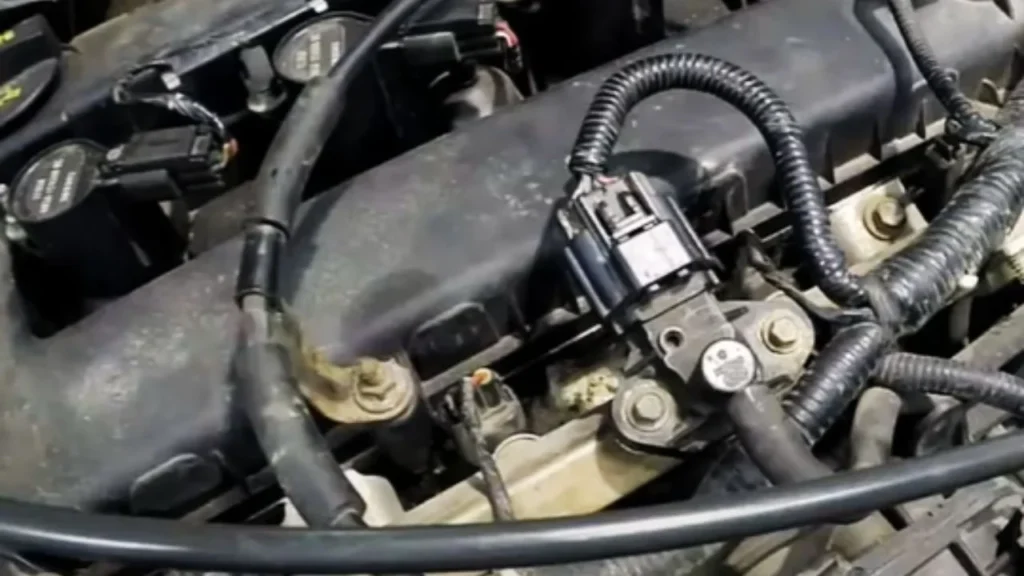

Signs and Symptoms of a Faulty Fuel Rail Pressure Sensor

Various drivability issues can be caused by a faulty fuel rail pressure sensor. The following are the key signs and symptoms to watch out for:

1. Poor Fuel Efficiency:

It is possible for the fuel rail pressure sensor to malfunction, causing the engine control unit (ECU) to send incorrect data, resulting in either too much fuel or too little fuel being delivered to the injectors. You may have to pay more for gas as a result of poor fuel efficiency.

2. Engine Misfires:

When the air-fuel mixture in one or more cylinders fails to ignite properly, misfires occur. If the fuel rail pressure sensor malfunctions, this mixture can be disrupted, resulting in engine misfires, which can lead to rough idling or loss of power.

3. Hard Starting or Stalling:

A faulty sensor can cause difficulty starting your vehicle or random stalling. Engine performance may be affected if the sensor sends incorrect pressure readings to the ECU.

4. Reduced Engine Performance:

It is possible for a malfunctioning fuel rail pressure sensor to adversely affect the overall performance of an engine. When driving, you may notice a decrease in acceleration, sluggishness, or an overall lack of power.

5. Illuminated Check Engine Light:

Sensor failures can be detected by onboard diagnostics in modern vehicles. Having a malfunctioning fuel rail pressure sensor will cause your dashboard’s check engine light to illuminate.

6. Increased Emissions:

A faulty sensor can result in an imprecise fuel mixture, which can increase emissions. Environmental pollution can result from failing emissions tests.

7. Rough Idling:

If your fuel delivery is inconsistent due to a malfunctioning sensor, your vehicle may feel unstable while stopped or parked.

How To Test A Fuel Rail Pressure Sensor With A Multimeter?

Here are the following steps you need to follow while testing

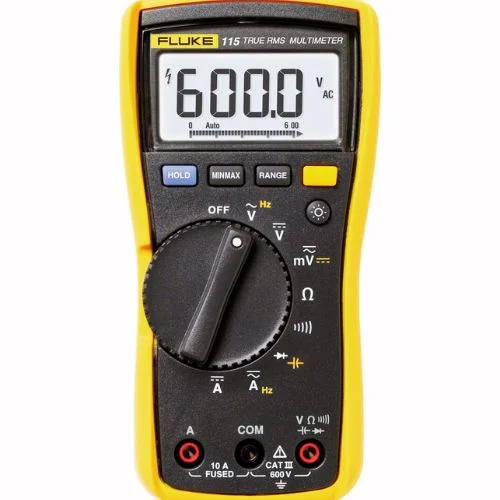

Step#1 Choose a Multimeter

Make sure you have a multimeter that allows you to test easily before you begin testing. Take a new multimeter before testing if yours is not in good condition. This will help you in testing the fuel rail pressure sensor.

Step#1 Locate the fuel rail pressure sensor:

Your rail’s fuel rail pressure sensor must first be located. Engines powered by gasoline and diesel contain pressure sensors. It is located in the center of the fuel rail. The module attached to the ECU (engine control unit) can also be seen.

Step#2 You need to remove the sensor:

Once the sensor is located, you will need to remove it. It can be done by disconnecting the equilibrium account Finger from that moment, and the pressure drops; the ECU will measure how much fuel is needed.

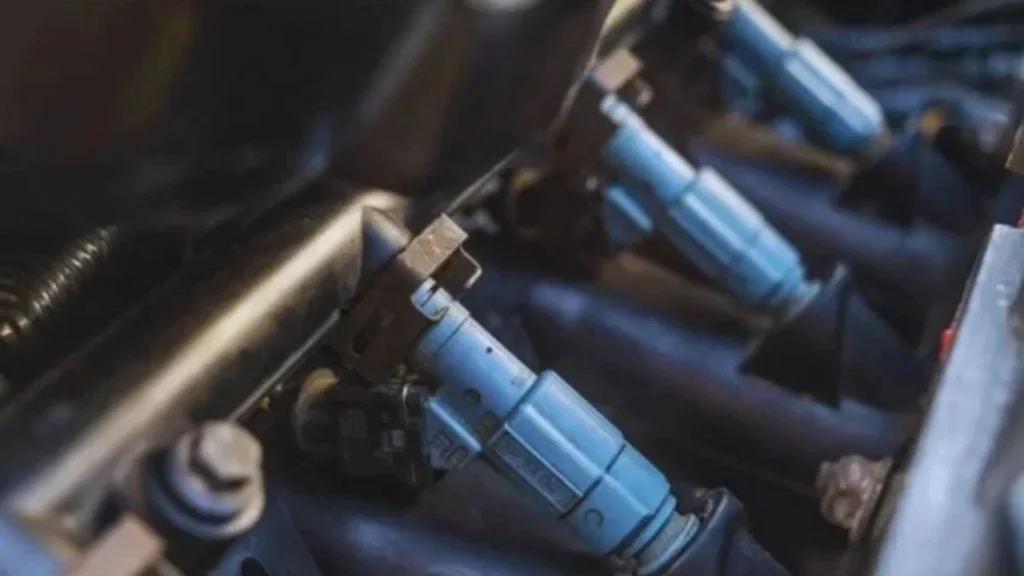

Step#3 Observe the sensor visually:

How To Test A Fuel Rail Pressure Sensor With A Multimeter

Once the sensor has been removed, you should inspect it for any signs of damage. The sensor is typically a metallic cylinder with a small hole near the end. If there is any damage, such as cracks or dents, you will need to replace it.

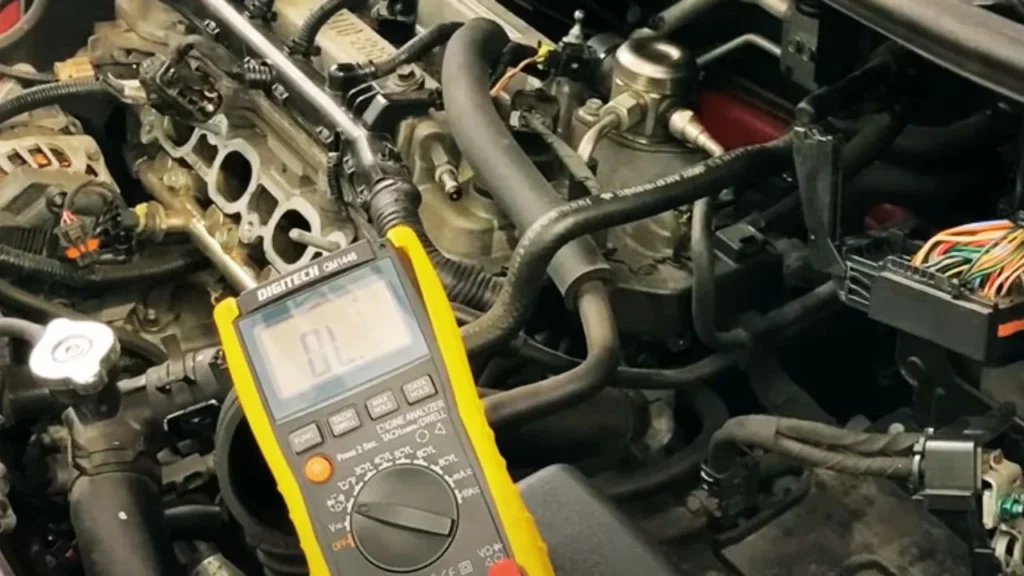

Step#4 Connect your multimeter to the sensor:

Next, you must connect your multimeter to the fuel rail pressure sensor. Usually, this can be done by attaching the positive and negative probes to the terminals on the sensor. Ensure you are not touching any other metal surfaces, as this may interfere with your readings.

Step#5 Measure the pressure:

Now that your multimeter is connected to the sensor, you can measure the pressure. Set the correct pressure range depending on how your meter is calibrated. Once this is done, you should see how much pressure your engine produces.

If you notice any discrepancies in the readings or if the sensor is not functioning correctly, you may need to replace it. To do this, you must connect your multimeter to the new sensor and repeat the same process. Your engine should run smoothly and efficiently with a properly functioning fuel rail pressure sensor.


No, driving a vehicle with a failed fuel rail pressure sensor is unsafe. This sensor monitors the pressure of the fuel in the rail and helps regulate how much power is sent to the engine. If this fails, it can affect how well your car runs or cause damage to other components in your machine, such as catalytic converters or injectors.


In addition to being unsafe, driving a car with a failed fuel rail pressure sensor can increase emissions due to poor combustion and may also result in higher costs for repairs down the line. You must get it fixed as soon as possible by a qualified technician who knows how these sensors work and can diagnose any underlying issues that might be present.

If left unchecked, faulty fuel rail pressure sensors can lead to increased emissions levels which could be damaging both locally and globally by negatively impacting air quality; this could result in restrictions on the use of roads or highways where you live if emission laws are violated too often due to excess pollution caused by malfunctioning cars.

It’s best practice not only for yourself but also for those around you – including people living near busy roads – that you get your vehicle checked out at once when there’s an issue with its fueling system (such as malfunctioning fuel rail pressure sensors). Doing so will help reduce harmful gas emissions into our atmosphere while ensuring that the best performance from your automobile is achieved at all times.


The best time to replace a fuel rail pressure sensor is when any of the following conditions arise:

1. When your vehicle’s dashboard displays a warning light indicating low fuel rail pressure. It could mean that your current sensor has failed or is malfunctioning, so it should be replaced immediately.

2. If you’re experiencing difficulty starting the engine or lack of power from the engine, it could be due to a faulty fuel rail pressure sensor and may require replacement.

3. You have recently done other tune-ups on the car, such as changing spark plugs and filters, which can cause issues with how much fuel reaches the injector and will require replacing the old fuel rail pressure sensor with a new one to ensure that the appropriate amounts of air-fuel mixture effectively get combustion chambers for optimal performance from vehicle’s engine system.

However, note that replacing an old fuel rail pressure sensor comes with its risks. As mentioned above, this component ensures the proper air-fuel mixture ratio reaching the combustion chamber for optimal performance. Still, installation is not done correctly. In that case, this could significantly damage other components, including cylinders and valves, due to improper delivery of appropriate mixtures during the combustion process.

That said, always entrust replacement jobs only to certified mechanics who understand the technical intricacies involved in such complicated tasks and can execute them while adhering to the highest standards of safety rules and regulations associated with the certifications they possess!


I hope after reading this guide are able to answer this query; how to test a fuel rail pressure sensor with a multimeter. Testing your fuel rail pressure sensor with a multimeter is essential in ensuring that your vehicle is functioning correctly and running efficiently. If you notice any issues with how your car runs or if there is a warning light indicating low fuel rail pressure, it’s essential to seek professional help from a qualified technician right away to avoid any additional damage or further complications. With the right tools and expertise, you can rest assured that your car will run at its best in no time.
