The receptacle is a very important component of any electrical system.It provides the connection between your electrical appliances and the power source. How to Test a Receptacle with a Multimeter is essential to ensure it is properly working. And no problems exist that could cause injury or damage to your equipment or yourself.
| Quick Look: Whenever I test a receptacle with my multimeter, I first turn off the power and put on safety gear. I check the hot side for voltage and test continuity on the ground or neutral side. If the readings are off, I troubleshoot or call a pro. This guide makes the process quick and safe every time. |
Testing Receptacles with a Multimeter: Quick Steps
Preparing to use a multimeter – know what you’re testing and how to use the multimeter
Before using Milwaukee GIDDS2-288935 multimeter to test your receptacle, you must be familiar with the device and the outlet you will be testing. Ensure you have read the manufacturer’s instructions for both before beginning. Also, wear appropriate safety gear like insulated gloves and eye protection before testing any electrical circuits.
A Quick Look
Step by Step Guide on how to test receptacle with multimeter
Turning off the power to the receptacle – safety first
The first step is to know how to test a breaker with a multimeter. This can be done by switching off the breaker or unplugging the receptacle from any power source. Once you have verified that no current is running through, you can start testing.
NOCO Boost Plus GB40
⭐ 4.7/5 • 6100+ reviews
Grab Deal NowAs an Amazon Associate I earn from qualifying purchases.
Identifying which slot is the hot side of the receptacle
Using a multimeter like the UNI-T UT33B multimeter, or any other multimeter you’re using, the next step is to identify which slot is on the hot side of the receptacle. This can be done by looking at the slots on the receptacle and noting which one has an extra conductor connected to it or a stripe painted around it.
Once you have identified the hot side of the receptacle, you can use your multimeter to test for voltage. To do this, ensure the multimeter is on a setting that will measure AC volts. Then attach one end of the meter’s probes to each of the slots in the receptacle and note what it reads. If no power is running through, you should see a reading of 0V.

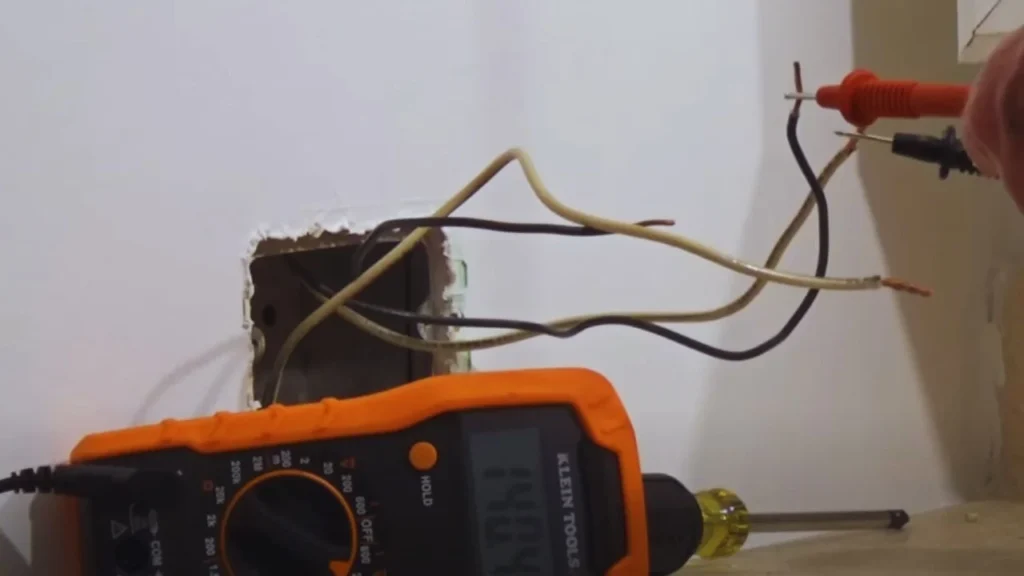

Testing for continuity on the ground or neutral side of the outlet
Once you have tested for voltage, you should also check for continuity on either the ground or neutral side of the outlet. To do this, switch your multimeter to an ohm setting and attach one probe to each slot in the receptacle. You should see a reading of 0 ohms if there is no issue with the connection.
Troubleshooting issues with a multimeter – if there’s no power or continuity, what should you do next
If your receptacle is not working or the readings are incorrect, using a multimeter like the UNI-T UT161E multimeter, or any other multimeter you’re using, can help identify the issue. It may be necessary to know how to test a receptacle with a multimeter. After this, decide to repair or replace the outlet. If you suspect an issue with any of the wiring in the system, then it is best to contact a certified electrician who can help diagnose and fix any electrical problems.
Safety Guide – 5 things to consider while testing
When using a multimeter for any electrical work, it’s important to remember these safety tips:
- Make sure that all power is turned off before testing.
- Wear protective gloves and goggles when handling electrical components.
- Read the manufacturer’s instructions for the multimeter and receptacle you are testing thoroughly before beginning.
- Double-check your wiring and connections to ensure everything is securely connected.
- Contact a professional electrician immediately if you suspect any issues or problems.
Conclusion
Testing a receptacle with a multimeter can be an important part of ensuring the safety of your electrical system and your home or workplace. Using a UNI-T UT33A multimeter, or whichever multimeter you prefer to work with, you can easily understand how to test receptacle with multimeter. Test the voltage and continuity on any outlet safely and accurately in just a few steps. Remember always to use caution and exercise safety when handling any electrical components. Gather the proper safety gear, read the manufacturer’s instructions carefully, and ensure all power is turned off before proceeding. With this guide as a reference, you should be well on your way to success in how to test a receptacle with a multimeter.
