Step-by-Step Procedure: How to Test a Single-Phase Motor with a Multimeter 2023

If you are wondering, How to Test a Single-Phase Motor with a Multimeter?  Here's short guide is given for you. Take a look:

"Simply, disconnect the motor from its power source to test a single-phase motor with a multimeter. Set the multimeter to measure resistance (ohms). Check the motor's windings for continuity by placing the multimeter probes on the corresponding terminals. If the multimeter shows a low resistance reading, the windings are intact. Additionally, check for any signs of shorts or open circuits."

What is a Single Phase Motor?

A single-phase motor is an electric motor that operates on a single-phase power supply. It is an alternating current (AC) motor commonly used in residential, commercial, and industrial applications.

How to Test a Single-Phase Motor with a Multimeter

Single-phase motors are widely used in various devices and equipment, including fans, pumps, compressors, refrigerators, air conditioners, power tools, and many other applications.

How to Test a Single-Phase Motor with a Multimeter? 7 Easy Steps

Testing a single-phase motor with a multimeter is a straightforward process that involves measuring the electrical parameters of the motor to ensure its proper functioning.

Read more about How To Test Hvac Blower Motor With Multimeter?

Here are the steps to know how to test a single-phase motor with a multimeter:

Step 1: Safety Precautions

Before starting any electrical testing, it is essential to prioritize safety. Ensure you have taken the following precautions:

1. Disconnect the power supply: Make sure the motor is disconnected from the power source to avoid electrical shock.

2. Wear safety equipment: Wear insulated gloves and glasses to protect from potential hazards.

Step 2: Set Up the Multimeter

Here are some tips on how to set up a multimeter if you don't know how. Here are some tips:

1. Select the appropriate setting: Set your multimeter to the resistance (ohms) or continuity (beep) mode. Refer to the multimeter's user manual for specific instructions on selecting the desired mode.

2. Set the range: If your multimeter has a manual range, set it to the appropriate range for measuring resistance or continuity. It automatically selects the appropriate range if it has an auto-range function.

Step 3: Measure Motor Windings

To test the motor windings, follow these steps:

1. Identify the motor's winding leads: Locate the motor's winding leads. These are typically labeled as "Start" (S), "Run" (R), and "Common" (C). If the motor is not labeled, you may need to consult the motor's documentation or manufacturer for the winding configuration.

Read more about How to check motor winding with multimeter

2. Measure resistance between windings

  • Place the multimeter's probes on the "Start" and "Run" winding leads.
  • Note the resistance reading on the multimeter. This value should be within the motor's specified resistance range.
  • Repeat this step for the "Run" and "Common" winding leads and the "Start" and "Common" winding leads.

Step 4: Check for Continuity

Continuity testing helps identify any breaks or faults in the motor's winding. Follow these steps:

how to check continuity of single phase motor

1. Disconnect the motor from the power source and completely isolate it.

2. Set the multimeter to continuity mode (the setting that produces a beep when there is continuity).

3. Touch one probe to the "Start" winding lead and the other to the "Common" winding lead.

  • If you hear a beep or see a continuity indication on the multimeter, there is continuity, indicating the winding is intact.
  • If you don't hear a beep or see a continuity indication, it suggests an open circuit in the winding.

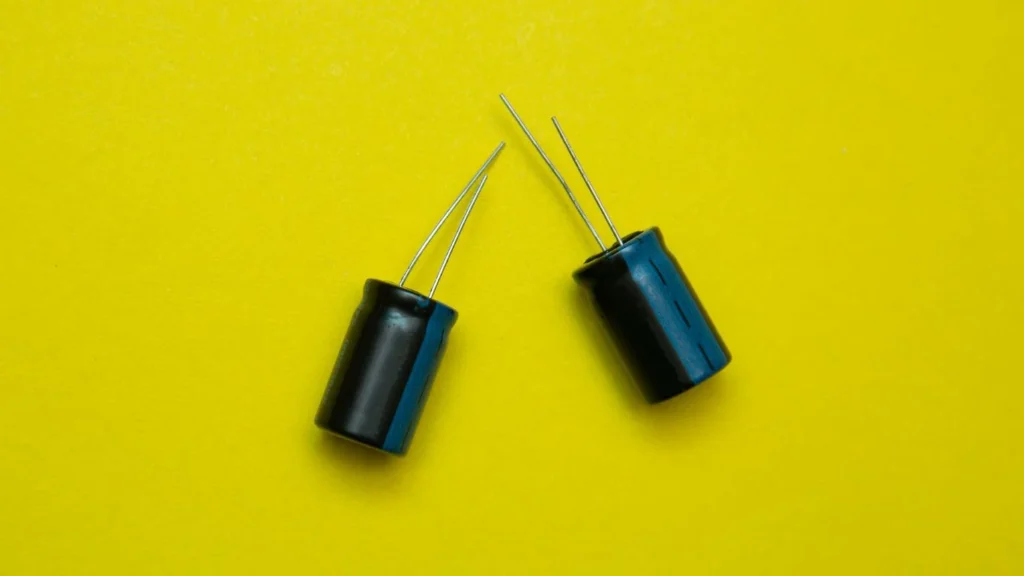

Step 5: Measure Motor Capacitor (if applicable)

Single-phase motors often use capacitors for proper starting and running. Here's how to test the motor's capacitor:

Read more about How To Test A Motor Start Capacitor?

1. Discharge the capacitor! Ensure it is discharged before testing it. Use an insulated screwdriver with a resistor across its tip to discharge the stored voltage in the capacitor.

2. Set the multimeter to the capacitance (F) mode if available. You can use the resistance mode if your multimeter doesn't have this mode.

3. Connect the multimeter probes to the capacitor terminals:

  • Connect the positive (red) probe to the capacitor's terminal labeled "C" or "+."
  • Connect the negative (black) probe to the capacitor's terminal labeled "FAN," "-" or "COM."

4. Note the reading on the multimeter. It should be close to the capacitor's specified capacitance value. If the reading is significantly different, the capacitor may be faulty and require replacement.

Step 6: Motor Rotation Test (optional)

If you want to check the motor's rotation direction, you can perform a rotation test using the multimeter:

1. Reconnect the motor to the power source.

2. Set the multimeter to the AC voltage (V) mode.

3. Start the motor and allow it to run for a few seconds.

4. Touch one probe to the "Run" winding lead and the other to the "Common" winding lead.

The multimeter should display an AC voltage reading. If the voltage reading is positive, the motor rotates in the correct direction.

If the reading is negative or there is no voltage, the motor may rotate in the opposite direction or experience a fault.

Step 7: Document and Evaluate Results

After completing the tests, document the readings obtained from each measurement and compare them against the motor's specifications.

Evaluate the results to determine if the motor is functioning correctly or if any components require further inspection or replacement.

Remember that these steps provide a general guideline for testing single-phase motors using a multimeter. Hope so, you know how to test a single-phase motor with a multimeter.

Signs of a Faulty Single Phase Motor

sign of faulty single phase motor

A single-phase motor can experience various faults or issues that affect its performance and reliability. Recognizing the signs of a faulty motor is crucial for timely maintenance or replacement. Here are some common signs that indicate a faulty single-phase motor:

1. Motor Fails to Start

If the motor fails or struggles to start, it may indicate a problem with its windings, starting capacitor, or starting mechanism. Possible causes include a faulty capacitor, worn-out brushes, a broken centrifugal switch, or damaged windings.

2. Excessive Noise and Vibration

Unusual noise and excessive vibration during motor operation are indications of a problem. Potential causes include misalignment, worn-out bearings, loose motor components, or an unbalanced rotor. If left unaddressed, these issues can further damage the motor.

3. Overheating

Excessive heat buildup in a motor is a clear sign of a problem. High ambient temperatures, overloading, insufficient ventilation, bearing problems, or faulty windings can cause overheating. If the motor becomes too hot to touch, it should be immediately shut down to prevent further damage.

4. Decreased Performance

A noticeable decrease in motor performance, such as reduced speed or power output, may indicate a fault. It could be due to worn-out brushes, damaged windings, a faulty capacitor, or mechanical issues within the motor. If the motor struggles to perform its intended function, it may require attention.

5. Tripping of Circuit Breakers or Fuses

The motor may be drawing excessive current due to a short circuit, ground fault, or damaged windings. Continued operation without addressing the underlying cause can lead to further electrical damage or pose a safety risk.

6. Motor Runs Hot

While some heat during operation is normal, a motor that consistently runs hot is a cause for concern. Overheating can result from overloading, high wind resistance, insufficient cooling, or a faulty thermal protection system. Continuous operation under such conditions can lead to motor failure.

7. Electrical Odors or Smoke

The presence of unusual electrical odors or smoke during motor operation is a warning sign. It indicates an electrical fault, such as a short circuit, insulation breakdown, or overheating.

If you observe these signs, immediately disconnect the power and seek professional assistance to prevent a potential fire hazard.

8. Irregular or Inconsistent Operation

If a motor operates erratically, such as starting and stopping unexpectedly, it suggests a fault. Possible causes include a malfunctioning centrifugal switch, loose connections, voltage fluctuations, or worn-out motor components.

The inconsistent operation can lead to equipment malfunctions or interruptions in processes relying on the motor.

9. Excessive Current Draw

Monitoring the motor's current draw can provide valuable insights into its condition. If the motor consistently draws excessive current, it may result from mechanical issues, such as bearing friction, misalignment, or increased load resistance.

The high current draw can lead to motor overheating and may indicate impending failure.

10. Visual Inspection

Performing a visual inspection of the motor can reveal signs of damage or wear. Look for any physical damage, such as cracked or melted insulation, loose or damaged wires, rust or corrosion, or signs of moisture ingress. These visual cues can help identify potential issues and guide further diagnostic steps.


How do you check for faults in a single-phase motor?

To check for faults in a single-phase motor, inspect the motor visually for any signs of physical damage. Then, use a multimeter to test the motor's windings for continuity, ensuring no open circuits or shorts.

Additionally, check the motor's starting capacitor and centrifugal switch if applicable, as faults in these components can also cause motor issues.

What is the winding resistance of a single-phase motor?

The winding resistance of a single-phase motor can vary depending on the motor's design and specifications. Generally, the resistance of the motor's windings is measured in ohms and can be found in the motor's documentation or specification sheet.

The winding resistance value is important for diagnosing faults and ensuring proper motor operation.

What is the resistance of a 1HP motor?

The resistance of a 1HP (Horsepower) motor can vary depending on the motor's design and construction. Horsepower rating measures power output, not directly related to resistance.

The resistance of a motor is determined by factors such as the size and type of windings and the specific motor design.

Therefore, the resistance of a 1HP motor can only be determined by referring to the motor's documentation or by measuring it with a multimeter.


How to test a single-phase motor with a multimeter involves disconnecting the motor from power, setting the multimeter to measure resistance, and checking the motor's windings for continuity.

By placing the multimeter probes on the corresponding terminals, you can determine if the windings are intact or if there are any shorts or open circuits. This simple yet effective method helps diagnose faults and ensure the proper functioning of single-phase motors. I hope now you know how to test a single-phase motor with a multimeter.
