How To Test a Fluorescent Ballast? 2 Methods

Fluorescent lights are a common fixture in many homes and workplaces. They provide energy-efficient lighting and can last for a long time. However, like all electrical components, fluorescent lights can develop problems over time. One of the key components in a fluorescent light fixture is the ballast. So, learn how to test a fluorescent ballast.

What is a Fluorescent Ballast?

A fluorescent ballast is a device that regulates the electrical current flowing through the fluorescent tubes. It plays a crucial role in starting and maintaining the proper operation of the bulbs. Without a functioning ballast, the fluorescent lights may not turn on, flicker, or exhibit other issues.

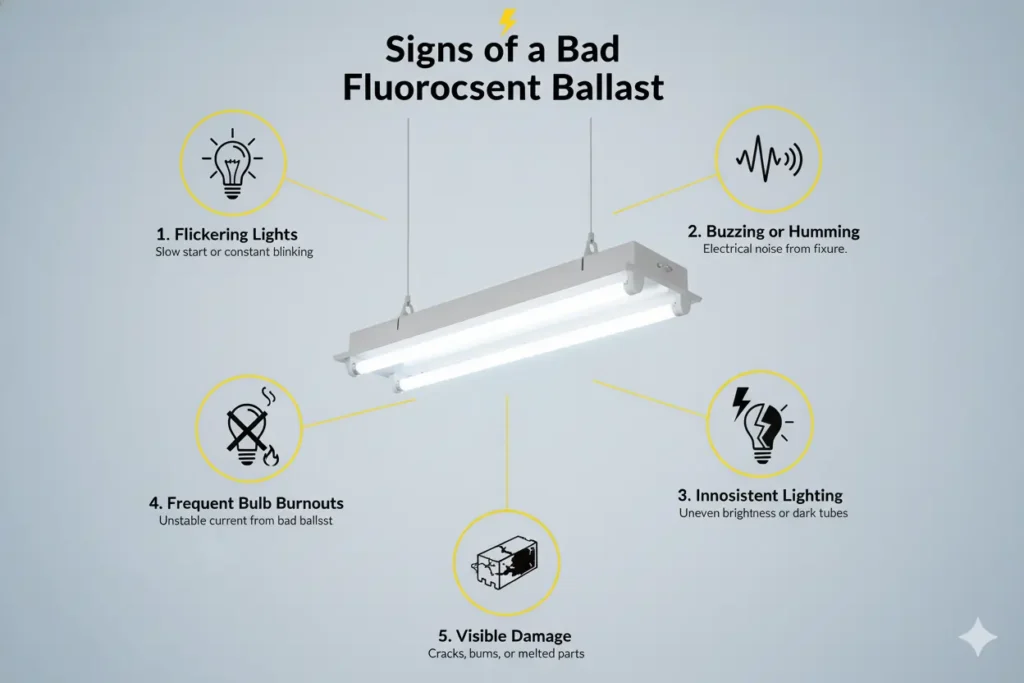

What Are the Signs of a Bad Fluorescent Ballast?

Before we dive into testing methods, it's essential to recognize the signs. They may indicate a faulty fluorescent ballast. These signs can include:

  • Flickering Lights: If your fluorescent lights flicker or take a long time to turn on, it could be a sign of a failing ballast.
  • Buzzing or Humming: Unusual noises coming from the light fixture may be due to a malfunctioning ballast.
  • Inconsistent Lighting: If some bulbs in the fixture are significantly dimmer than others or don't light up at all, it might be a ballast issue.
  • Bulb Burnout: Frequent bulb burnouts can result from an unstable electrical current caused by a bad ballast.
  • Visible Damage: Physical damage to the ballast, such as cracks, burns, or melted components, is a clear indication of a problem.

Safety First: Check Your Fluorescent Ballast

Before you begin testing a fluorescent ballast, it's crucial to prioritize safety. It is to prevent accidents or electrical shocks. Here are some essential safety measures to follow:

How do I safely turn off the power to a fluorescent light fixture?

1.Locate the Circuit BreakerFind the circuit breaker or fuse box that controls the power. It is on the fluorescent fixture. This might be in your home's electrical panel or a dedicated panel in a commercial setting.

How To Test a Fluorescent Ballast

2.Turn Off the Power: Switch off the circuit breaker or remove the fuse that corresponds. It is on the fluorescent light circuit. Ensure that there is no electricity flowing to the fixture before proceeding.

How do I avoid touching any exposed wires?

1.Wear Insulated Gloves: It's a good practice to wear insulated gloves when working with electrical components. It is to prevent accidental contact with exposed wires.

2.Use Non-Conductive Tools: When necessary, use non-conductive tools. Such as screwdrivers with insulated handles, to avoid direct contact with live wires.

Method#1 Visual Inspection of Fluorescent Ballast

Before performing any electrical tests, it's wise to conduct a visual inspection of the fluorescent ballast. Look for the following signs of damage:

1.Physical Damage: Check for cracks, burns, or scorch marks on the ballast. Any visible damage is a strong indicator of a problem.

2.Loose Wires: Ensure that all wires connected to the ballast are securely fastened. Loose or disconnected wires can disrupt the electrical flow.

3.Corrosion: Look for signs of corrosion or rust on the ballast or its connections. Corrosion can impair the ballast's functionality.

How do I check the ballast's connections?

How do I check the ballast's connections

1.Inspect Wire Connections: Carefully examine the wires connected to the ballast. Make sure they are firmly attached and undamaged.

2.Tighten Loose Connections: If you find any loose wires, use a screwdriver or pliers to secure them. Loose connections can lead to electrical problems.

Method#2 How To Test a Fluorescent Ballast: Multimeter Test

To perform a comprehensive test of the fluorescent ballast, you can use a multimeter. A multimeter measures electrical resistance, which is crucial for determining the ballast's condition. You should know the answer to “how to test a fluorescent ballast?” Follow these steps:

Step 01: Setting up Your Multimeter

Ensure that the multimeter is configured correctly for the task at hand. Follow these steps to set up your multimeter:

The multimeter features a dial or digital display. That presents various electrical measurement options. Among these, you need to identify the symbol for ohms (Ω), which represents resistance. This is the setting we'll be using for the test.

Once you've found the ohms symbol, it's essential to choose the appropriate ohms range on your multimeter. Start with the highest available range. If you're uncertain, beginning with the highest range allows for greater accuracy in readings.

Step 02: Probing the White Wire

With your multimeter set up for resistance measurement, we can now move on to the actual testing process. Firstly, locate the white wire connected to the fluorescent ballast. This wire typically serves as the common or neutral wire in the circuit.

Next, take one of the multimeter's probes. It is colored red for convenience, and gently touch it to the exposed metal portion of the white wire. Ensure that you establish a solid and stable connection between the probe and the wire.

Step 03: Testing Other Wires

Once you have secured the connection to the white wire, it's time to examine the remaining wires connected to the ballast. One by one, touch the other probe of the multimeter, typically colored black, to each of these wires.

Begin by placing the black probe against one of the wires connected to the ballast. Carefully avoid touching the wire with your fingers. The probe should be the sole point of contact.

As you touch each wire with the black probe, take note of the resistance readings displayed on the multimeter. These readings are crucial indicators of the condition of your fluorescent ballast.

Interpreting the Readings of Fluorescent Ballast

Now you've collected resistance readings for each wire. It's time to interpret what these numbers signify. Understanding the readings is the key to identifying whether your fluorescent ballast is healthy or in need of attention.

A Good Ballast: High Resistance Readings

In a well-functioning ballast, you should observe high resistance readings on the multimeter when testing all wires except the white wire. This high resistance is often displayed as "infinity" (∞) or a very large number. These readings indicate that the ballast is doing its job. It allows electrical current to flow properly. While impeding it through the multimeter's circuit.

A Troubled Ballast: Low Resistance Readings

On the other hand, if your multimeter displays low resistance readings. Such as zero or a value close to zero. When testing any of the wires connected to the ballast, it's a clear indication of trouble. Low resistance suggests that there is an unintended path for current in the circuit. Or bypassing the ballast's intended function.

Replacement of Fluorescent Ballast

If the ballast fails the multimeter test, it needs to be replaced. Continuing to use a faulty ballast can lead to safety hazards and further damage to your lighting system. Here's a brief overview of the replacement process:

Replacement of Fluorescent Ballast

1.Turn Off Power: Ensure the power to the fixture is turned off at the circuit breaker or fuse box.

2.Remove Old Ballast: Disconnect the wires from the old ballast and remove it from the fixture.

3.Purchase a New Ballast: Obtain a replacement ballast that matches the specifications of your old one.

4.Connect New Ballast: Attach the wires from the new ballast to the fixture. Follow the manufacturer's instructions.

5.Test the Fixture: After replacing the ballast, turn the power back on and test the fixture. It is to ensure it functions correctly.  Now you know - how to test a fluorescent ballast?

Different Types of Fluorescent Ballast

Fluorescent ballasts come in various types, each designed for specific applications. Understanding these types can help you choose the right one for your needs:

  • Magnetic Ballasts: These traditional ballasts use electromagnetic induction to regulate the current. They are less energy-efficient and can produce a noticeable hum.
  • Electronic Ballasts: Electronic ballasts are more energy-efficient. They produce less noise compared to magnetic ballasts. They are the preferred choice for modern fluorescent lighting systems.
  • Programmed Start Ballasts: These ballasts provide a gentle start to fluorescent bulbs. It prolongs their lifespan. They are ideal for areas where frequent on/off cycles occur.
  • Instant Start Ballasts: Instant start ballasts provide immediate illumination when you turn on the lights. They are suitable for applications where quick lighting is needed.

Troubleshooting Fluorescent Ballast Problems

If you encounter issues with your system, but the tests are functioning correctly. There may be other problems to consider. Here are some troubleshooting tips:

  • Check Bulbs: Ensure that the fluorescent bulbs are not burnt out. Replace any defective bulbs.
  • Inspect Starters: If your fixture uses starters, make sure they are in good condition. Faulty starters can lead to lighting problems.
  • Clean Reflectors: Dirt or dust on the reflectors can reduce light output. Clean them regularly to maintain optimal lighting.
  • Verify Wiring: Double-check the wiring connections. It is to ensure they are secure and properly installed.
  • Consider Environmental Factors: Extreme temperatures or humidity can affect fluorescent lighting performance. Make sure your fixtures are installed in suitable environments.

Ending Line

Testing a fluorescent ballast is important for several reasons. First and foremost, it ensures the safety of the light fixture and its users. A malfunctioning ballast can lead to electrical hazards, including shock and fire risks. Secondly, testing allows you to identify and diagnose any issues with the ballast.

It is before they become more severe. This potentially saves you time and money on repairs or replacements. Finally, by testing the ballast, you can extend the lifespan of your fluorescent lighting system. This reduces the need for frequent replacements. We hope now you know “how to test a fluorescent ballast?”
