In our everyday lives, switches serve as the silent conductors of electrical power. Whether turning on the lights in our homes or operating complex machinery in industrial settings, switches are integral to our modern lives. However, the humble devices aren't invincible and may malfunction over time.
Failure of a switch can disrupt our routines and even pose a safety risk. The multimeter is the go-to tool for diagnosing switch problems, but not everyone can access one. Knowing how to test a switch without a multimeter becomes invaluable in such situations.
How to test a switch without a multimeter?
Multimeters are very helpful when testing switches, but what methods come to mind if you do not have one. There are three ways to perform switch tests without a multimeter that I will discuss.
Method 1: Visual Inspection
The first method to consider when testing a switch without a multimeter is visual inspection. The process involves examining the switch's physical condition and its connections. A visual inspection can be performed as follows:
Step 1: Look for Physical Damage or Wear and Tear
Make sure there are no visible signs of damage or wear on the switch. Scratches, cracks, or chipped surfaces can indicate trouble. You should also check the switch's cover plate and housing. It's a sign that the switch needs to be replaced if you notice any irregularities.
Step 2: Check for Loose or Disconnected Wires

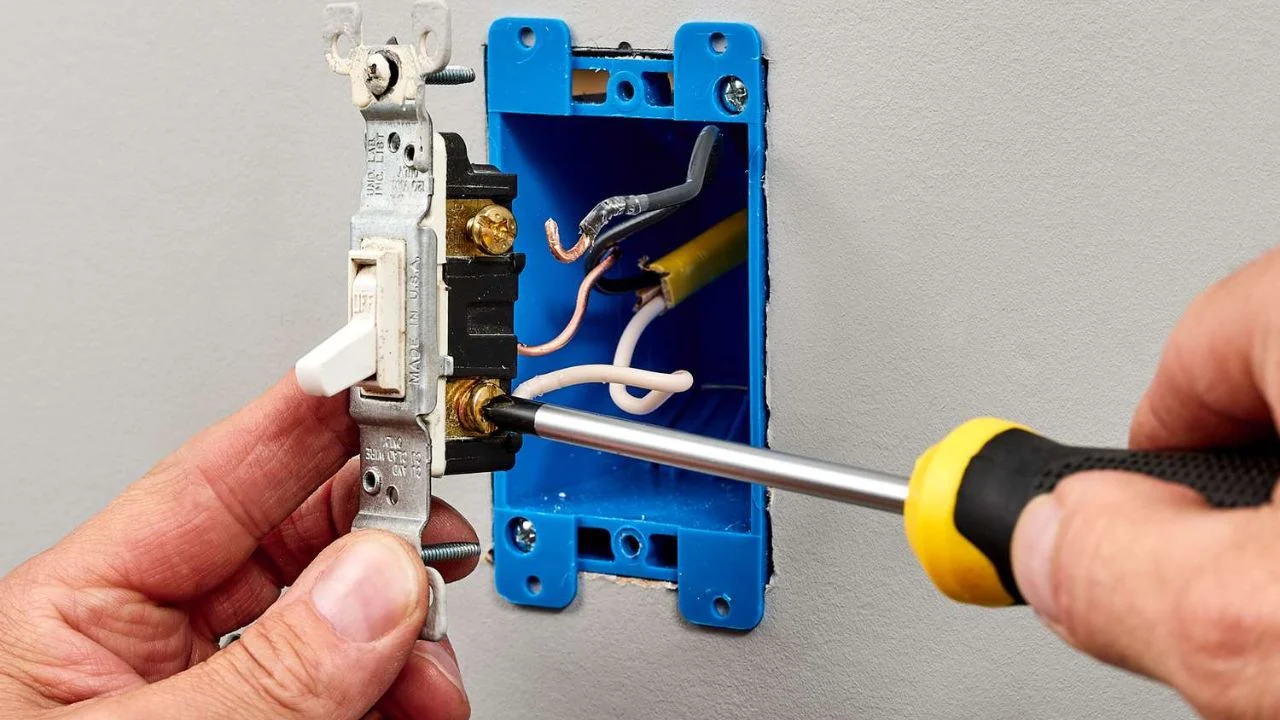

Wires connected to the switch should be checked. Loose or disconnected wires can disrupt the switch's functionality. The switch terminals should be securely connected to all wires. Reattach any loose connections carefully to ensure a snug fit if you find any.
Step 3: Examine the Switch for Loose Components
Pay attention to any loose components while observing the switch. In this case, screws, nuts, or other fasteners may have come undone. Loose components can cause electrical issues and safety hazards. To ensure the switch's integrity, tighten them appropriately if you find any.
Method 2: Listening for Click
You can test switches by listening for a distinct click when you toggle them. A mechanical switch, such as a toggle or rocker switch, can be tested using this method. By using this auditory approach, you can test a switch easily:
Step 1: Ensure the Power Source is Connected
Before you begin, make sure the power source is connected and the circuit you are testing is live. Power must run through the switch for this method to work.
Step 2: Listen for a Distinct Click When the Switch is Toggled
Toggle the switch on and off slowly and deliberately. During this process, listen carefully for an audible click. In most mechanical switches, this click is a part of their operation. A click sound indicates that the internal mechanism is functioning properly. It could be a problem with the switch if you don't hear a distinct click, or if it's irregular or muffled.
Method 3: Circuit Continuity Test
A circuit continuity test determines whether an electrical circuit remains unbroken and conductive when a switch is toggled. In other words, it helps us determine whether electrical flow is maintained when the switch is in different positions. Switches that complete or interrupt an electrical pathway, such as momentary and push-button switches, can benefit from this feature.
Test Setup Using a Battery, a Light Bulb, and Wires
You will need a battery, a light bulb, and some wires to perform the circuit continuity test. A battery powers the device, a light bulb serves as an indicator, and wires serve as conductors. When the switch is activated, you can visually inspect the behavior of the electrical circuit.
Step#1 Create a Simple Circuit
Connect one wire to the battery's positive terminal and the other to one end of the light bulb. Another wire should be connected to one of the switch terminals from the remaining end of the light bulb.
Step#2 Toggle the Switch and Observe the Light Bulb
The switch can be toggled between different positions. Keep an eye on the light bulb while doing so. Electrical circuits remain continuous when the switch is functioning properly if the bulb lights up when the switch is turned on and goes out when the switch is turned off.
Step#3 Interpretation of the Results
Circuit continuity tests are quite straightforward to interpret. The light bulb should illuminate when the switch is in the on position and go out when the switch is in the off position if the switch is working properly. However, if the light bulb remains off regardless of the switch's position, it indicates a switch issue.
Advantages and Limitations of the Circuit Continuity Test
Its simplicity and visual confirmation are two of the advantages of the circuit continuity test. Using this tool, you can quickly assess the functionality of various switches without relying on complex tools. The test works best with switches that control simple circuits. Other testing methods may be required for more intricate switches or switches used in complex electrical systems. Now I hope you can easily help your friends when any of your friend don’t know how to test a switch without a multimeter.
Safety Precautions
Electrical systems require a high level of safety. Safety precautions should be taken before testing any switch or performing maintenance:
Disconnect Power Sources
When working on electrical components, always disconnect the power source. The circuit is therefore less likely to be accidentally activated or shock the user. If you're working on a specific area, turn off the circuit breaker or unplug the device.
Use Proper Protective Gear
Protect yourself from potential electrical hazards and sharp edges by wearing gloves and safety goggles. You can prevent injuries and ensure your safety by taking these precautions.
Inspect Tools and Equipment
Be sure to check your tools and equipment before you begin. Inspect them for defects and make sure they are in good working order. A damaged tool or frayed wire can pose a significant risk during testing or maintenance.
Work in a Dry Environment
Switch testing should always be performed in a dry environment. Electrical short circuits are caused by moisture or wet conditions, posing dangers to you and the electrical system.
Seek Professional Assistance
In case you are still unsure about any aspect of switch testing or encounter complex issues, it is advisable to seek professional assistance. The work of an electrician can be dangerous, and they have the expertise to handle intricate problems in a safe manner.
Troubleshooting Common Switch Problems
Over time, switches can develop a variety of problems. The following are some common switch problems and how to troubleshoot them:
1-Flickering Lights
The flickering lights are often caused by loose connections within the switch or the circuit. To ensure that the switch's wiring is tight and secure, check all connections. In addition, inspect the connections at the light fixtures and junction boxes. To eliminate flickering, tighten any loose wires and connections.
2-Non-Responsive Switches
Non-responsive switches may be caused by worn-out switch mechanisms or electrical circuit problems. Perform a visual inspection first to determine if there are any physical damages. If the switch appears to be intact, test its functionality using the methods described in this article. The switch may need to be replaced if it still does not respond.
3-Overheating Switches
An overheated switch can indicate an overloaded circuit or a faulty one. Whenever a switch becomes excessively hot while in use, it should be addressed immediately. Reduce the load on the circuit by disconnecting or turning off some appliances. Consider consulting a professional electrician if the problem persists, as it may indicate a more serious electrical problem.
4-Buzzing or Hissing Sounds
It is a cause for concern when switches make buzzing or hissing sounds. There may be arcing or sparking within the switch, which indicates a potential fire hazard. Disconnect the power source immediately and consult a qualified electrician. To prevent electrical accidents, avoid using the switch until the issue is resolved.
Conclusion
For homeowners, DIY enthusiasts, and even professionals, knowing how to test a switch without a multimeter is a valuable skill. These methods, including visual inspection, listening for a click, and the circuit continuity test, provide accessible methods for assessing the condition and functionality of switches. These techniques and safety measures will ensure that your electrical system is safe and efficient, so your switches can perform their crucial functions.
