How to test blend door actuator with a multimeter? Testing the blend door actuator on your car or truck can be done easily and quickly with a multimeter. I will discuss step-by-step instructions.
If you don’t know how to test car wiring with a multimeter. Read the complete blog.
However, the blend door actuator is responsible for controlling the air temperature coming out of your vents. It also works by preventing the position of a set of flaps inside the ventilation system, which determines how much air flows from the hot and cold sides of the heater core.
What is Blend Door Actuator?
The blend door actuator is a crucial component of a vehicle’s heating, ventilation, and air conditioning (HVAC) system. It controls the flow and temperature of air entering the cabin, ensuring passenger comfort regardless of external weather conditions. This component is often overlooked until it malfunctions, leading to problems with the vehicle’s climate control system.
Function and Mechanism
The primary function of the blend door actuator is to regulate the air temperature inside the vehicle by adjusting the position of the blend door. The blend door itself is a small panel within the HVAC system that can open or close to mix hot and cold air from the heater core and the air conditioning evaporator.
The blend door actuator is typically an electric motor connected to the HVAC control module. When the driver adjusts the temperature settings, the HVAC control module sends a signal to the blend door actuator, which then moves the blend door to achieve the desired temperature. Some systems use a potentiometer to provide feedback on the door’s position, ensuring precise control.
Types of Blend Door Actuators
There are two main types of blend door actuators:
- Analog Actuators: These are controlled by a simple on/off signal and tend to be used in older vehicles. They lack the precision of modern digital systems but are generally more straightforward and durable.
- Digital Actuators: These are controlled by a pulse-width modulation (PWM) signal, allowing for more precise control of the blend door’s position. They are commonly found in newer vehicles with more advanced climate control systems.
Malfunctioning Blend Door Actuator Can Cause:
A malfunctioning blend door actuator can cause the air to be stuck on one temperature setting, preventing you from controlling the climate inside your vehicle.
Using a multimeter, you can quickly test the blend door actuator and determine if it needs to be replaced. Moreover, this component is essential to ensure proper air temperature control in your vehicle.
With the right tools, you can quickly get to the root of the problem and keep your car or truck’s air conditioning system running smoothly. Learning how to test the blend door actuator can save you time and money in the long run.

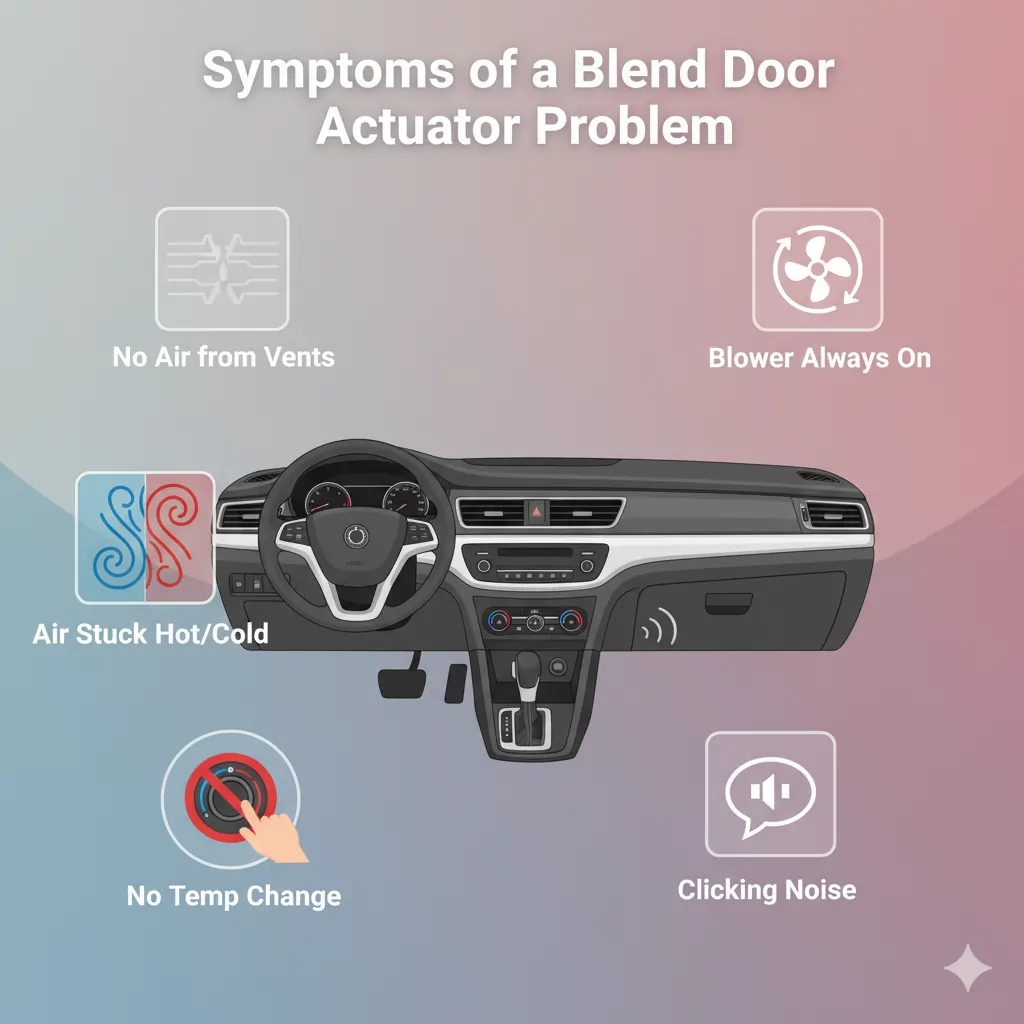

Symptoms Of A Blend Door Actuator Problem:
1. No air coming from the vents
2. Air stuck on one setting (either hot or cold)
3. Temperature not changing when the dial is turned
4. Unusual noises coming from the dashboard area
5. Blower motor runs continuously with no change in temperature
Common Problems and Symptoms
Blend door actuators can fail due to various reasons, including wear and tear, electrical issues, or mechanical failure of the internal gears. Common symptoms of a faulty blend door actuator include:
- Inconsistent Temperature Control: If the blend door actuator is not working correctly, the HVAC system may blow hot air when it should be cold and vice versa.
- Clicking or Knocking Noises: A failing actuator can produce a clicking or knocking sound as it struggles to move the blend door.
- Stuck Airflow: The air may only come out of one set of vents (e.g., only the defroster or only the floor vents) regardless of the control settings.
- Error Codes: In vehicles with advanced diagnostics, a faulty blend door actuator can trigger error codes that can be read with an OBD-II scanner.
Diagnosis and Repair
Diagnosing a faulty blend door actuator typically involves a combination of visual inspection and using a diagnostic tool to read error codes. The location of the actuator can vary by vehicle make and model, but it is usually found behind the dashboard, near the HVAC unit.
- Visual Inspection: Look for obvious signs of wear or damage. This may involve removing parts of the dashboard for access.
- Error Codes: Use an OBD-II scanner to check for any HVAC-related error codes.
- Manual Testing: Disconnect the actuator and manually move the blend door to see if it affects the temperature and airflow as expected. This can help determine if the issue is with the actuator or the blend door itself.
Replacing a blend door actuator can be a DIY job for those comfortable with automotive repairs, but it often involves removing parts of the dashboard, which can be time-consuming and intricate. Professional mechanics can quickly and accurately diagnose and repair blend door actuator issues, ensuring the HVAC system returns to optimal functionality.
Preventative Maintenance
While blend door actuators are generally durable, regular maintenance of the HVAC system can help prolong their lifespan. This includes:
- Regular Use: Regularly using the HVAC system helps keep the actuator and blend door moving smoothly. Periodic cycling through different settings can prevent parts from seizing up.
- System Cleaning: Keeping the HVAC system clean and free from debris can prevent blockages and reduce the wear on the actuator.
- Timely Repairs: Addressing minor HVAC issues promptly can prevent them from escalating into more significant problems that can damage the blend door actuator.
How To Test Blend Door Actuator With A Multimeter?
So, how to test blend door actuator with a multimeter? Follow the steps, if you are going to test a faulty blend door actuator with a digital multimeter:
Step# 01. Negative terminals should remove from the vehicle.
The radio code on your vehicle must be memorized or, better yet, calibrated. Although, you’ll have to take your car to the garage without a calibrator. A calibration will reveal whether your heating tube is malfunctioning.
Step# 02. The heating tube needs to be checked.
This step also involves checking the car’s heating system. If your heater blows cool air, you may have a damaged mixing door actuator.
Step# 03. Locate and check the actuator
Mixing door actuators are usually located next to heating boxes. You will need a professional technical assistant to check every detail in the system. The mixing door actuator must be replaced if it does not move when the temperature changes.
You can feel or observe the car thermometer to determine the constant heat. The article “car temperature gauge moves up and down while driving” can help you better understand the temperature gauge.
Other Related Issues: How To Fix Them
In addition to testing the blend door actuator, there are several other related issues that you should be aware of.
1. Leaky air ducts:
Leaky air ducts can cause an improper blend door actuator. If the air from your vents smells musty or damp, you may leak one of your air ducts. You can use a smoke test to locate any leaks and repair them accordingly.
2. Faulty wiring:
Faulty wiring can also cause the blend door actuator to malfunction. To test for faulty wiring, you should use a multimeter to check for voltage and continuity.
3. Clogged air filter:
A clogged air filter can cause the blend door actuator to malfunction. To test for clogged air filters, you should remove the filter and check it for debris or dirt buildup.
4. Faulty blend door:
If the above tests don’t reveal any issues, you should check for a faulty one. You can use a multimeter to check for continuity across the connections and replace any defective parts.
Conclusion:
In conclusion, testing and diagnosing a faulty blend door actuator can be complicated. However, by following the steps outlined here and using the right tools, you can quickly get to the root of the problem and keep your car or truck’s air conditioning system running smoothly.
Testing the blend door actuator can help you save time and money in the long run. With proper diagnosis and repair, you can ensure your vehicle is running at peak performance. Hope so, now you know how to test blend door actuator with a multimeter.
FAQs:
What is a blend door actuator?
A blend door actuator is an electronic device that regulates the temperature of a vehicle’s air conditioning system. Although, it controls the airflow from the interior vents into the cabin.
What are the symptoms of a faulty blend door actuator?
The most common symptoms of a faulty blend door actuator include no air coming from the vents, air stuck on one setting (either hot or cold), temperature not changing when the dial is turned, unusual noises coming from the dashboard area, and the blower motor running continuously with no change in temperature.
How do I test the blend door actuator?
To test the blend door actuator, you’ll need to remove the negative terminals from the vehicle, locate and check the actuator, and feel or observe the car thermometer to determine the constant amount of heat. You can also use a multimeter to check for faulty wiring and clogged air filters. If all else fails, you may need to replace the actuator.
Do I need a technician to test and diagnose a faulty blend door actuator?
Yes, a professional technician should test and diagnose your vehicle’s blend door actuator. They can use specialized tools to get to the root of the problem and ensure your car runs at peak performance.
