How To Test Thermostat Wires with Multimeter | DIY Guide

By shafiq usama

How to Test Thermostat Wires with multimeter

As an electrical engineer, I love explaining how things like circuits and electronics work. I write on my blog to share simple explanations, reviews, and useful tips about the latest technology.

Maintaining a good HVAC system at home requires some basic knowledge about its components. The most common part of any HVAC system is a thermostat. Most of the time its thermostat which trips your HVAC system so one should know about its testing too. My every second client asks me, how to test thermostat wires with multimeter? Well, To ensure the thermostat is working properly, it is important to test the wires using a multimeter.

Testing the wires will help confirm that the thermostat is not malfunctioning or the cause of the high failure rate. Regular maintenance and testing of thermostat wires can help to reduce the failure rate in the future.

What Is a Thermostat?

There are a number of different types of thermostats, but most of them work by sensing the ambient air temperature in the room, and switching the heating systems on and off depending on the level of the ambient air temperature. The thermostat controls whether or not to switch on or off the heating devices in a house based on the setpoint temperature.

How to Test Thermostat Wires with multimeter

What Is a Multimeter?

The digital multimeter is a diagnostic tool used to diagnose electrical and electronic problems, usually by measuring voltage (volts), current (amps), and resistance (ohms). It is a common diagnostic tool found in electrical and electronic repair shops and is used by many technicians.

How to Test a Thermostat Wires With Multimeter? Step By Step Guide

You should learn how to test thermostat wires with multimeter. A multimeter can be used to test a thermostat by measuring the voltage and current of the circuit. This can help determine if the thermostat is operating properly and if any components need to be replaced. Additionally, the multimeter can be used to measure resistance, which can help identify any potential electrical faults.

Step # 01: Remove the Thermostat Cover

You will need to remove the thermostat or thermostat cover in order to reveal the wires. Wires should be screwed into the terminals that are marked R (red), W (white), G (green), Y (yellow), and C (standard).

There are thermostats that only connect red and white or red and green wires. In order to determine which wires are connected to the terminals, you may want to take a picture or record which wires are connected to them.

Step # 02: Disconnect the Wires

Make sure that the wires are disconnected from the connections in the wall by loosening the bolts. Ensure that the wires do not fall into the hole in the wall (wrap with a pencil if necessary).

Step # 03: Twist the Wire Ends Together

The ends of the wires should be twisted together at the very ends. Make sure that neither of the wires is in contact with any other wire.

In order to determine if your thermostat is wired correctly or has a defective component, you should turn on the oven again and see if the fan turns on and the burners in the furnace light up.

Step 04: Voltage Testing of Thermostat wires with multimeter

If your thermostat has a cover on it, remove it and shut off the power to check its voltage.
The next step is to set your multimeter to AC voltage mode. You should connect one probe of your multimeter to the red wire, commonly known as the "R terminal," and the other probe to any remaining wire. If your thermostat operates at 24 volts, expect the voltage reading to fall within the recommended range.

Step 05: Resistance Testing of thermostat wires with multimeter

Check your thermostat's resistance after disconnecting it from your HVAC system, if applicable. Select the resistance (ohms) mode on your multimeter, preferably a low range like 200 ohms. Connect both multimeter probes to the thermostat's two terminals.
When a thermostat is functioning properly, its resistance should be nearly zero ohms. A multimeter that reads "OL" (open loop), indicating an incomplete circuit, indicates loose or broken connections, or damaged components.

Read More about: How to check hot water heater thermostat

Step 06: Loose or Broken Wires in thermostat

Take the following steps if you suspect loose or damaged wires within your thermostat.

  • The first step is to turn off the power to the thermostat.
  • Remove the thermostat's cover.
  • Typically, the thermostat terminals are labeled R (red), Y (yellow), G (green), and W (white).
  • Make sure that each wire is not damaged, loose, or disconnected. You should address any damaged or disconnected wires immediately to ensure proper thermostat function and smooth operation of your heating or cooling system.

This can be bypassed by “flushing” the thermostat, which is a method of identifying a faulty thermostat before replacing it, but it can also be used temporarily to turn on the system. Hope so - Now you know, how to test thermostat wires with multimeter?

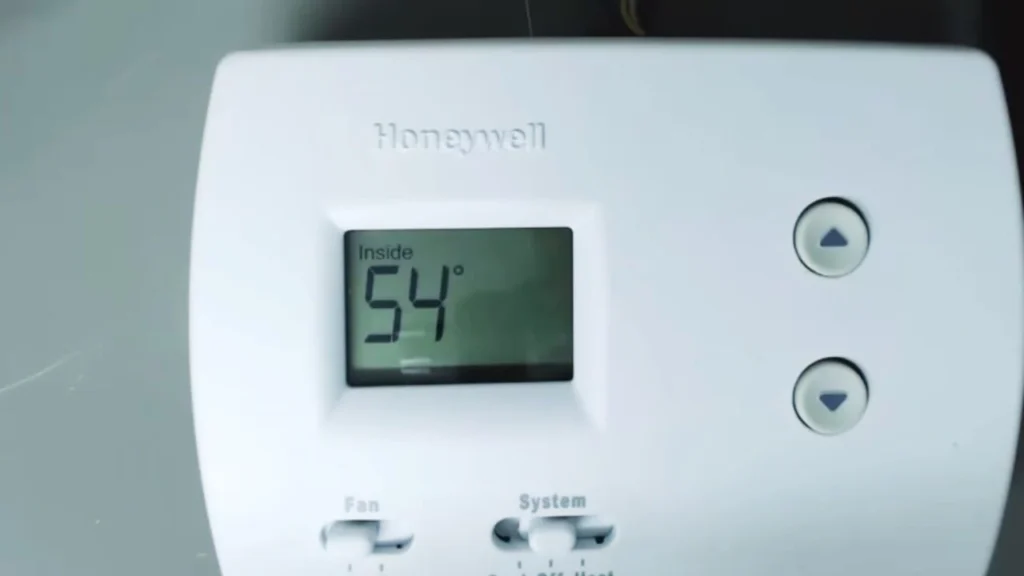

Signs Of A Faulty Thermostat

Check the circuit breaker to make sure it has not been tripped. If the breaker has been tripped, reset it and then check if the thermostat is working. If the breaker has not been tripped, check the batteries in the thermostat to make sure they have not run out. Here are some other signs:

Fault 1: Make Sure the Thermostat is On.

When troubleshooting a problem, the first thing you should do is check that the thermostat is on. It is always a good idea to start with the simplest solution, and that is ensuring that the thermostat's power switch is on. You may find it possible to accidentally turn off the thermostat during a routine dusting procedure.

It is possible that someone else in the house turned off the unit without informing the rest of the family. You may simply forget to turn the thermostat back on before adjusting the temperature if the temperature has been nice for a while and your HVAC system has been off for a while.

Fault 2: Replace the Batteries

If your thermostat is powered by batteries, try to put fresh batteries in the unit. Many people do not keep track of when they have to replace their thermostats’ batteries. As a minimum, you should replace the batteries at least every six months in order to ensure the best performance and complete peace of mind you can have.

The best way to remember this task is to replace your thermostat and smoke detector batteries when Daylight Savings Time begins in the spring and ends in the fall.

Fault 3: Check the Circuit Breaker Panel

A tripped circuit breaker is another possible solution to a thermostat that has no power. It can also be the cause for a power outlet to not work, as well as an appliance or HVAC system that doesn't work.

To determine if there is a misaligned switch in your electrical panel, open it up and look for it. If you do see a misaligned switch, turn it off and turn it back on, and then try to turn on your HVAC system again to see if the problem has been resolved.

Fault 4: Open the Thermostat Housing

Over the years, a thermostat can start malfunctioning due to accumulated dust that can be found inside the device. When a person smokes in your home, sticky tar can make the situation even worse.

Gently remove the thermostat cover and examine the inside of it carefully. If you notice that the components of the thermostat are caked with gunk, use canned air to carefully blow away the dust and debris that has accumulated.

How to Use a Multimeter to Measure Amps?

In the course of diagnosing or troubleshooting electrical systems, it is essential for electricians to be able to use a multimeter in order to measure amps. If you use the right equipment, you can quickly measure the amperage in your system.

It allows you to isolate and identify the problem before it has any further consequences. If you're using a multimeter, you need to make sure that the dial is set to the "amps" setting on the display of your multimeter. Once you have done that, then follow the steps below.

  1. As a starting point, you need to connect one of the leads of the multimeter to the circuit being tested. The red lead should be connected to either side of the load and the black lead should be connected to either side of the power source.
  2. The other lead of the multimeter should be connected to the circuit as well.
  3. You can complete the test by switching your multimeter's dial from current in volts to current in amps by pressing the "A" symbol on the display of your multimeter.
  4. The current that is passing through the circuit should be indicated by the reading you receive at this point. It is best to record this reading and compare it to what is expected or normal for that particular electrical component or appliance. If there is a discrepancy, you must investigate further and make any necessary adjustments or repairs.

FAQs about testing thermostat wires

How do you test a thermostat with wires?

To test a thermostat with wires, first check that the power is off. Then, use a multimeter to test the continuity of the thermostat's wires. Finally, if the continuity is normal, then the thermostat is likely functioning properly.

Do thermostat wires have voltage?

Yes, thermostat wires have voltage when the power is on. It is important to make sure the power is off before testing the thermostat wires with a multimeter. If not, this could cause electric shock or malfunction of the thermostat.

How do you check thermostat wire continuity?

To check for continuity, set the multimeter to the continuity test setting and touch the probes of the multimeter to the two thermostat wires. If there is continuity, the multimeter will beep, and the display will show a low resistance reading. If there is no continuity, the display will show an “OL” reading.

Conclusion

Between 2015 and 2019, 13 percent of US home structure fires were caused by electrical failures or malfunctions. The use of a multimeter to test thermostat wires is an easy and straightforward process that can provide invaluable insight into how well your HVAC system functions. You can troubleshoot problems more effectively and maintain optimal heating and cooling in your home if you test thermostat wires regularly. We hope now you know the answer to “how to test thermostat wires with multimeter?”
