How to Tune a Monoblock Amp with a Multimeter

Monoblock amplifiers are renowned for providing reliable power to a single channel, maximizing efficiency and sound quality. However, to unleash their full potential, precise tuning is essential. But the question arises here: How to tune a Monoblock amp with a multimeter?

“Set the multimeter to AC voltage measurement. Connect the multimeter’s positive probe to the amp’s positive output and the negative probe to the negative output. Play a test tone at the desired volume. Adjust the amp’s gain control until the multimeter reads the manufacturer’s specified voltage (e.g., 0.5V or 1V). Repeat the process for each channel to achieve balance and prevent distortion”.

What are Monoblock Amplifiers?

Monoblock amplifiers are my go-to choice when powering a single audio channel precisely and efficiently. These amplifiers are designed to provide reliable power to a single speaker, ensuring optimal performance and sound quality.

With their compact size and high power output, Monoblock amps are famous for powering subwoofers or individual speakers in-car audio systems, home theaters, and professional audio setups.

Types of Monoblock Amplifiers

There are several types of Monoblock amplifiers, but here I will discuss only two significant types of Monoblock amplifiers, including:

Class AB Amplifiers: Class AB Monoblock amps are famous for balancing efficiency and sound quality. These amps use a combination of Class A and Class B circuitry, providing improved efficiency compared to Class A amps while still maintaining low distortion levels.

Class D Amplifiers: Class D Monoblock amps are highly efficient and known for their compact size. These amps use digital switching technology to convert the audio signal into high-frequency pulses, reducing power loss and heat generation. They are an excellent choice for applications where space and power efficiency are crucial.

Introduction to Multimeters

Multimeters are handheld devices that combine multiple measurement functions into a single instrument. They allow you to measure various electrical quantities, such as voltage, current, resistance, and frequency.

Equipped with different probes and settings, multimeters are invaluable for diagnosing issues, making adjustments, and ensuring the proper functioning of audio systems.

Types of Multimeters

There are two types of multimeters analog multimeters and digital multimeters. So,  have a look:

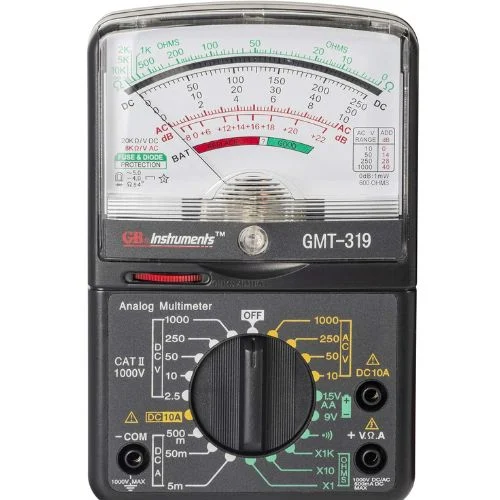

Analog Multimeters: Analog multimeters utilize a moving needle to indicate the measured quantity on a scale.

While they may lack some advanced features, analog multimeters are simple to use and offer a smooth reading response, making them suitable for basic measurements.

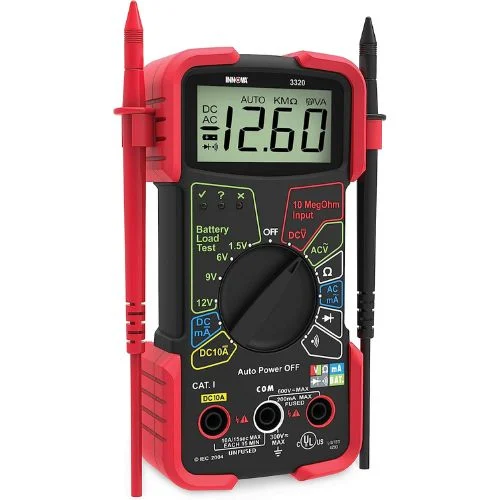

Digital Multimeters (DMM): Digital multimeters have a digital display that provides precise readings. They offer various measurement functions, including auto-ranging, data logging, and more advanced features.

Digital multimeters are commonly used for audio tuning due to their accuracy and additional capabilities.

Read more about5 Best Budget Auto Ranging Digital Multimeter

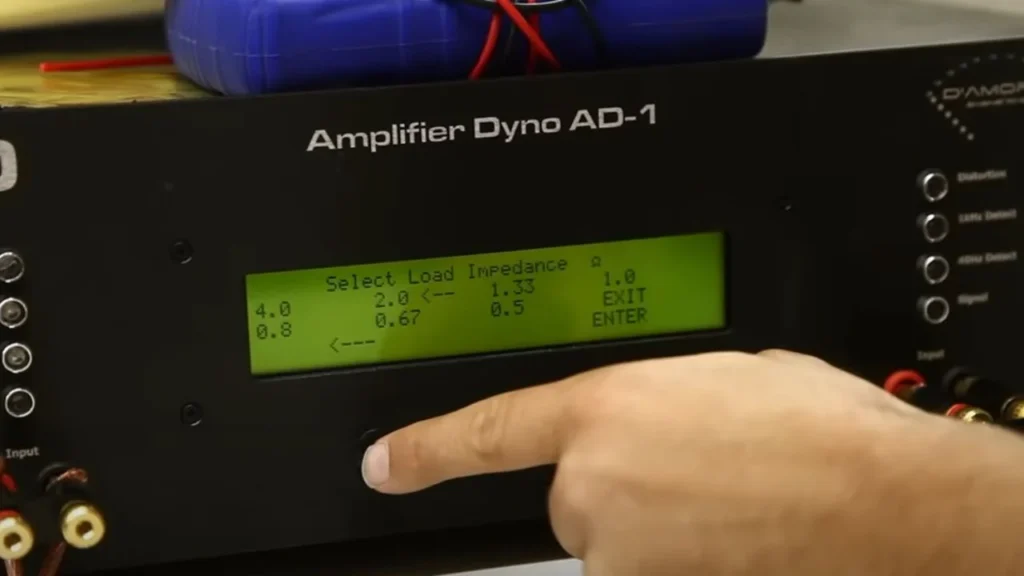

Preparations Before Tuning

it’s essential to make a few preparations to ensure a smooth and safe experience. Setting up a clean power source, establishing proper grounding, gathering the necessary tools, and prioritizing safety precautions will contribute to a successful tuning session.

Clean Power Source

A clean and stable power source is crucial for optimal amplifier performance. Before starting the tuning process, ensure that the power supply is free from electrical noise, voltage fluctuations, or any potential sources of interference.

This can be achieved by connecting the amplifier to a dedicated power outlet or using a power conditioner to filter out unwanted disturbances.

Proper Grounding and Electrical Connections

To maintain proper electrical integrity and avoid potential issues, ensure the Monoblock amplifier is grounded correctly. Good grounding provides a stable reference point for electrical signals and helps prevent noise and hum. Also, double-check all electrical connections, ensuring they are secure, corrosion-free, and adequately insulated.

Tools and Equipment

Gathering the necessary tools and equipment beforehand will make the tuning process more convenient and efficient. Some essential tools to have on hand include a multimeter (as discussed in Section 2),

  • set of screwdrivers
  • Power supply
  • Test leads
  • RCA cables

Having these tools readily available will help make adjustments, check connections, and troubleshoot if needed.

Safety Precautions

Working with electrical components requires safety precautions to avoid accidents or damage. Before starting, remember to:

  • Disconnect the Monoblock amplifier from the power source to prevent electric shocks or short circuits.
  • Allow the amplifier to cool down if it has been running recently, as some components may become hot during operation.
  • Avoid wearing jewelry or metal accessories that may accidentally come into contact with live electrical parts.
  • Read and follow the safety instructions provided by your specific amplifier model manufacturer.

How to tune a Monoblock amp with a multimeter?

If you want to tune a Monoblock amp with a multimeter properly then you should need to follow the given steps:

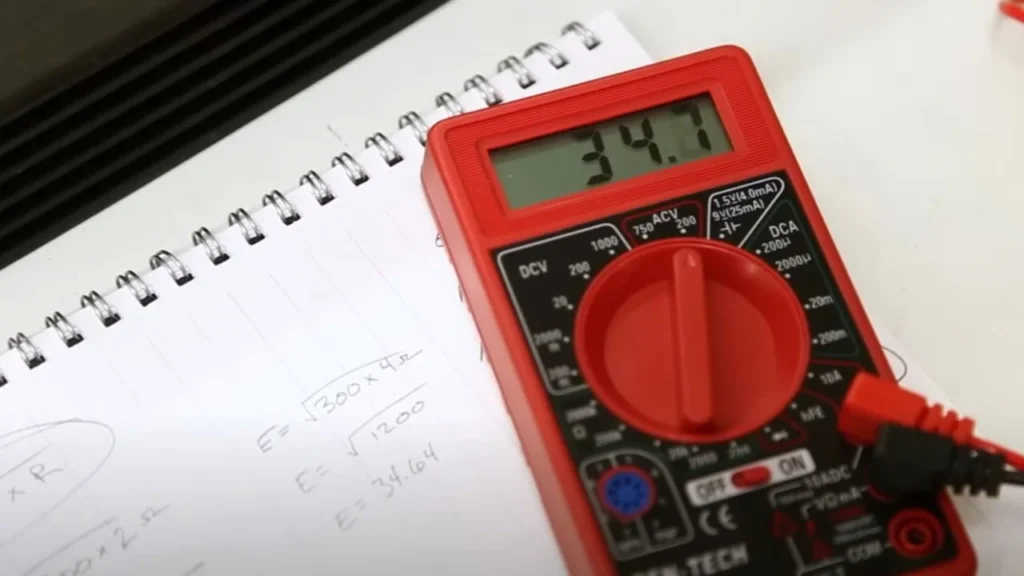

Step 1: Set Up Your Multimeter

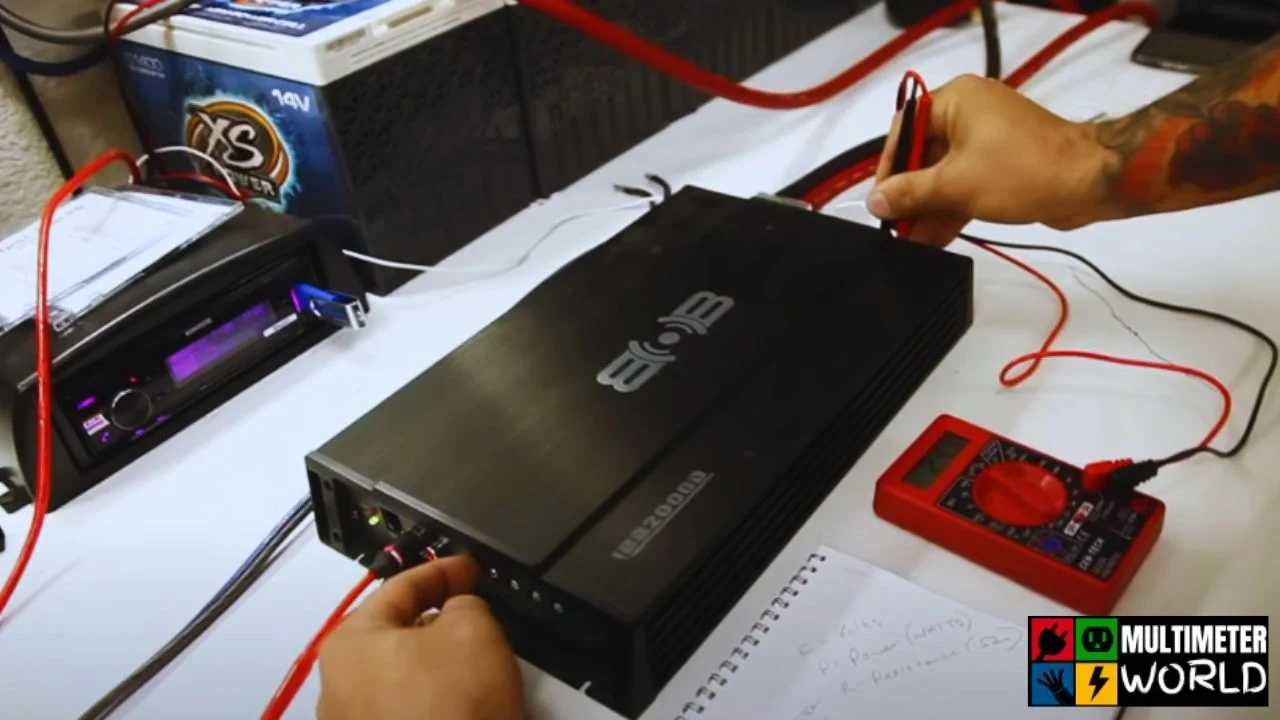

How to Tune a Monoblock Amp with a Multimeter

To begin, gather your multimeter and the necessary cables. Set the multimeter to the DC voltage measurement mode. Ensure that the multimeter’s probes are connected correctly, with the positive (red) probe in the positive terminal and the negative (black) probe in the negative terminal.

Step 2: Measure the Amplifier’s Voltage

With the amplifier turned on but with no audio signal playing, touch the multimeter probes to the amplifier’s speaker output terminals.

Make sure each probe is in contact with the correct terminal (positive to positive, negative to negative). Read and note the voltage measurement displayed on the multimeter.

Read more about8 Best Low Current Clamp Meter

Step 3: Set the Gain Control to Minimum

Now, locate the gain control on your Monoblock amplifier. Turn it all the way down to the minimum position. This step ensures that you start with a low signal level, preventing potential damage to your audio equipment.

Step 4: Play a Test Tone

Connect an audio source (such as a smartphone or music player) to the amplifier’s input. Choose a test tone or a music track with a constant and steady signal. Start playing the sound through your audio system.

Read more about How to test a speaker with a multimeter

Step 5: Adjust the Gain Control

Gradually increase the gain control on your Monoblock amp while keeping an eye on the multimeter’s voltage reading. Aim for the voltage to reach approximately 0.5 to 1 volt, depending on your specific amplifier and audio preferences. This adjustment ensures the amplifier receives an appropriate input signal for optimal performance.

Step 6: Fine-tune for Maximum Power

Continuing to play the test tone, slowly increase the gain control until you observe a slight increase in the multimeter’s voltage reading.

Be attentive and avoid pushing the gain too high, which may result in distortion or damage to your speakers. Find the sweet spot where the voltage is the highest without causing any warping.

Step 7: Secure the Settings

Once you’ve determined the optimal gain level, secure the settings on your amplifier by tightening any screws or knobs. This step helps to maintain the desired configuration and ensures that your audio system remains consistent.

Step 8: Reconnect everything and test the sound

If you’ve correctly set the gain on the amplifier, you can plug everything back in and test it. Make sure there aren’t any distortions or weak spots in the sound. It might be a good idea to go back and adjust the gain if you hear any problems.

Now you have no problem about how to tune a Monoblock amp with a multimeter.

Troubleshooting and Common Issues

After learning how to tune a Monoblock amp with a multimeter,, it’s not uncommon to encounter occasional issues with a Monoblock amplifier. Understanding common problems and having troubleshooting strategies can help us address these issues effectively. Let’s explore some common amplifier-related difficulties and ways to troubleshoot them.

No Sound or Low Sound Output

  1. Check the power connections and ensure the amplifier is receiving the proper voltage.
  2. Verify that the input cables are securely connected to the amplifier and audio source.
  3. Adjust the gain control and ensure it is set to an appropriate level.
  4. Inspect the speaker connections and wiring for any loose or faulty connections.
  5. Test the speakers with another audio source to rule out any speaker-related issues.

Distorted Sound or Clipping

  1. Reduce the gain control setting to prevent overdriving the amplifier.
  2. Check the source audio for any clipping or distortion.
  3. Ensure that the speaker impedance matches the amplifier’s specifications.
  4. Inspect the speaker cones and drivers for damage or misalignment.
  5. Adjust the crossover frequency and bass boost settings to avoid excessive bass that can cause distortion.

Excessive Heat or Overheating

  1. Check for proper ventilation around the amplifier and ensure no obstructions.
  2. Reduce the gain control or volume level to alleviate stress on the amplifier.
  3. Verify that the amplifier is not operating in direct sunlight or near heat sources.
  4. Consider installing a cooling fan or seek professional assistance if overheating persists.

Intermittent Connectivity or Signal Loss

  1. Check the input and output cables for any loose or damaged connections.
  2. Ensure the input source functions correctly and test with another source if possible.
  3. Clean the input and output connectors to remove any dirt or corrosion.
  4. Inspect the amplifier’s internal circuitry for any loose connections or faulty components.
  5. Seek professional assistance if the issue persists or need clarification on performing internal repairs.

FAQS

How do I adjust my amps with a multimeter?

Set your multimeter to measure voltage (V) in the appropriate range.

Connect the positive (red) probe to the amp’s positive terminal and the negative (black) probe to the negative terminal. Turn on your amp and play a test tone at your desired volume.

Measure the voltage across the positive and negative terminals using the multimeter. Adjust the amp’s gain control until the measured voltage matches the desired level.

What frequency should I set my amp to?

The frequency you should set your amp to depends on several factors, such as the type of audio you are working with and your specific requirements. However, I can provide some general guidelines for common scenarios.

Music playback: A flat frequency response is desired for most music playback situations. The amp should be set to a neutral or “0 dB” setting, where no specific frequency range is boosted or attenuated.

Speech and vocals: If you are amplifying speech or songs, it is recommended to emphasize the mid-range frequencies, typically around 1 kHz to 2 kHz. This helps enhance the clarity and intelligibility of the human voice.

Bass-heavy content: If you’re dealing with bass-heavy content, such as electronic dance music (EDM) or hip-hop, you should emphasize the lower frequencies. Boosting the bass frequencies around 60 Hz to 120 Hz can enhance the impact and thump of the low-end.

Acoustic instruments: When amplifying acoustic instruments, it’s essential to consider their natural frequency response. For example, if you’re strengthening an acoustic guitar, you should emphasize the mid-range frequencies where the guitar’s body resonance lies, usually around 200 Hz to 500 Hz.

What test tones to use for amp tuning?

When tuning your amp, it’s common to use test tones that cover the full range of human hearing, typically from 20 Hz to 20 kHz. Test tones are available in various formats, including audio files or dedicated test tone generators. Start with a low-frequency test tone (e.g., 20 Hz) and gradually increase frequency to ensure your amp handles the entire range accurately. If you are wondering how to tune a Monoblock amp with a multimeter, read my guideline, which is given above.

It’s also helpful to use test tones that match the type of audio you will be listening to, such as music or movie soundtracks. Remember to play the test tones reasonably to avoid potential damage to your speakers or hearing.

Conclusion

Learning how to tune a Monoblock amp with a multimeter is a straightforward process that ensures optimal performance. Remember to read the amplifier’s manual carefully and understand the recommended voltage range.

Use your multimeter to measure the output voltage and adjust the gain accordingly. With patience and attention to detail, you can fine-tune your Monoblock amp for a remarkable audio experience.
