How To Use Fluke Clamp Meter? An Expert Advice

By shafiq usama

How To Use Fluke Clamp Meter

As an electrical engineer, I love explaining how things like circuits and electronics work. I write on my blog to share simple explanations, reviews, and useful tips about the latest technology.

When it comes to electrical work, precision and safety go hand in hand. The Fluke clamp meter is an essential tool for every electrician. Unlike other clamp meters, this is a Fluke - a name synonymous with precision and reliability. Here I will explain how to use Fluke clamp meter effectively and safely. Whether you're an electrician or a novice, I've covered you. Here is your guide to Fluke clamp meters.

What is a Fluke Clamp Meter?

Fluke clamp meters are handheld devices used to measure electrical current. Its ability to measure current without disconnecting wires makes it a safer and more convenient option for electricians. The clamp can be clamped around a wire or conductor to measure the current flowing through it.

Advantages of Using Fluke Clamp Meters

Clamp meters from Fluke are known for their accuracy, durability, and ease of use. Electrical problems can be troubleshooted more efficiently with their quick and reliable measurements. Additionally, their rugged design ensures that they can withstand daily use in the field.

How to use fluke clamp meter to measure Current| 4 Easy Steps

Fluke clamp meters are primarily used to measure current. Knowing how to use your meter correctly when troubleshooting an electrical problem or assessing current flow in a circuit is crucial.

Step#1 Locating the Conductor

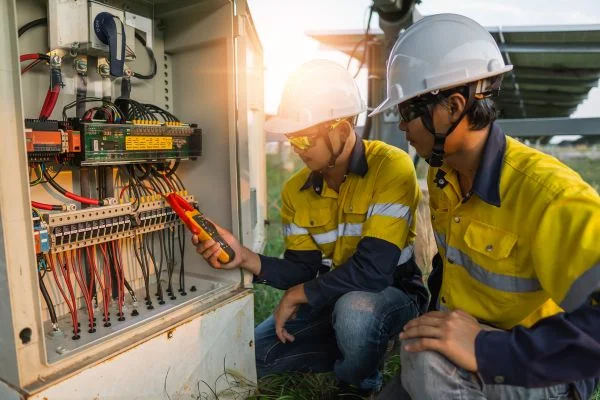

How To Use Fluke Clamp Meter

You must first locate the conductor carrying the current you want to measure. In most cases, you want to assess a wire, cable, or circuit as the conductor. For accurate measurements, make sure you identify it carefully.

Step#2 Opening the Clamp and Positioning It

Position the clamp meter's jaws around a single conductor of the circuit you wish to measure. For accurate readings, make sure that the jaws fully encircle the conductor without touching any other wires or conductive materials.

Step#3 Reading the Measurement

Upon positioning the clamp, your Fluke meter will display the current reading on its digital screen. The reading indicates how much current is flowing through the conductor at the moment.

Note the unit of measurement (usually amperes or milliamperes) and any additional information provided by the meter.

Step#4 Interpreting the Results

In order to understand an electrical system, you must be able to interpret the current measurement. Check the reading against the expected or normal current levels for the circuit.

When the measurement falls within the expected range, the circuit is functioning properly. Significant deviations may indicate a need for further investigation.

Check out which Fluke clamp meter is best for you if you are confused FLUKE 323 vs 324 Clamp meter Reviews & Comparison


How to use fluke clamp meter measuring Voltage| Step By Step

A Fluke clamp meter can also measure voltage, which is essential for assessing a circuit's electrical potential difference.

Step#1 Selecting the Right Range

The Fluke clamp meter should be set to the appropriate voltage range. For more accuracy, start with a higher range and gradually switch to a lower one. Select the 200V range if you expect the voltage to be around 120V.

Step#2 Zero the Meter

Press the "Zero" or "REL" button on the clamp meter before taking any measurements. In this way, residual magnetic fields or offsets in the device are compensated.

Step#3 Prepare the Wires

Make sure the wires you want to measure are exposed and accessible. De-energize the circuit and lockout/tag out the circuit if necessary.

Step#4 Open the Clamp Jaw

Position the clamp jaw of the meter around the conductor you want to measure. Any other wires or objects should not be inside the jaw when it is fully encircling the wire.

Step#5 Take the Reading

How To Use Fluke Clamp Meter

When the clamp meter is properly positioned, close the clamp jaw and observe the display. The meter's screen will display the voltage reading. Note the reading and any units (usually in volts).

Step#6 Recording and Documenting

Documenting your measurements is essential for future reference or reporting. Whenever possible, write down the voltage reading, the date, and the location of the measurement.

Take a look on Fluke 902 vs 325 – Best True RMS Clamp Meter Comparison and Reviews


How to measure resistance with Fluke clamp meter| Complete Guide

The ability of your Fluke clamp meter to measure resistance is particularly useful when diagnosing electrical circuit faults or assessing electronic components' health.

Step#1 Prepare Your Equipment

It's important to ensure your equipment is in good working order before you begin measuring resistance. Replace the battery in your Fluke clamp meter if necessary to avoid inaccurate readings. Make sure the meter's probes and leads are in good condition and properly connected.

Step#2 Select the Resistance

Select the resistance measurement function to measure resistance with your Fluke clamp meter. The Greek letter omega (Ω) denotes this on most Fluke models. Make sure the range setting is appropriate for the expected resistance value. Start with the highest range for accuracy and work your way down as needed.

Step#3 Zero the Meter (Optional)

Fluke clamp meters have a zeroing function compensating for test lead resistance. Press the zero button on your meter to nullify any lead resistance if it has this feature. As a result, resistance measurements are more accurate.

Step#4 Connect the Test Leads

The test leads need to be attached to the circuit or component you are testing in order to measure resistance. Prevent damage to your meter by de-energizing the circuit and ensuring no voltage is present.

You will connect the black lead to the common (COM) terminal and the red lead to the resistance (Ω) terminal on your Fluke clamp meter.

Step# 5 Take the Measurement

You are now ready to measure the resistance. Your clamp meter's jaws should be placed around the component or wire you are testing. Connect the jaws firmly to the test subject.

How To Use Fluke Clamp Meter

On the screen, the meter will display the resistance value. Especially when measuring low resistances, be patient and wait for the reading to stabilize.


How to Measure Frequency using Fluke clamp meter| 4 Step

Frequency measurement is an essential function of your Fluke clamp meter, particularly when working with devices operating at specific frequencies or analyzing electrical signals.

Step#1  Set the Clamp Meter to Frequency Mode

Select the frequency measurement mode on the Fluke clamp meter. The meter's dial or display usually displays an "Hz" symbol. The frequency measurement function may be accessed through a menu on some models.

Step#2  Open the Clamp and Prepare the Wires

Position the clamp jaw of the meter correctly for your measurement by opening the clamp jaw. Place the clamp around the conductor or wire whose frequency you want to measure. For accurate readings, ensure the wire is centered in the clamp.

Step#3  Take the Measurement

Press the measurement button or trigger once the clamp meter is properly positioned. A frequency value will be displayed on the meter's screen. Record a stable reading before recording it.

Step#4  Record and Interpret the Frequency

Make sure the frequency measurement is accurate. Frequency is measured in Hertz (Hz). Put the reading into context with your electrical system. An abnormal frequency may indicate that the electrical equipment is malfunctioning.


Safety Precautions

Safety should always be your top priority before learning how to use Fluke clamp meter whether you are measuring current, voltage, resistance, or frequency. Protect yourself and those around you by understanding and implementing the necessary safety precautions before using your Fluke clamp meter.

Importance of Safety in Electrical Work

Even seemingly minor mistakes can lead to serious accidents in the electric industry. The importance of safety in electrical work cannot be overstated. Protect yourself from electrical shock, burns, and fires by prioritizing safety.

Personal Protective Equipment (PPE)

Wearing appropriate Personal Protective Equipment (PPE) is a fundamental safety measure. Typically, these include insulated gloves, safety glasses, and protective clothing. With proper PPE, electrical work significantly reduces the risks associated with you and your team.

Creating a Safe Working Environment

It is essential to maintain a safe working environment. Make sure the area is free of potential hazards before beginning any electrical work. Maintain good conditions and properly ground your tools, equipment, and electrical systems. Maintain a clutter-free and well-lit workspace.


What are the features of Fluke clamp meters?

With your Fluke clamp meter's advanced features and functions, you can take your electrical measurements and analysis to the next level.

Peak Hold Function

Fluke clamp meters use the peak hold function to capture and display a changing signal's highest or lowest value over time. With this feature, you will get all critical data when dealing with fluctuating current or voltage.

Min/Max Recording

You can record a measured parameter's minimum and maximum values using the Min/Max recording feature on your Fluke meter. Monitoring electrical systems with this tool will help you identify trends and fluctuations that may indicate problems.

Data Logging Capabilities

Data logging capabilities are available on some Fluke clamp meters, which allow you to record and store measurement data for later analysis. It is especially useful for extended monitoring of electrical systems, enabling you to review data at your convenience and make informed decisions based on historical data.


Final Words

Electrical measurements can be made more accurate, versatile, and safe with the Fluke clamp meter. By following the setup procedures, understanding its features, and prioritizing safety, you can maximize the device's capabilities. Keep measuring, keep safe, and make a difference in electrical work. In order to easily measure current, voltage, resistance, and frequency, you must know how to use Fluke clamp meter.
