Electrical arcs can create sparks, heat, and even fire. Arc fault circuit interrupters (AFCIs) are designed to detect these arcs and quickly shut off the power before any harm is done. But what causes an arc fault breaker to trip? Let’s explore why AFCIs are essential and what can trigger a tripped AFCI breaker.
What is an Arc Fault Circuit Interrupter (AFCI)?
An AFCI breaker is a device that’s designed to detect electrical arc faults in the wiring and quickly shut off the power if it detects an arc. An arc fault occurs when electricity “jumps” from one wire or connection to another instead of flowing along its intended path. This can happen for several reasons, including worn insulation, faulty wiring, or damaged cords.
An arc fault can cause sparks, heat, and even fire. That’s why it’s essential to have an AFCI breaker installed in your home. It provides an extra layer of protection against potential fires caused by arcing electricity. I made the list of best budget multimeters you can check out.
What Causes an Arc Fault Breaker To Trip?
Arc fault circuit interrupters (AFCIs) are an essential safety feature in residential electrical systems. They are required by the National Electrical Code in all bedrooms, halls, and other living areas. AFCIs detect dangerous arcing conditions that could cause a fire and interrupt the circuit before anyone gets hurt. Here are two causes of arc faults that may trip an AFCI:
1. Loose Wiring Connections:
Loose wiring connections can cause arc fault circuit interrupters (AFCI) to trip repeatedly. When wires become loose at outlets, switches, or junction boxes, they can cause arcing and sparking, triggering the AFCI to trip. This problem can be prevented by regular inspections and tightening of connections.
2. Overloaded Circuits:
An overloaded circuit may trip repeatedly if too many devices draw excessive current. AFCIs detect overloads that can cause arcing, which can cause fires. Ensure that devices are distributed across different circuits and that they are not overloaded to prevent this.
3. Damaged Wiring or Insulation:
Worn-out or damaged wiring and insulation can result in intermittent arcing, causing AFCI trips. Inspect wiring for signs of wear, such as exposed wires or cracked insulation, and replace or repair damaged sections promptly.
4. Aging AFCI Breaker:
There is a possibility that AFCI breakers may become less sensitive or faulty over time, resulting in false trips. Check the AFCI breaker itself, ensuring it meets current safety standards if you’ve eliminated other causes.
5. Interference and EMI:
AFCI trips may be triggered by electromagnetic interference (EMI) from electronic devices or appliances. Reduce interference by relocating sensitive electronics or installing EMI filters.
6. Ground Faults:
In addition to detecting arcing faults, AFCIs can also detect ground faults. Ground faults should be addressed separately to prevent repeated trips.
7. Short Circuits:
A short circuit occurs when hot and neutral wires come into direct contact, causing excessive current flow. Fires can be prevented by AFCI tripping. Identify and repair short circuits in your wiring.
How to Troubleshoot an AFCI Breaker Trip
As we have mentioned above, An Arc-Fault Circuit Interrupter (AFCI) breaker is a particular type of circuit breaker that detects arcing faults in the wiring. It’s designed to protect people from electric shock and fires caused by electrical arcing.
If your AFCI breaker regularly trips, you may wonder why and how to address the problem. Read on for a step-by-step guide to troubleshooting your AFCI breaker trip!
Step 1: Check Your Appliances
The first thing you should do is check the appliances that are connected to the circuit with the tripping AFCI breaker. Make sure they are all functional and intact and have loose wires or cords. Also, inspect them for signs of overheating. If you find any questionable appliances, unplug them and plug them into another outlet to see if they still trip the AFCI breaker. If so, then it’s time to replace them.

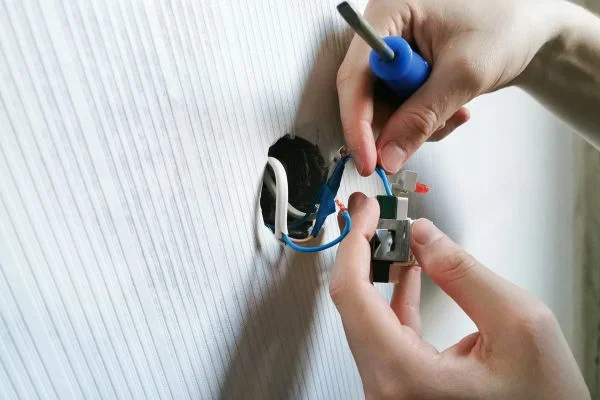

Step 2: Look for Loose Wires or Connections
If none of your appliances seem to be causing the problem, it’s time to check for loose wires or connections in your home’s wiring system. Look inside your junction boxes and ensure all wires are tightly secured and connected correctly.
Also, look for any exposed wire insulation; when insulation breaks down over time. It can cause arcing, which will trip an AFCI breaker. If you find any loose connections or exposed wires, call an electrician immediately. These can be serious safety hazards if left unaddressed!
Step 3: Inspect Your Outlets
There could also be something wrong with one of your outlets, causing it to short out and trip an AFCI breaker. Inspect all outlets in the house for frayed cords or loose connections between the outlet cover and the wall box behind it. You should also check any GFCIs (ground fault circuit interrupters) in use.
These devices can sometimes malfunction without warning signs. So you may need a professional electrician who can replace them safely and correctly if required. If you wanted to learn Fluke vs klein then,you can click here.
Step 4: Call a Professional Electrician
Suppose none of these steps have resolved your issue with tripping AFCI breakers. In that case, it’s time to call in a professional electrician who can diagnose and repair whatever underlying issue may be causing this problem.
They will be able to identify potential issues with wiring, circuits, appliances, etc. As well as advice on how best to prevent similar issues from happening again.
Bottom Line
Now you know what causes an arc fault breaker to trip. Arc faults can be dangerous because they create sparks which can lead to fires in homes with outdated wiring systems or faulty connections between wires and outlets. That’s why installing an arc fault circuit interrupter (AFCI) in your home is essential. It provides extra protection against arcing electricity by detecting any abnormal current levels that exceed safe thresholds and shutting off the power before any harm is done.
To prevent your AFCI breaker from tripping unnecessarily, ensure all wiring systems in your house comply with current safety codes and conduct regular inspections for signs of wear or damage on cords and other electrical components. If you suspect something is wrong with your home’s electrical system due to frequent power outages or lightning strikes, contact a licensed electrician immediately for further inspection and repairs if necessary!
