How does an electric fence work?
An electric fence works by passing an electrical current through a wire. When an animal or person touches the wire, they complete the circuit and receive a shock. The intensity of the shock depends on the power of the fence. A low-power fence may only give a tingling sensation, while a high-power fence can cause serious injury or even death.
Types of Electric Fences
There are two types of electric fences: AC and DC. AC fences are powered by mains electricity, while DC fences are powered by batteries or solar panels.
AC fences are more common because they are easier to install and maintain. However, DC fences are often used in remote areas where mains electricity is not available. Read on how to test bridge rectifier.
What you’ll need to test an electric fence?
Mostly the electric fences are low voltage so you won’t need any special equipment to test them. All you’ll need is a multimeter and some basic knowledge of how to use it. If you don’t have a multimeter, you can visit my list of best multimeters for home and auto use.
List of Tools:

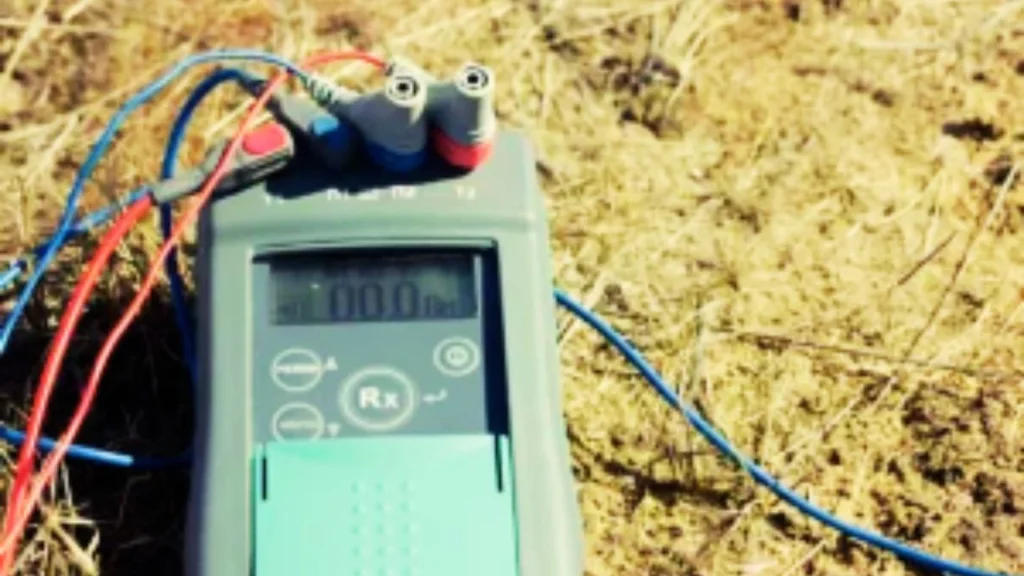

How to Test an Electric Fence with multimeter?
Step by Step Guide
How to test an electric fence with a multimeter? First of all, you need to identify the power source of your electric fence. Is it AC or DC? You can easily find this out by looking at the fence controller.
Once you know the power source, follow these steps to test the fence:
If the fence is AC powered:
- Use the multimeter to test the voltage at the fence controller. For this purpose, rotate the dial to VAC and touch the red test lead of the multimeter to the phase and the black test lead to the ground. The reading should be between 220 and 240 volts.
- If the voltage is too high, it could damage the fence controller.
- If the voltage is too low, it may not be enough to shock animals or people.
- On the fence line, the voltages are between 2000 volts to 8000 Volts. Basically, these are the pulses that rapidly reduce in case of any leakage (shock)
Read More: Best Fluke Multimeter For Electronics Hobbyist
If the fence is DC powered:
- Use the multimeter to test the voltage at the battery. Remember these are the voltages on the controller side, not on the fence.
- To test DC Voltages rotate the selector knob on the DC voltage. Now touch the red probe to the positive terminal of the controller and the black probe to the ground/negative terminal. The reading should be between 12 and 24 volts.
- DC fences have almost the same voltages but they run on batteries or solar systems. So, the testing procedure will be the same.
Common issues with electric fences and how to troubleshoot them
Here are some common issues that you may encounter with electric fences and how to troubleshoot them:
- Fence is not working: This could be due to a number of factors, including a power outage, a blown fuse, or a faulty controller.
- There is no shock in the fence: This could be due to low voltage, a loose connection, or a break in the fence.
- The fence is shocking too much: This could be due to high voltage, a faulty controller, or a broken wire.
Troubleshooting an electric fence
- You should check the power source first if any of these issues occur.
- Turn the power on and see if that solves the problem.
- If the power is on, check the fuse and replace it if necessary.
- In case the fuse is not the culprit, check the controller for loose connections or breaks.
- Once you have checked the power source and the controller, check the voltage at the fence line. I make the list of best budgets multimeter.
Safety Guide while testing an electric fence
There are multiple dangers associated with electric fences, so it’s important to take some basic safety precautions:
- The first and foremost important thing is to wear gloves and avoid touching the fence with your bare skin.
- While testing the fence, keep one hand in your pocket. Doing so will prevent you from touching the fence accidentally.
- Always use a good quality multimeter with higher CAT safety standards. Click here to know more about CAT Safety standards.
- Make sure the area around the fence is clear of any flammable materials. This includes things like dry grass, leaves, and wood.
- If you have any animals in the area, make sure they are away from the fence before you start testing it.
- Do not stand on wet ground or in puddles while testing the fence.
- Finally, always consult with a professional if you are unsure about anything. They will be able to help you troubleshoot the problem and keep you safe.
Testing an electric fence is not a difficult task, but it’s important to take some safety precautions.
Read More: Best All-Around Fluke Multimeter
Safer and More Effective Alternatives
Instead of a multimeter, there are safer and more effective ways to test your electric fence:
Electric Fence Tester: This is the recommended tool for the job. Specifically designed for electric fences, it measures the fence’s output in kilovolts (kV) and can often detect issues like grounding problems.
Visual Inspection: Regularly walk the fence line to check for any breaks, loose wires, or vegetation touching the wires. These can cause the fence to malfunction.
Touch Test (with Caution!): This method should only be used with extreme caution and proper knowledge. Wearing thick rubber gloves and boots, briefly touch the fence with a piece of long, nonconductive material like a dry wooden stick. A slight tingle indicates the fence is functioning. However, never directly touch the fence yourself, and avoid this method if you’re uncomfortable or unsure.

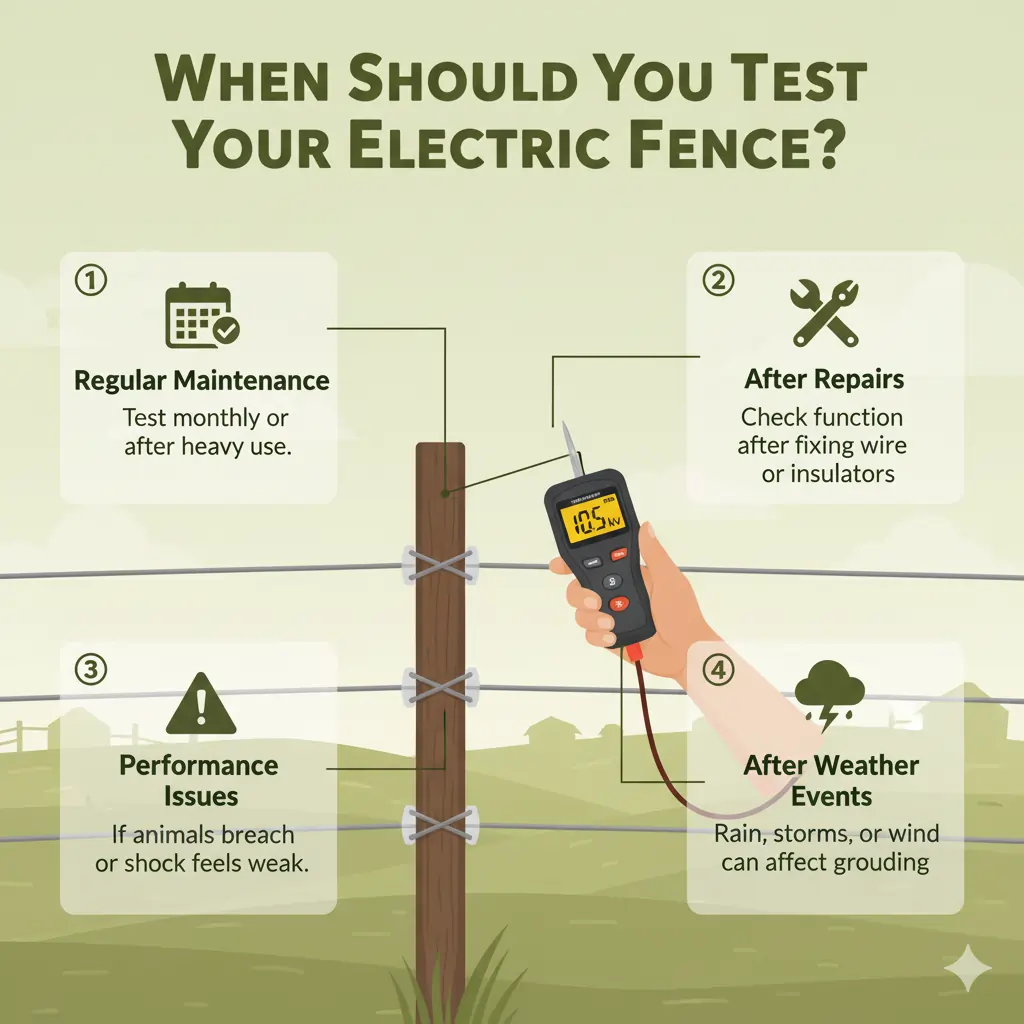

When to Test Your Electric Fence
Here are some key situations where testing your electric fence is crucial:
Regular Maintenance: It’s recommended to test your fence periodically, the frequency depending on factors like weather conditions and animal pressure on the fence. Generally, a monthly check is a good starting point.
After Repairs: If you’ve made any repairs to the fence line, testing ensures everything is functioning correctly after the fix.
Performance Issues: If you suspect animals are breaching the fence or the fence doesn’t deliver a shock, testing helps diagnose the problem.
Weather Events: Heavy rain, storms, or strong winds can damage the fence or disrupt its grounding. Testing after such events is advisable.
Benefits of Maintaining a Properly Functioning Electric Fence
A well-maintained electric fence offers several advantages:
Effective Animal Control: A functional fence deters livestock from escaping or unwanted animals from entering your property.
Improved Animal Safety: A properly functioning fence prevents animals from injuring themselves by getting entangled in the fence.
Peace of Mind: Knowing your fence is working correctly gives you peace of mind about your property and animals’ security.
Additional Safety Tips for Electric Fences
Here are some additional safety precautions to keep in mind when dealing with electric fences:
Post Warning Signs: Clearly visible signs warn people and animals of the electric fence’s presence.
Turn Off Power When Working on the Fence: Always disconnect the power source from the fence before making any repairs or adjustments.
Keep Children and Pets Away: Supervise children and pets near the fence to prevent accidental contact.
Grounding is Crucial: Proper grounding is essential for the fence’s functionality and safety. Ensure your grounding system is in good condition.
By following these guidelines and using the right tools for testing, you can ensure your electric fence functions effectively and safely. Remember, a well-maintained electric fence is a valuable tool for animal control and property security.
Conclusion:
Electric fences are a great way to keep animals and people out of your yard or garden. They can be used for both residential and commercial purposes. Test your electric fence regularly to ensure it is in good working order. Those of you still with me will now know how to test an electric fence with a multimeter. If you have any questions, feel free to leave a comment below.
Happy fencing!
FAQs-Frequently Asked Questions
How often should I test my electric fence?
You should test your electric fence at least once a month. This will help to ensure that it’s working properly and that there are no breaks in the fence.
Is it safe to test an electric fence with a multimeter?
Yes, it is safe to test an electric fence with a multimeter if you follow the safety precautions.
What should I do if my electric fence is not working?
If your electric fence isn’t working, you should first check the power source. If it’s off, turn it on. Power is on, so check the fuse and replace it if necessary. In the case that the fuse is not the problem, you should call an electrician.
