Understanding how to test GM 5.3 coil packs with a multimeter is fundamental, so every automotive enthusiast should have this skill at their fingertips. To ensure efficient combustion and smooth engine performance, your vehicle's ignition system relies on the coil pack to deliver high-voltage sparks to the spark plugs. Understanding the coil pack and its role in engine performance is necessary before learning how to test gm 5.3 coil pack with multimeter.

What is a Coil Pack?

Coil packs, also known as ignition coils, convert low-voltage power from your vehicle's battery into high-voltage sparks. The engine cylinders require these sparks to ignite the fuel-air mixture. The GM 5.3 uses a high-energy ignition (HEI) system, which uses coil packs instead of distributors to distribute power to the spark plugs.

Role of the GM 5.3 Coil Pack

A GM 5.3 coil pack is crucial to ensuring that your engine runs smoothly and efficiently. The spark plug produces the electrical spark that ignites combustion in the engine's cylinder by jumping across its electrodes. Coil packs ensure precise timing, resulting in better fuel economy, reduced emissions, and improved overall performance.

Bad Symptoms of GM 5.3 Coil Pack

You should take immediate action if you notice these bad symptoms in coil pack 5.3 below.

1. Rough Engine Idling

An initial symptom of a failing 5.3 coil pack is a rough engine idle. When the engine is idling or in neutral, there is a noticeable and irregular vibration in the vehicle. A malfunction in the coil pack can cause misfires during idle, causing the rough idling sensation.

2. Reduced Fuel Efficiency

5.3 coil packs with reduced fuel efficiency are also an indicator of a problem. Incomplete combustion may result from a malfunctioning coil pack, causing the engine to misfire or not ignite fuel properly. Fuel expenses can increase over time as a result of this inefficiency.

3. Decreased Acceleration and Power

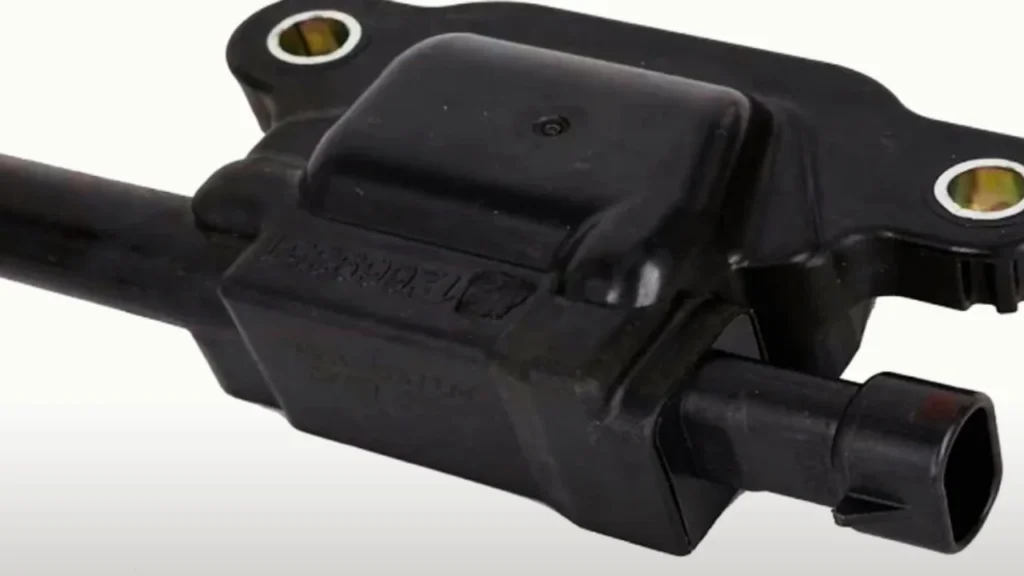

Bad Symptoms of GM 5.3 Coil Pack

Faulty coil packs can also decrease acceleration and power. The engine will only perform at its best if the coil pack provides a consistent and strong spark to the spark plugs. As a result, acceleration can be sluggish and engine power can be reduced.

4. Illuminated Check Engine Light

Onboard diagnostics often illuminates the check engine light on the dashboard when a 5.3 coil pack malfunctions. It indicates that there is a problem with the engine. With an OBD-II scanner, you can retrieve error codes that identify the specific problem, which is often a coil pack issue.

5. Engine Misfires and Stuttering

Misfires and stuttering are some of the most obvious symptoms of a bad 5.3 coil pack. A misfire occurs when the spark plugs fail to ignite the air-fuel mixture in the cylinders as they should. The result is a jerking or stuttering sensation, often accompanied by lack of power and increased exhaust emissions.

Preparing for Testing the 5.3 Coil Pack

Preparations and safety measures are essential before testing your GM 5.3 coil pack.

Safety Precautions

Safety should always be the top priority. If the engine has recently been running, shut it off and let it cool. During testing, disconnect the battery to prevent electrical shocks. Wear appropriate safety gear, such as gloves and safety glasses, and always work in a well-ventilated area to avoid inhaling harmful fumes.

Tools and Equipment Needed

  • Digital multimeter
  • Ratchet set
  • Spark plug socket

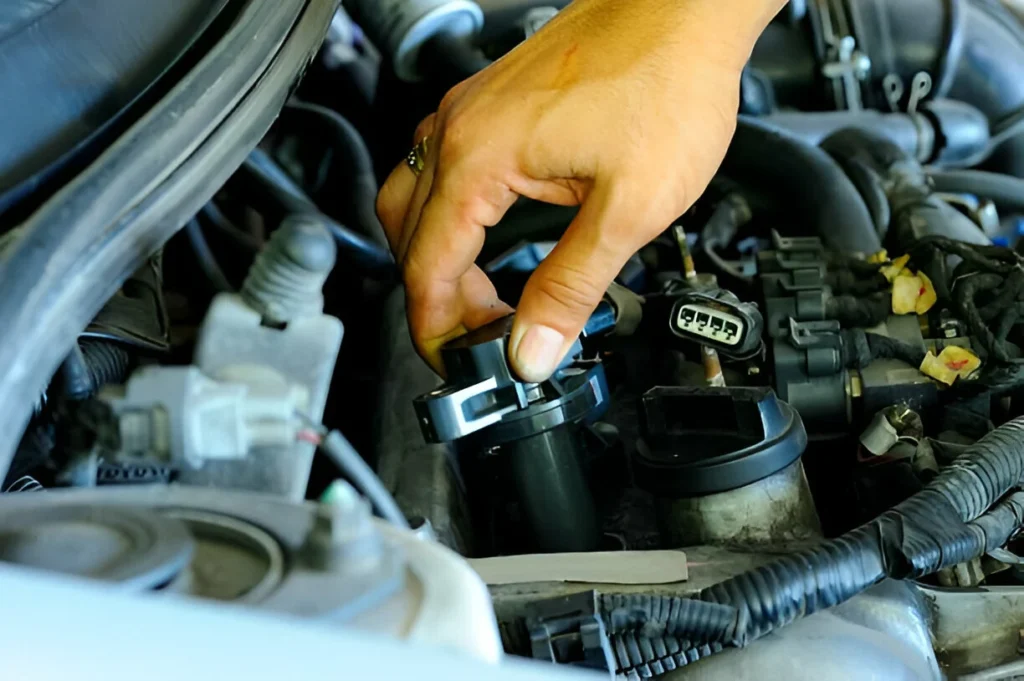

Identifying the Coil Pack

Preparing for Testing the 5.3 Coil Pack

Before you begin testing, you must locate the GM 5.3 coil pack. In most vehicles, the coil pack is located near the engine's intake manifold or on top of it. To locate it, consult your vehicle's service manual or online resources. The first step in testing is identifying the coil pack so you don't work on the wrong part.

How to test gm 5.3 coil pack with multimeter?

A GM 5.3 coil pack has two coils, one primary and one secondary. Each coil should be tested one by one with a multimeter. Here's how you can do it.

1-Testing the Primary Coil in a 5.3 Ignition Coil

To test the 5.3 coil pack, you must first test the primary coil. The following steps are essential:

Step#1 Setting Up the Multimeter

You need a digital multimeter to measure the resistance (ohms) in the primary coil of a 5.3 ignition coil. Choose the resistance or ohms setting on the multimeter. The primary coil should have resistance between 0.5 to 2.0 ohms.

Step#2 Connecting the Multimeter Leads

Locate the Primary Coil Terminals: Locate the two terminals on the ignition coil; the primary coil is usually the smaller coil with fewer windings.

Connect the Multimeter Leads: Connect the multimeter probes to the primary coil terminals. Red probes connect to positive terminals, and black probes connect to negative terminals.

Hold Steady: Avoid any accidental movement or disconnection during the test by maintaining a stable connection between the probes.

Step#3 Measuring the Resistance

As soon as the leads are correctly connected, the multimeter will display the resistance value in ohms. It is assumed that the primary coil is functional if the reading on the multimeter is the same as you expect.

2-Testing the Secondary Coil in a 5.3 Ignition Coil

A multimeter can be used to test the secondary coil of a 5.3 coil pack. The following steps will ensure that you can perform the test accurately:

Step#1 Access the Secondary Coil

Access the secondary coil within the coil pack by removing any necessary components. The coil pack may need to be removed from the engine or electrical connectors may need to be disconnected.

Step#2 Set the Multimeter's Range

Select the appropriate resistance range on the multimeter. For most coil tests, a range of 5 to 20kΩshould suffice. Start with the higher range and adjust as needed

Step#3 Connect the Multimeter Leads

Take the red (positive) and black (negative) probes from the multimeter. The red probe should be connected to the terminal or wire leading to the secondary coil. Connect the black probe to the ground or a good electrical ground point on the vehicle.

Step#4 Record the Resistance Value

The resistance value displayed on the multimeter should be read. The secondary coil could be malfunctioning if the reading falls significantly outside this range. With this, you are done with your learning process about how to test gm 5.3 coil pack with multimeter. If you read the additional checks section, I hope you will never need professional assistance.

Additional Checks for GM 5.3 Coil Pack

Your vehicle's ignition system should be checked and inspected in addition to testing the GM 5.3 coil pack with a multimeter.

Spark Plug Wires

How to test gm 5.3 coil pack with multimeter

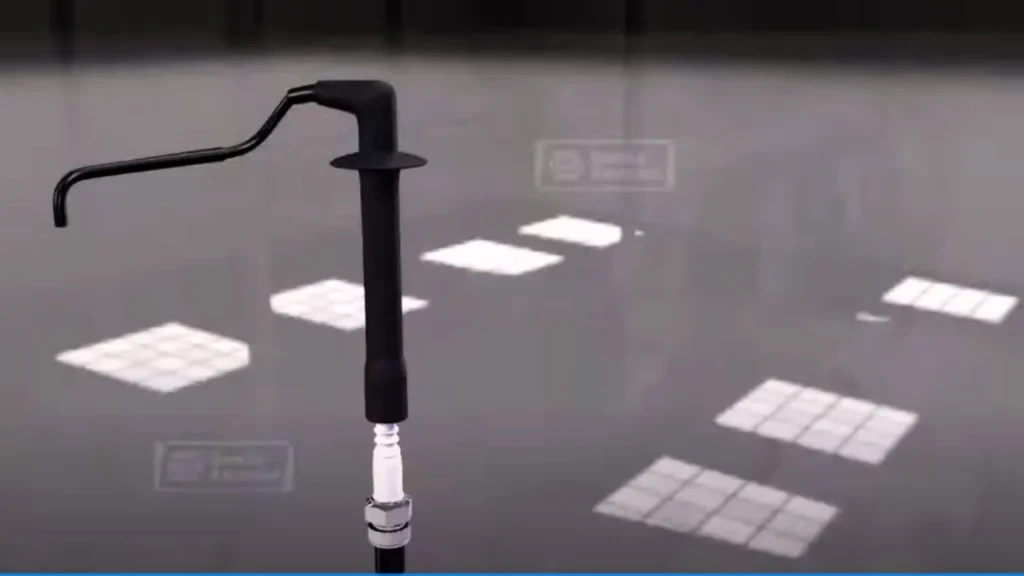

Check the spark plug wires connected to the coil pack. Check for signs of wear, cracks, or damage. A damaged wire can result in poor electrical connectivity, misfires, and poor engine performance. It's a good idea to replace the wires if you notice any issues. Connect the coil pack and spark plugs securely.

Grounding Connections

Make sure the grounding connections around the coil pack are secure. In order for the coil pack to function optimally, these connections ensure that the electrical current flows correctly. Grounding wires should be corrosion-free, securely attached, and in good condition. It is possible for corrosion to impede electrical flow and cause performance issues with coil packs.

Wiring Harness Inspection

The wiring harness attached to the coil pack should be inspected for signs of fraying or damage. The coil pack's performance can be affected by a damaged wiring harness. You should replace any damaged sections of the harness or the entire harness if necessary. When the wiring harness is well maintained, the coil pack receives a consistent flow of electrical current.

Final Words

Now you know how to test gm 5.3 coil pack with multimeter, I hope you can test your GM 5.3 coil pack easily. When working with electrical components, wear safety gloves and goggles. Adding an additional check will help you complete your testing. Sometimes your coil pack is working fine but the spark plug wires are bad and it cannot function properly.
