Nobody wants to find a broken wire, but it happens. If you have a multimeter, you can find a break in a wire by measuring the resistance or by checking continuity. Although it's a simple process but you have to be careful. Otherwise, you'll end up with a bigger problem. So, here I will tell you how to find a broken wire with a multimeter in step by step guide.

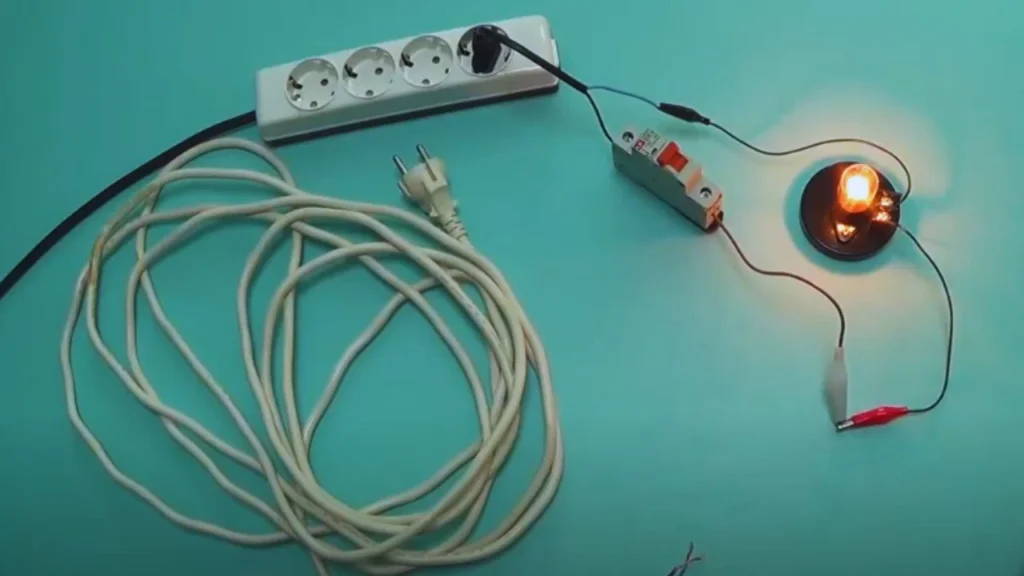

Why do you need to find a broken wire?
There are many reasons why you might need to find a broken wire. Maybe you're troubleshooting an electrical problem in your home, or maybe you're trying to find the source of a short circuit in your car. Either way, a multimeter can help you locate the break in the wire.
Before starting our testing let's have a look at what is a multimeter and its common applications.
What is a multimeter?
A multimeter is an electronic testing device that is used to measure voltage, current, and resistance. It can also be used to test continuity and check for breaks in wires. A multimeter is a handy tool to have around the house or workshop.
Applications of a multimeter
There are many different ways to use a multimeter. Here are some of the most common applications:
- Checking circuit breakers and fuses
- Troubleshooting electrical problems
- Testing batteries and charging systems
- Measuring voltage, current, and resistance
- Checking continuity
- Testing diodes and transistors
You can also choose a multimeter for our list of best multimeters for electrical testing's. However if you're automotive technician and want to know how to test automotive wiring with multimeter then click here. You can also visit our list of best automotive multimeters for this purpose.
How to find a broken wire with a multimeter?
Now that you know what is a multimeter let's move on to our main topic which is how to find a broken wire with a multimeter. You can also use a wire break detector but it is only for electricians or technicians who trace electrical circuit frequently. For this, You will use the continuity or resistance measurement function of the multimeter.
Testing a broken wire with a multimeter in 5 easy steps
Step 1: Turn off the power
Before you start testing for continuity, you need to make sure that there is no power running through the circuit. Otherwise, you could get electrocuted. To do this, locate the breaker box and turn off the breaker that controls the circuit you're testing.
Step 2: Set your multimeter to resistance mode
Most multimeters have a dial or switch that you can use to select the type of measurement you want to take. For this test, you'll want to set the dial or switch to the resistance or "ohms" position.
Step 3: Connect the leads to the wires
Attach the black lead to one end of the wire and the red lead to the other end. If you're testing for continuity in a circuit, you'll need to connect the leads to the two points in the circuit or wire that you want to test.
Step 4: Take a reading
Once the leads are connected, the multimeter will display a reading. If the wire is not broken, the reading will be close to zero ohms. If there is a break in the wire, the reading will be infinite or "
Step 5: Check for continuity test
If the reading on the multimeter is close to zero ohms, that means there is continuity and no break in the wire. If the reading is infinite or "OL" (for overload), that means there is a break in the wire. In case of continuity or no break, the multimeter will beep.
So, this is how you can find a broken wire with a multimeter. Most multimeters have a continuity check function which makes this task even easier. I hope this guide was helpful and you were able to find the break in the electrical wire.
7 Tips for using a multimeter safely
Nothing can be more frustrating than dealing with electrical problems. But before you start testing for continuity or voltage, there are a few things you need to keep in mind to stay safe.
Here are 7 tips for using a multimeter safely:
1. Always turn off the power before you start testing.
2. Make sure you're using the right setting on the multimeter.
3. Don't touch the leads with your bare hands.
4. Be careful not to drop the multimeter.
5. Don't leave the leads connected for too long.
6. Always disconnect the leads before you turn off the power.
7. Use caution when working around live wires.
If your doing this test on a car then always check the positive wire because the negative wire will always be grounded. But if you're doing these electrical connections testing at the home then check two wires (live & neutral).
Common mistakes people make when using a multimeter
Nobody's perfect and we all make mistakes. But when you're dealing with electricity, even a small mistake can be dangerous. Here are some common mistakes people make when using a multimeter:
- Normally, people don't know how to use a multimeter and they just start testing without reading the manual. This can be dangerous as you can make a mistake and get electrocuted.
- Another common mistake is not turning off the power before you start testing. This is a safety hazard as you could get electrocuted if there's a live current running through the circuit.
- The round ground port on the multimeter is also frequently misused. People think that they can just touch the ground port with their fingers to complete the circuit. But this is dangerous as you could get electrocuted if there's a live current running through the port.
- Another mistake people make is not disconnecting the leads before they turn off the power. If you forget to do this, there's a risk of sparks and damage to the multimeter.
- Poorly soldered wire connections need to be insulated. But most people after finding the broken wire don't use electrical tape or any other insulation to isolate the area. This can cause future problems.
- Testing components or wire using a multimeter without knowing the proper function can damage the multimeter. If there are minor wire breaks in an electrical outlet then you can check voltage supply.
- If there are no voltages then the circuit useless and needs to be repaired. Wire splices need to be accurate to avoid future same issues. Wire splice is a commonly used technique to join two or more electrical wires.
A multimeter is an essential tool for anyone working with electricity. It can be used to test for continuity, voltage, and resistance. When using a multimeter, it's important to follow safety guidelines to avoid injuries. Common mistakes people make when using a multimeter include not reading the manual, not turning off the power before testing, and forgetting to disconnect the leads before turning off the power. By following these tips, you can use a digital multimeter safely and effectively to check broken wires.
I hope this guide was helpful and now you know how to find a broken wire with a multimeter. Share this with your friend and family so they can also use it and stay safe! Have a great day!
FAQs-Frequently Asked Questions
Why do Broken wires cause fires?
Broken wires are one of the most common causes of residential fires. When a wire breaks, it can create a spark that can ignite nearby combustible material, such as wood or paper. In some cases, the sparks may be small and barely visible. But if they come in contact with the right materials, they can cause a fire that can spread quickly and destroy your home.
Can you insulate a wiring joint with electrical tape?
For temporary repairs, you can use electrical tape to insulate a wiring joint. However, it's not a permanent fix and should only be used until you can get the joint repaired by a qualified electrician.
What is the difference between AC and DC electricity?
AC (alternating current) and DC (direct current) are two types of electrical current
Taping the joint will not insulate it and may actually make the problem worse. The wire needs to be replaced or repaired by a qualified electrician.
Can a digital multimeter be used to test for voltage in a circuit?
Yes, a digital multimeter can be used to test for voltage in a circuit. To do this, you'll need to set the multimeter to the "voltage" setting and touch the probes to the two points in the circuit where you want to measure the voltage. You can also visit my blog on electrical testing for a detailed view.
